G8-S0/G3-S0-I

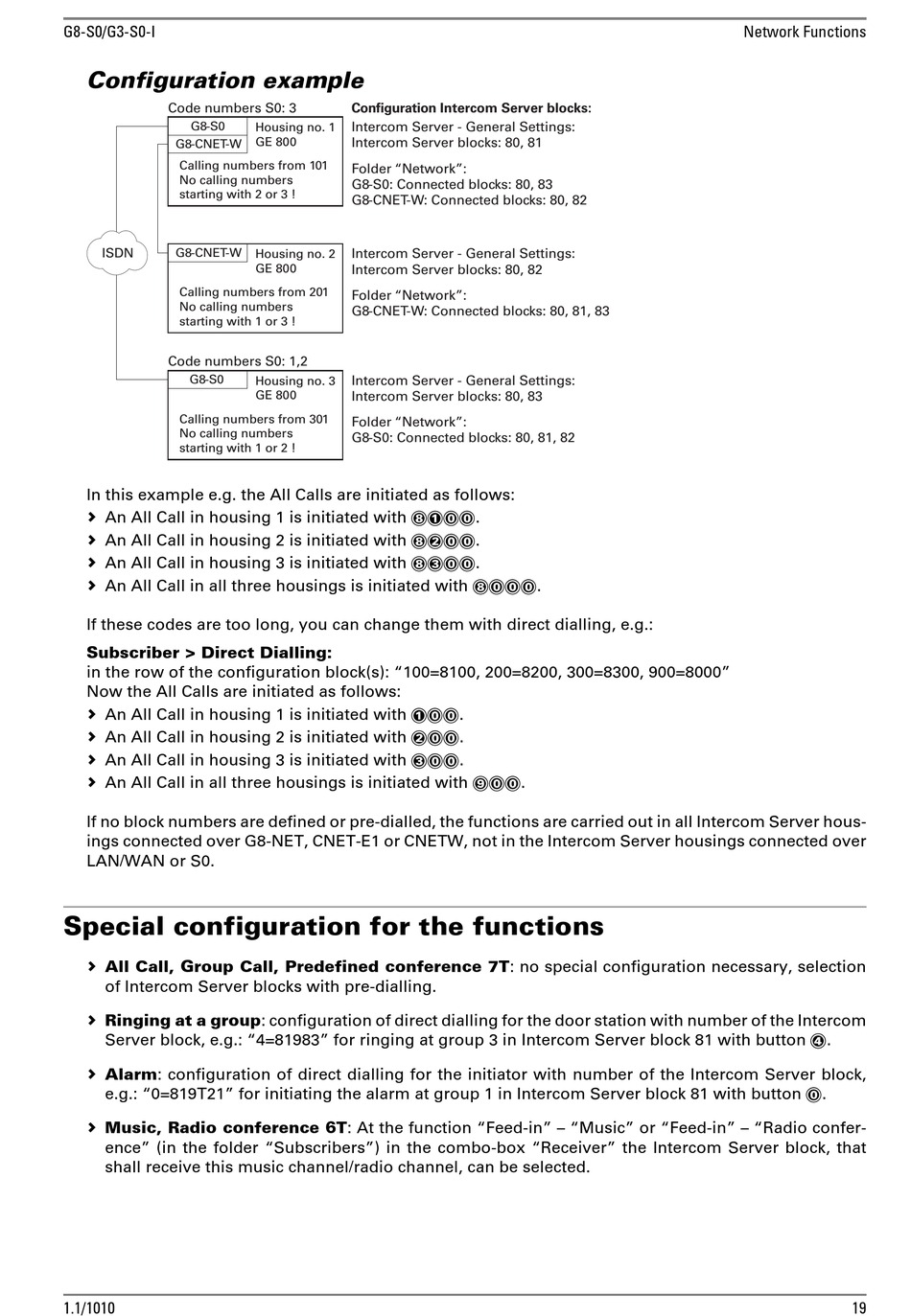

Configuration example
Code numbers S0: 3
G8-S0
G8-CNET-W
Calling numbers from 101
No calling numbers
starting with 2 or 3 !
ISDN
G8-CNET-W
Calling numbers from
No calling numbers
starting with
Code numbers S0: 1,2
G8-S0
Calling numbers from
No calling numbers
starting with
In this example e.g. the All Calls are initiated as follows:
 An All Call in housing 1 is initiated with 8100.
 An All Call in housing 2 is initiated with 8200.
 An All Call in housing 3 is initiated with 8300.
 An All Call in all three housings is initiated with 8000.
If these codes are too long, you can change them with direct dialling, e.g.:
Subscriber > Direct Dialling:
in the row of the configuration block(s): "100=8100, 200=8200, 300=8300, 900=8000"
Now the All Calls are initiated as follows:
 An All Call in housing 1 is initiated with 100.
 An All Call in housing 2 is initiated with 200.
 An All Call in housing 3 is initiated with 300.
 An All Call in all three housings is initiated with 900.
If no block numbers are defined or pre-dialled, the functions are carried out in all Intercom Server hous-
ings connected over G8-NET, CNET-E1 or CNETW, not in the Intercom Server housings connected over
LAN/WAN or S0.

Special configuration for the functions

 All Call, Group Call, Predefined conference 7T: no special configuration necessary, selection
of Intercom Server blocks with pre-dialling.
 Ringing at a group: configuration of direct dialling for the door station with number of the Intercom
Server block, e.g.: "4=81983" for ringing at group 3 in Intercom Server block 81 with button 4.
 Alarm: configuration of direct dialling for the initiator with number of the Intercom Server block,
e.g.: "0=819T21" for initiating the alarm at group 1 in Intercom Server block 81 with button 0.
 Music, Radio conference 6T: At the function "Feed-in" – "Music" or "Feed-in" – "Radio confer-
ence" (in the folder "Subscribers") in the combo-box "Receiver" the Intercom Server block, that
shall receive this music channel/radio channel, can be selected.
1.1/1010
Configuration Intercom Server blocks:
Intercom Server - General Settings:
Housing no. 1
GE 800 Intercom Server blocks: 80, 81
Folder "Network":
G8-S0: Connected blocks: 80, 83
G8-CNET-W: Connected blocks: 80, 82
Intercom Server - General Settings:
Housing no. 2
GE 800
Intercom Server blocks: 80, 82
201
Folder "Network":
G8-CNET-W: Connected blocks: 80, 81, 83
1 or 3 !
Intercom Server - General Settings:
Housing no. 3
GE 800
Intercom Server blocks: 80, 83
301
Folder "Network":
G8-S0: Connected blocks: 80, 81, 82
1 or 2 !
Network Functions
19
