Commend C-WS201VICA Quick Start Manual

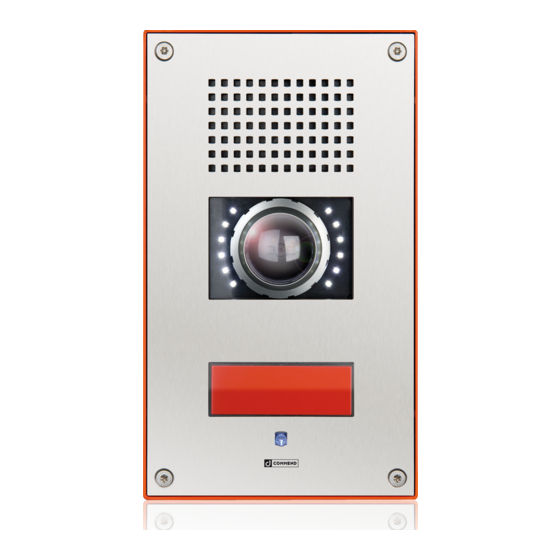

IP Stations WS 201VICA/WS 211VICA

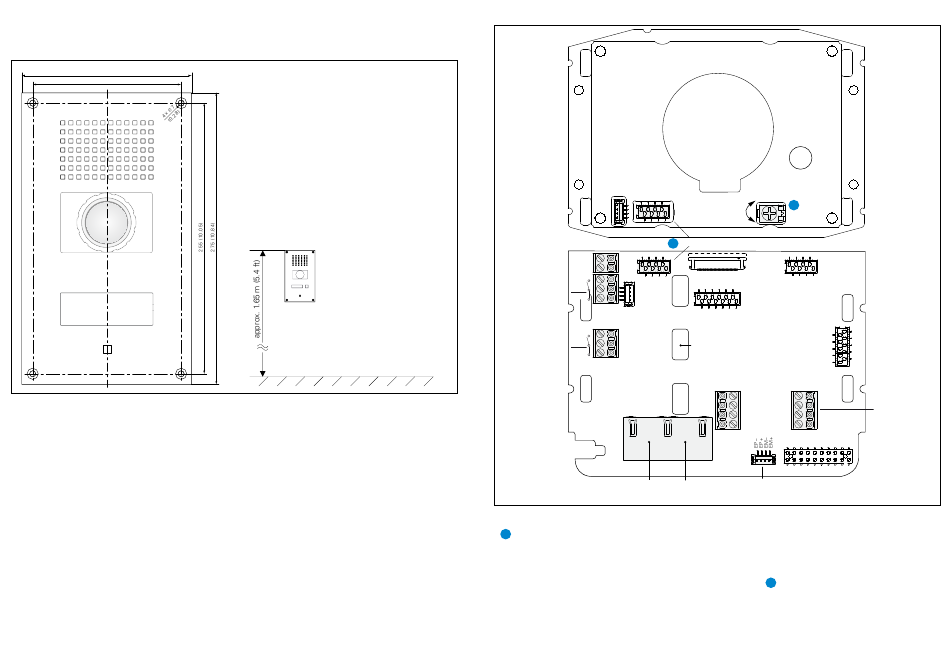

Dimensions and recommended mounting height
Measurements in mm (in), not scale! Front panel thickness: 3 mm (0.12 in)
160 (6.3)
140 (5.5)
Extent of supply
• Station
• Mounting screws (4 x Torx TR 25 security countersunk screws, M5 x 10)
• Snap-on ferrite (to be attached to IP uplink Ethernet cable)
• Short reference
Cleaning instructions
The device may only be cleaned with cleaning agents for stainless steel. Do not use cleaning agents
containing chlorine or isopropanol.
Safety instructions
• This device shall be installed or replaced by trained and qualified personnel only.
• Do not install the device on unstable walls or on surfaces which cannot support the device's weight.
• Only use recommended tools when installing the device.
• Only accessories that comply with the device's technical specifications shall be used.
• All connected circuits shall fulfil the requirements for Safety Extra Low Voltage (SELV) and Limited
Power Source (LPS) according to IEC/EN 60950-1.
• Use shielded Ethernet cables only.
• Before using the device, ensure all cables are correctly connected and not damaged.
• Disconnect the power supply (PoE or DC) for any maintenance of the device.
• Allow the device to cool down completely before touching parts inside.
• Do not make any unauthorised modifications to the device.
Connection diagram
Finished floor
Camera illumination and heating control
The camera illuminator and heating control are connected to the main board of the subscriber
1
via the expansion bus. In CCT 800, the device is shown with an additional EB2E2A device.
• Use OUT 1 on the EB2E2A to switch the camera illuminator on and off.
It is also possible to use OUT 1 as attendant contact, e.g. to switch on the camera illuminator
at call setup.
To dim the camera illuminator, use the potentiometer
• Use OUT 2 on the EB2E2A to switch the camera heating on and off.
OUT 2
LED brightness
+
–
1
expansion bus
OUT 2
OUT 2
OUT 2
OUT 1
slot for inserting
button label
OUT 1
IN 1
IN 2
IN 3
GND
handset:
IP uplink IP downlink
microphone
+ PoE (Axis camera
loudspeaker
+ PoE)
2
MUTE
external
GND
loudspeaker
module
LINE–
LINE+
2
on the camera board.
