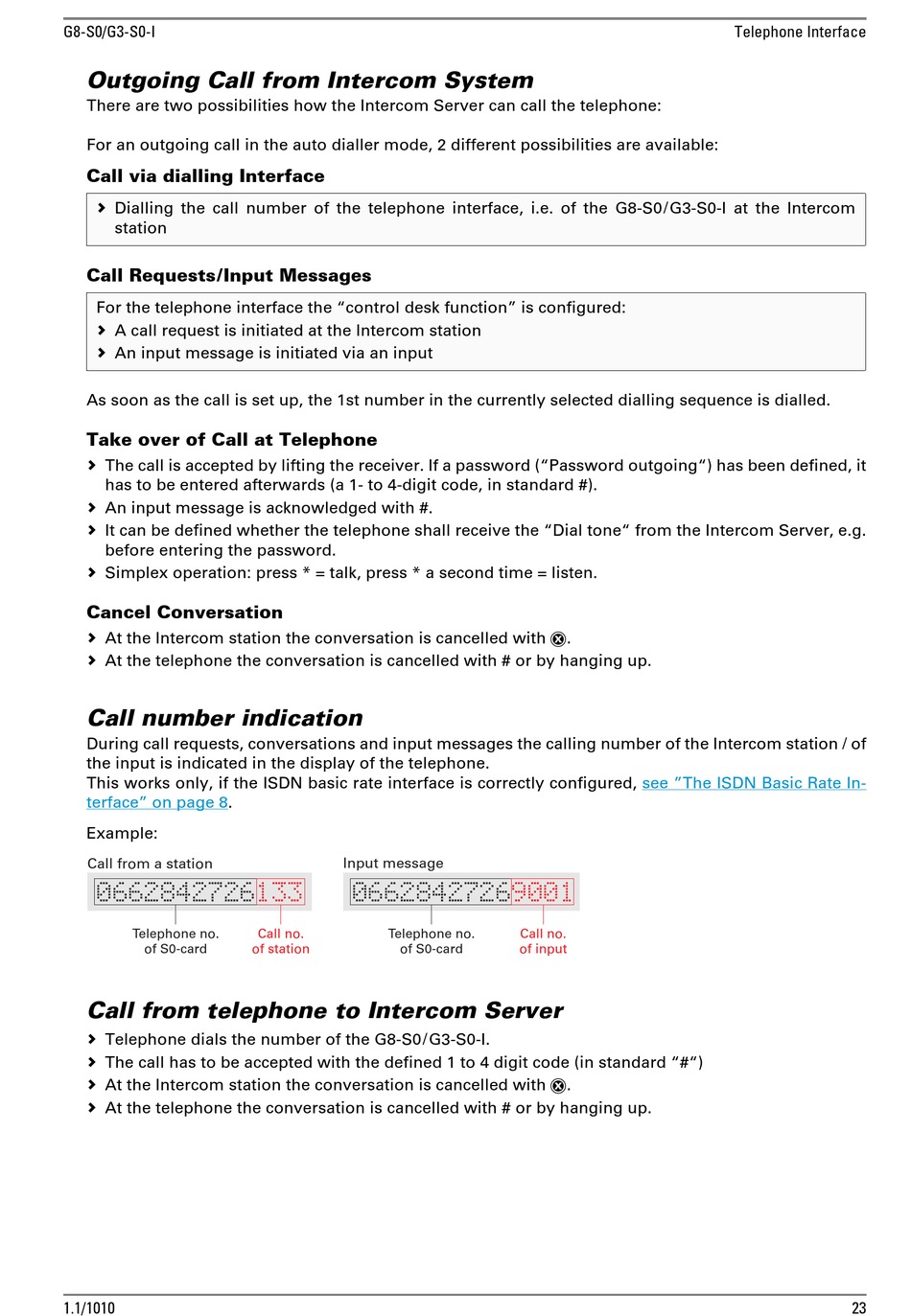

Commend C-G8-S0 Manual page 23

G8-S0/G3-S0-I
Outgoing Call from Intercom System
There are two possibilities how the Intercom Server can call the telephone:
For an outgoing call in the auto dialler mode, 2 different possibilities are available:
Call via dialling Interface
 Dialling the call number of the telephone interface, i.e. of the G8-S0/G3-S0-I at the Intercom
station
Call Requests/Input Messages
For the telephone interface the "control desk function" is configured:
 A call request is initiated at the Intercom station
 An input message is initiated via an input
As soon as the call is set up, the 1st number in the currently selected dialling sequence is dialled.
Take over of Call at Telephone
 The call is accepted by lifting the receiver. If a password ("Password outgoing") has been defined, it
has to be entered afterwards (a 1- to 4-digit code, in standard #).
 An input message is acknowledged with #.
 It can be defined whether the telephone shall receive the "Dial tone" from the Intercom Server, e.g.
before entering the password.
 Simplex operation: press * = talk, press * a second time = listen.
Cancel Conversation
 At the Intercom station the conversation is cancelled with X.
 At the telephone the conversation is cancelled with # or by hanging up.
Call number indication
During call requests, conversations and input messages the calling number of the Intercom station / of
the input is indicated in the display of the telephone.
This works only, if the ISDN basic rate interface is correctly configured,
terface" on page 8.
Example:
Call from a station
0662842726133
Telephone no.
of S0-card
Call from telephone to Intercom Server
 Telephone dials the number of the G8-S0/G3-S0-I.
 The call has to be accepted with the defined 1 to 4 digit code (in standard "#")
 At the Intercom station the conversation is cancelled with X.
 At the telephone the conversation is cancelled with # or by hanging up.
1.1/1010
Input message
06628427269001
Call no. Telephone no.
of station of S0-card
see "The ISDN Basic Rate In-
Call no.
of input
Telephone Interface
23
