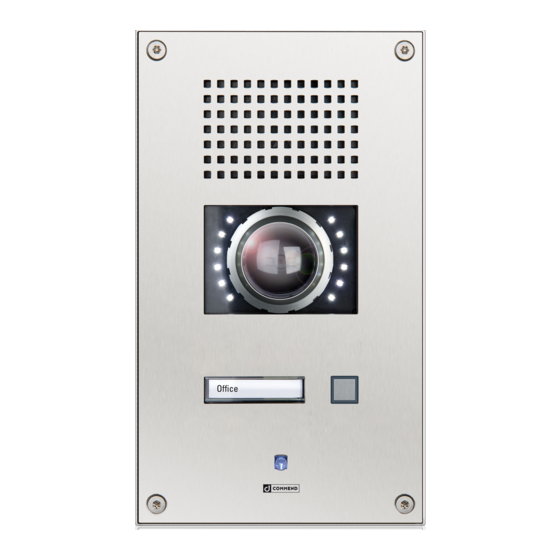

SIP station SIP-WS 201V CA

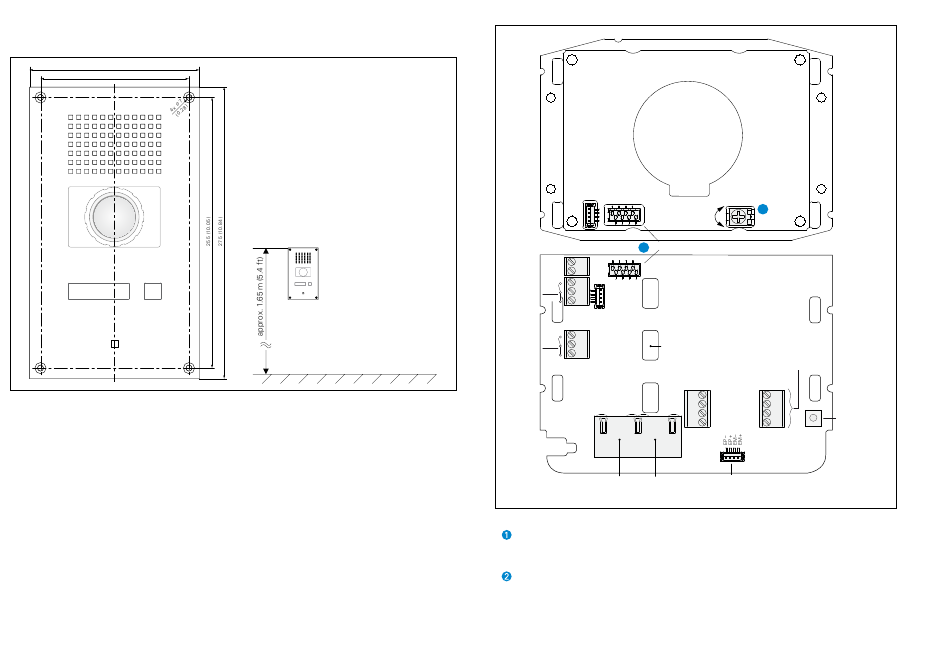

Dimensions and recommended mounting height
Measuring units in mm (in), not to scale! Front panel thickness: 3 mm (0.12 in)
160 (6.3)
140 (5.5)
Cleaning instructions
The device may only be cleaned with cleaning agents for stainless steel. Do not use cleaning agents
containing chlorine or isopropanol.
Safety instructions
• This device may only be installed, replaced and maintained by trained and properly qualified
personnel (device class: ES1, PS2 as per IEC/EN 62368-1). The connectors are subject to possible
high transient voltage surges. The device is intended for appropriate installation in locations where
operating personnel cannot come into contact with uninsulated wires.
• Devices belonging to another earthing network must not be connected to the device's connectors.
• Do not install the device on unstable walls or on surfaces which cannot support the device's weight.
• Only accessories that comply with the device's technical specifications shall be used.
• All connected circuits shall fulfil the requirements for ES1 (cf. SELV acc. IEC/EN 60950-1) and PS2
(Limited Power Source) as per IEC/EN 62368-1.
• Use shielded Ethernet cables only.
• Before using the device, ensure all cables are correctly connected and not damaged.
• Disconnect the power supply (PoE) for any maintenance of the device.
• Allow the device to cool down completely before touching parts inside.
• Do not make any unauthorised modifications to the device.
Extent of supply
• Station
• Mounting screws (4 x Torx TR 25 security
countersunk screws, M5 x 10)
• Snap-on ferrite (to be attached to IP uplink
Ethernet cable)
• Short reference
Finished floor
Connection diagram
OUT 2
1 expansion bus
OUT 2
OUT 2
OUT 2
OUT 1 slot for inserting
button label
OUT 1
IP uplink IP downlink
+ PoE (Axis camera
+ PoE)
Camera illumination and heating control
The camera illuminating and heating control are connected to the main board of the station
via the expansion bus. The web interface shows the two additional outputs.
Use OUT 1 on the EB2E2A as attendant contact to switch on the camera illuminator e.g. at call
setup
To dim the camera illuminator, use the potentiometer on the camera board.
Use OUT 2 on the EB2E2A as attendant contact to configure the camera's heating (e.g. ON for
standby state).
Note:
It is recommended to keep the heating permanently ON to avoid condensation on the camera glass in
certain installation scenarios (e.g. inside metal columns). The same recommendation holds for envi-
ronments where the station is exposed to large fluctuations in temperature and to high humidity.
LED brightness
+
2
–
external
loudspeaker module
IN 1 MUTE
IN 2 GND
factory
IN 3 LINE–
reset
button
LINE+
GND
handset
(e.g. WSHS 50P-JST)
