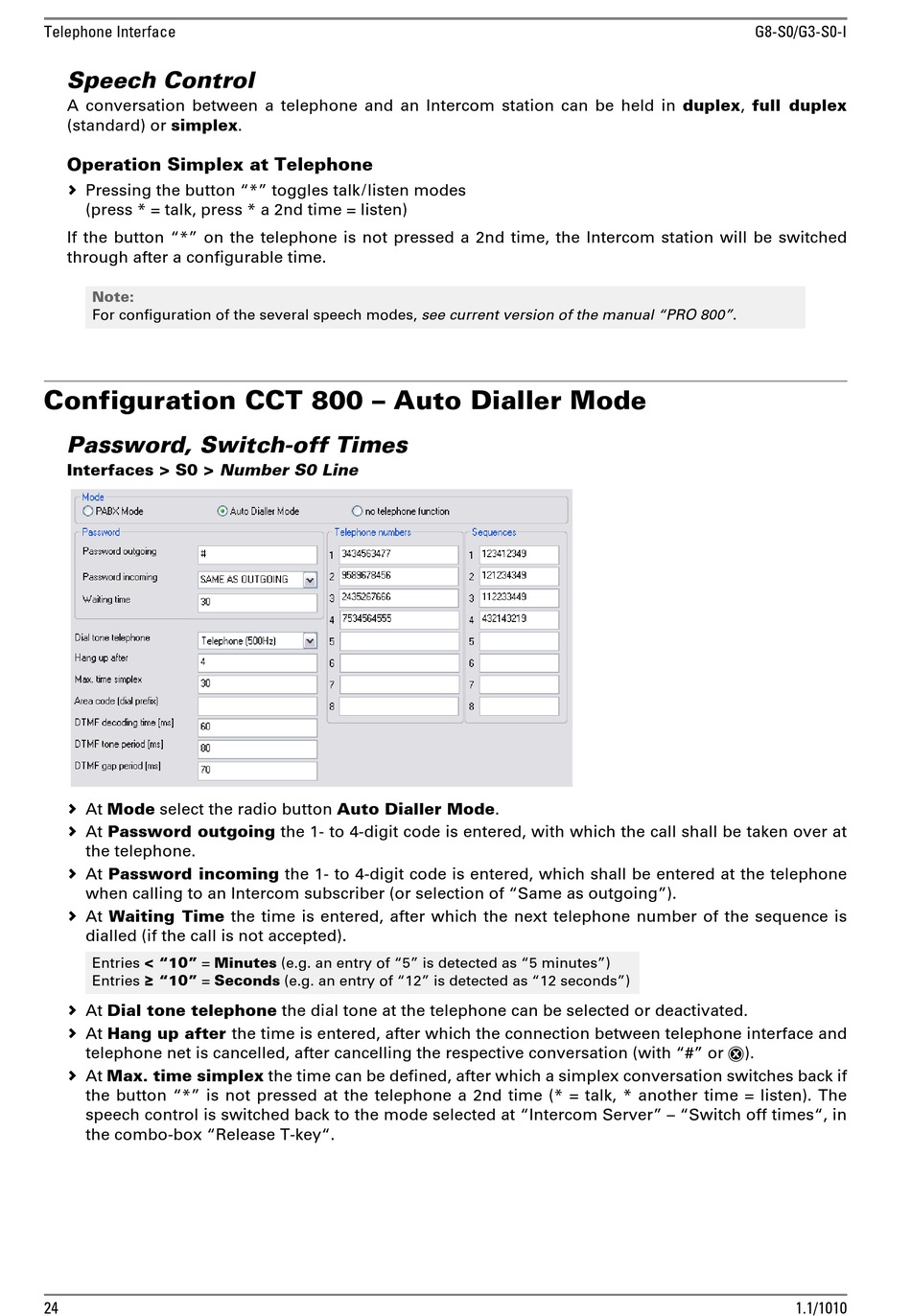

Configuration Cct 800 - Auto Dialler Mode - Commend C-G8-S0 Manual

Telephone Interface
Speech Control
A conversation between a telephone and an Intercom station can be held in duplex, full duplex
(standard) or simplex.
Operation Simplex at Telephone
 Pressing the button "*" toggles talk/listen modes
(press * = talk, press * a 2nd time = listen)
If the button "*" on the telephone is not pressed a 2nd time, the Intercom station will be switched
through after a configurable time.
Note:
For configuration of the several speech modes, see current version of the manual "PRO 800".
Configuration CCT 800 – Auto Dialler Mode
Password, Switch-off Times
Interfaces > S0 > Number S0 Line
 At Mode select the radio button Auto Dialler Mode.
 At Password outgoing the 1- to 4-digit code is entered, with which the call shall be taken over at
the telephone.
 At Password incoming the 1- to 4-digit code is entered, which shall be entered at the telephone
when calling to an Intercom subscriber (or selection of "Same as outgoing").
 At Waiting Time the time is entered, after which the next telephone number of the sequence is
dialled (if the call is not accepted).
Entries < "10" = Minutes (e.g. an entry of "5" is detected as "5 minutes")
Entries ≥ "10" = Seconds (e.g. an entry of "12" is detected as "12 seconds")
 At Dial tone telephone the dial tone at the telephone can be selected or deactivated.
 At Hang up after the time is entered, after which the connection between telephone interface and
telephone net is cancelled, after cancelling the respective conversation (with "#" or X).
 At Max. time simplex the time can be defined, after which a simplex conversation switches back if
the button "*" is not pressed at the telephone a 2nd time (* = talk, * another time = listen). The
speech control is switched back to the mode selected at "Intercom Server" – "Switch off times", in
the combo-box "Release T-key".
