Commend C-EM6CA Mounting Instructions

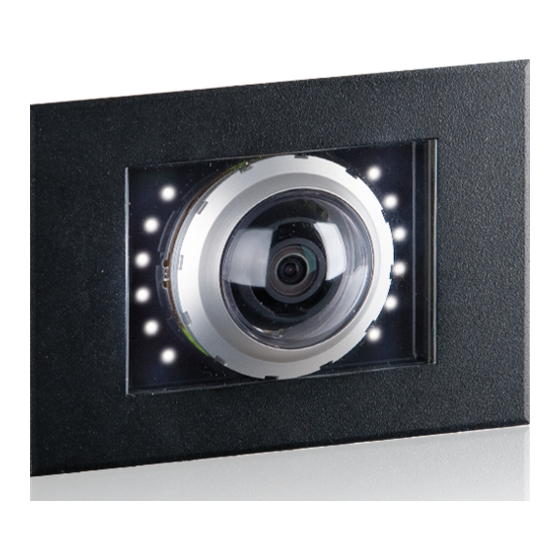

Axis camera module EM 6CA
Axis camera module EM 6CA for installation in the EE 8108M standard housing and EE 8999M basic
housing.
Attention: It is not possible to install the module in the EE 8999S expansion housing!

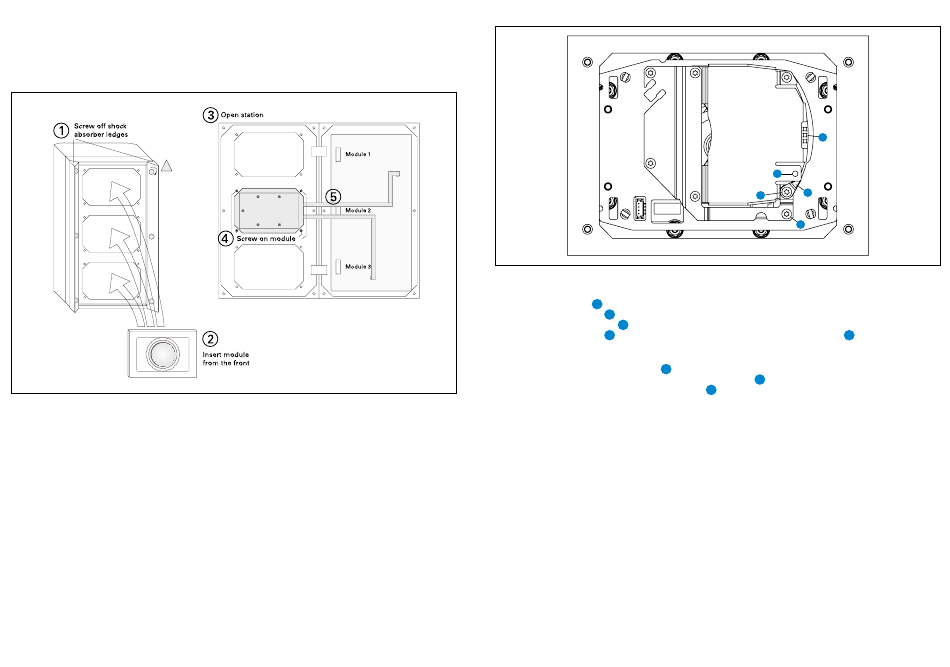

Mounting instructions
max.
!
1.5 Nm
Extent of supply
• Axis camera module EM 6CA
• Ethernet cable
• Connection cable
• Short reference
Safety instructions
• This device shall be installed or replaced by trained and qualified personnel only (device class: ES2,
PS2 as per IEC/EN 62368-1).
• Only use recommended tools when installing the device.
• Use shielded Ethernet cables only.
• Before using the device, ensure all cables are correctly connected and not damaged.
• Disconnect the power supply (PoE) for any maintenance of the device.
• Allow the device to cool down completely before touching parts.
• Do not make any unauthorised modifications to the device.
Axis electronic module: control button
Connection
Control button
Follow the steps below to operate the control button:
1. Loosen the screw
2. Turn the safety lever
3. Push the control button
4. Turn the safety lever
Follow the steps below to reset the camera to the factory default settings using the control button:
1. Disconnect the power supply from the camera.
2. Press and hold the control button
3. Keep the control button pressed until the LED indicator
4. Release the control button. If the status LED
Attention:
After a reset, the camera must be reconfigured, otherwise the camera image would appear 180° up-
side down.
2 1 1 1
1 (Torx T8).
2 outwards.
.
3
2 back into its original position and tighten the screw
3 and reconnect the power supply.
4 flashes amber.
turns green, the process is complete.
4
PWR
STAT
4
NET
3
2
5
1 .
