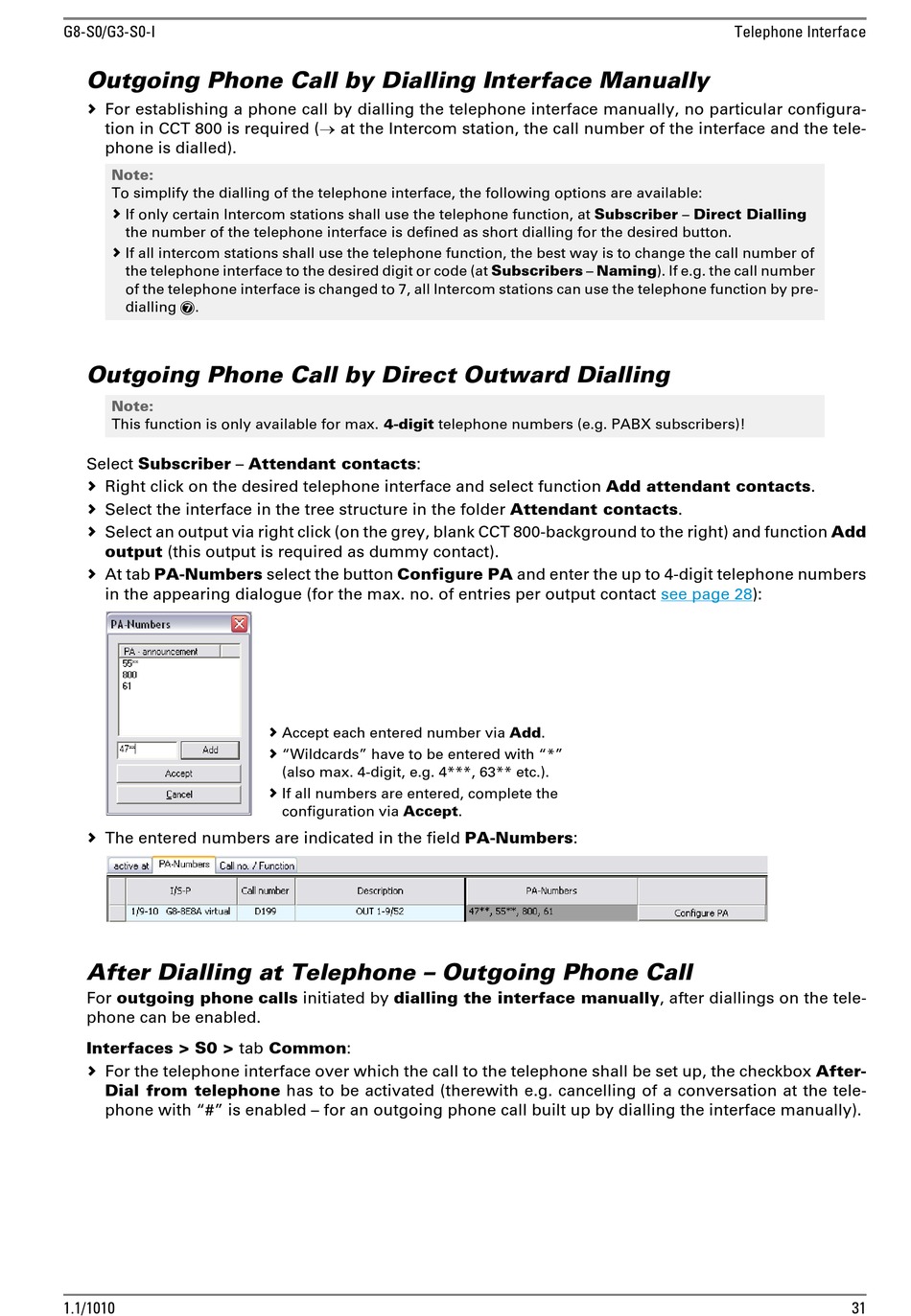

Commend C-G8-S0 Manual page 31

G8-S0/G3-S0-I
Outgoing Phone Call by Dialling Interface Manually
 For establishing a phone call by dialling the telephone interface manually, no particular configura-
tion in CCT 800 is required ( at the Intercom station, the call number of the interface and the tele-
phone is dialled).
Note:
To simplify the dialling of the telephone interface, the following options are available:
If only certain Intercom stations shall use the telephone function, at Subscriber – Direct Dialling

the number of the telephone interface is defined as short dialling for the desired button.
 If all intercom stations shall use the telephone function, the best way is to change the call number of
the telephone interface to the desired digit or code (at Subscribers – Naming). If e.g. the call number
of the telephone interface is changed to 7, all Intercom stations can use the telephone function by pre-
dialling 7.
Outgoing Phone Call by Direct Outward Dialling
Note:
This function is only available for max. 4-digit telephone numbers (e.g. PABX subscribers)!
Select Subscriber – Attendant contacts:
 Right click on the desired telephone interface and select function Add attendant contacts.
 Select the interface in the tree structure in the folder Attendant contacts.
 Select an output via right click (on the grey, blank CCT 800-background to the right) and function Add
output (this output is required as dummy contact).
 At tab PA-Numbers select the button Configure PA and enter the up to 4-digit telephone numbers
in the appearing dialogue (for the max. no. of entries per output contact
 The entered numbers are indicated in the field PA-Numbers:
After Dialling at Telephone – Outgoing Phone Call
For outgoing phone calls initiated by dialling the interface manually, after diallings on the tele-
phone can be enabled.
Interfaces > S0 > tab Common:
 For the telephone interface over which the call to the telephone shall be set up, the checkbox After-
Dial from telephone has to be activated (therewith e.g. cancelling of a conversation at the tele-
phone with "#" is enabled – for an outgoing phone call built up by dialling the interface manually).
1.1/1010
 Accept each entered number via Add.
 "Wildcards" have to be entered with "*"
(also max. 4-digit, e.g. 4***, 63** etc.).
 If all numbers are entered, complete the
configuration via Accept.
Telephone Interface
see page 28):
