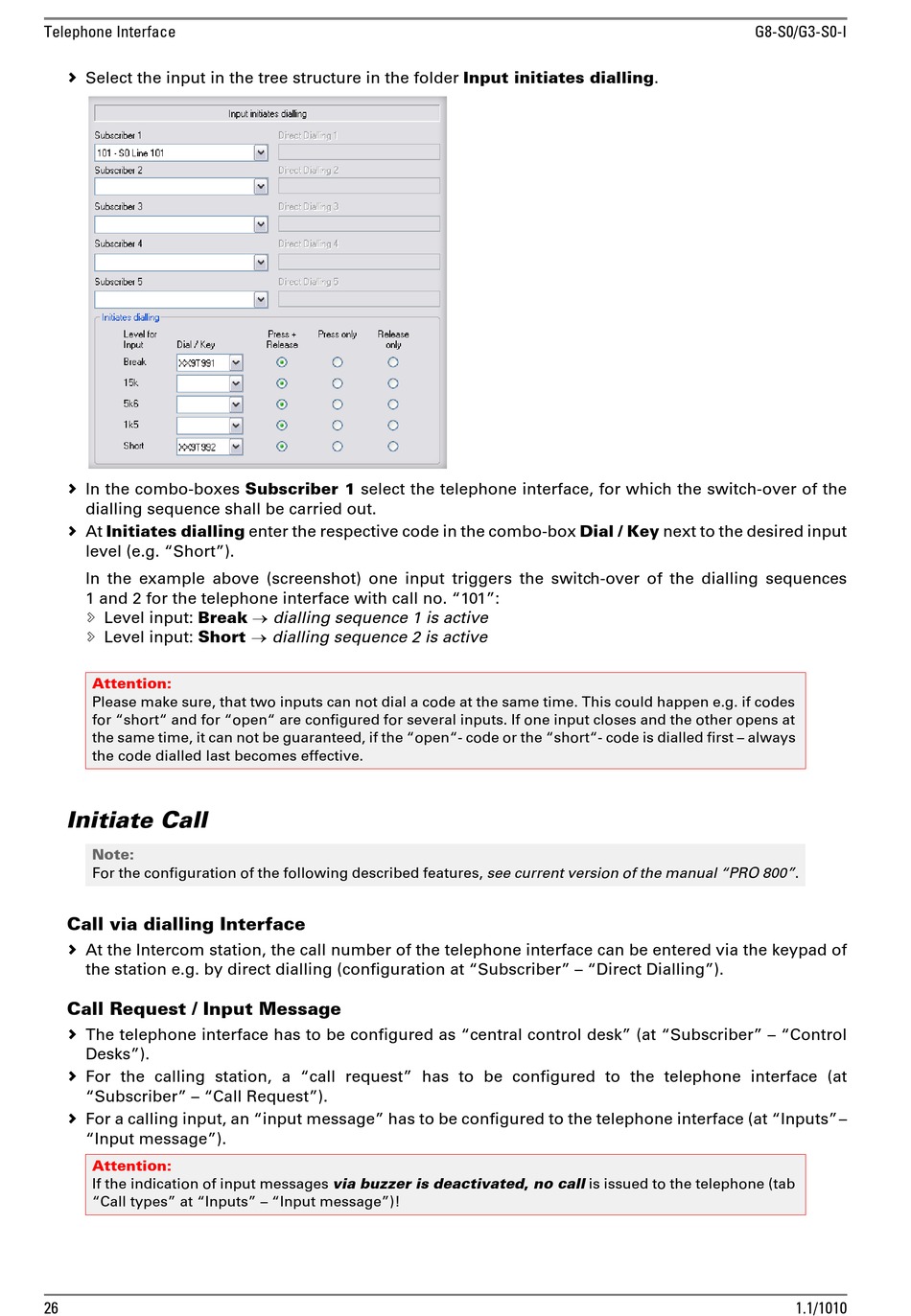

Commend C-G8-S0 Manual page 26

Telephone Interface
 Select the input in the tree structure in the folder Input initiates dialling.
 In the combo-boxes Subscriber 1 select the telephone interface, for which the switch-over of the
dialling sequence shall be carried out.
 At Initiates dialling enter the respective code in the combo-box Dial / Key next to the desired input
level (e.g. "Short").
In the example above (screenshot) one input triggers the switch-over of the dialling sequences
1 and 2 for the telephone interface with call no. "101":
 Level input: Break  dialling sequence 1 is active
 Level input: Short  dialling sequence 2 is active
Attention:
Please make sure, that two inputs can not dial a code at the same time. This could happen e.g. if codes
for "short" and for "open" are configured for several inputs. If one input closes and the other opens at
the same time, it can not be guaranteed, if the "open"- code or the "short"- code is dialled first – always
the code dialled last becomes effective.
Initiate Call
Note:
For the configuration of the following described features, see current version of the manual "PRO 800".
Call via dialling Interface
 At the Intercom station, the call number of the telephone interface can be entered via the keypad of
the station e.g. by direct dialling (configuration at "Subscriber" – "Direct Dialling").
Call Request / Input Message
 The telephone interface has to be configured as "central control desk" (at "Subscriber" – "Control
Desks").
 For the calling station, a "call request" has to be configured to the telephone interface (at
"Subscriber" – "Call Request").
 For a calling input, an "input message" has to be configured to the telephone interface (at "Inputs"–
"Input message").
Attention:
If the indication of input messages via buzzer is deactivated, no call is issued to the telephone (tab
"Call types" at "Inputs" – "Input message")!
