GEC 880 Service Manual

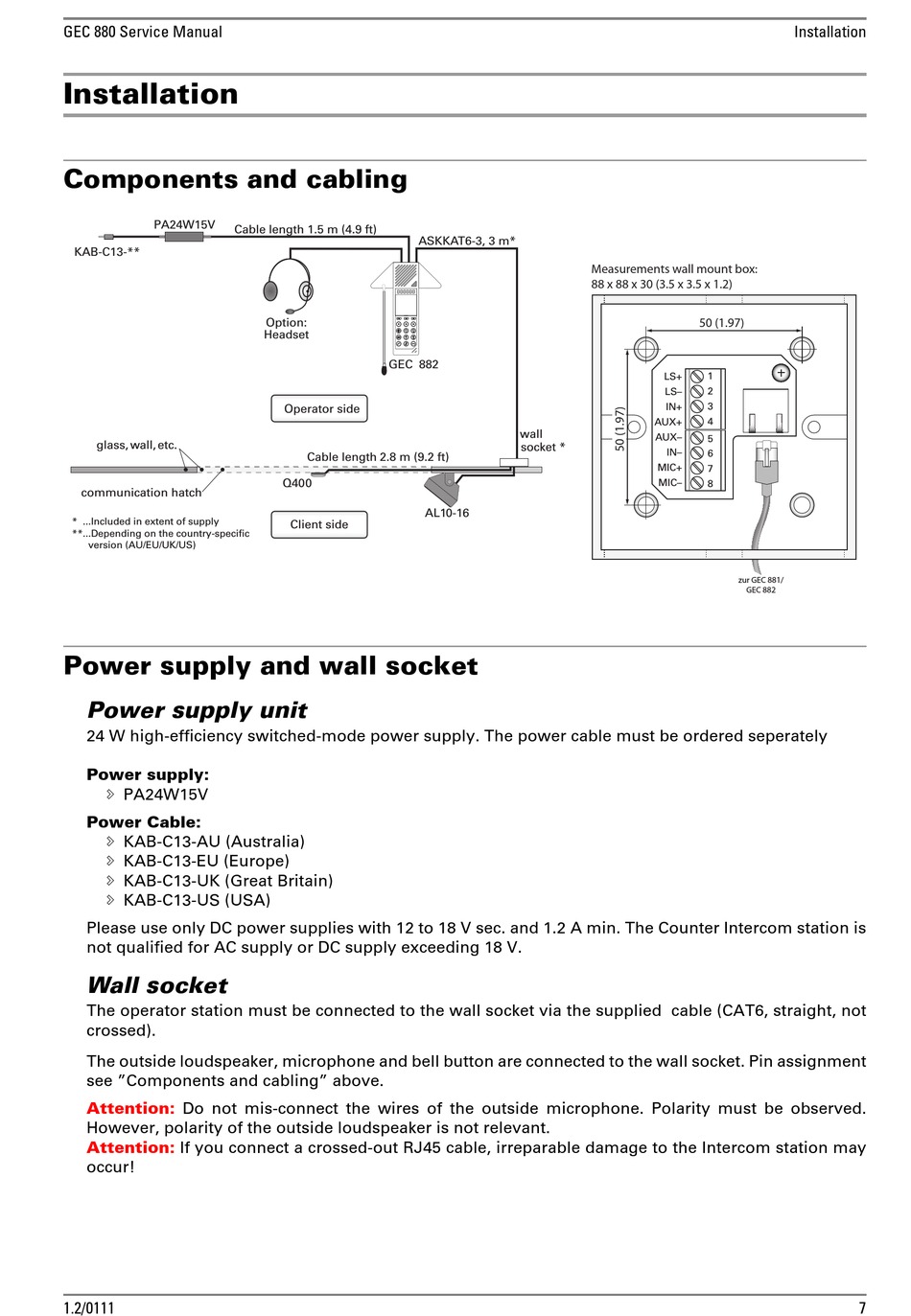

Installation

Components and cabling

PA24W15V
Cable length 1.5 m (4.9 ft)
KAB-C13-**
glass, wall, etc.
communication hatch
* ...Included in extent of supply
**...Depending on the country-specific
version (AU/EU/UK/US)

Power supply and wall socket

Power supply unit
24 W high-efficiency switched-mode power supply. The power cable must be ordered seperately
Power supply:
 PA24W15V
Power Cable:
 KAB-C13-AU (Australia)
 KAB-C13-EU (Europe)
 KAB-C13-UK (Great Britain)
 KAB-C13-US (USA)
Please use only DC power supplies with 12 to 18 V sec. and 1.2 A min. The Counter Intercom station is
not qualified for AC supply or DC supply exceeding 18 V.
Wall socket
The operator station must be connected to the wall socket via the supplied cable (CAT6, straight, not
crossed).
The outside loudspeaker, microphone and bell button are connected to the wall socket. Pin assignment
see "Components and cabling" above.
Attention: Do not mis-connect the wires of the outside microphone. Polarity must be observed.
However, polarity of the outside loudspeaker is not relevant.
Attention: If you connect a crossed-out RJ45 cable, irreparable damage to the Intercom station may
occur!
1.2/0111
ASKKAT6-3, 3 m*
Option:
Headset
GEC 882
Operator side
Cable length 2.8 m (9.2 ft)
Q400
AL10-16
Client side
Measurements wall mount box:
88 x 88 x 30 (3.5 x 3.5 x 1.2)
LS+
LS–
IN+
AUX+
wall
AUX–
socket *
IN–
MIC+
MIC–
Installation
50 (1.97)
1
2
3
4
5
6
7
8
zur GEC 881/
GEC 882
