G8-TEL, G3-TEL

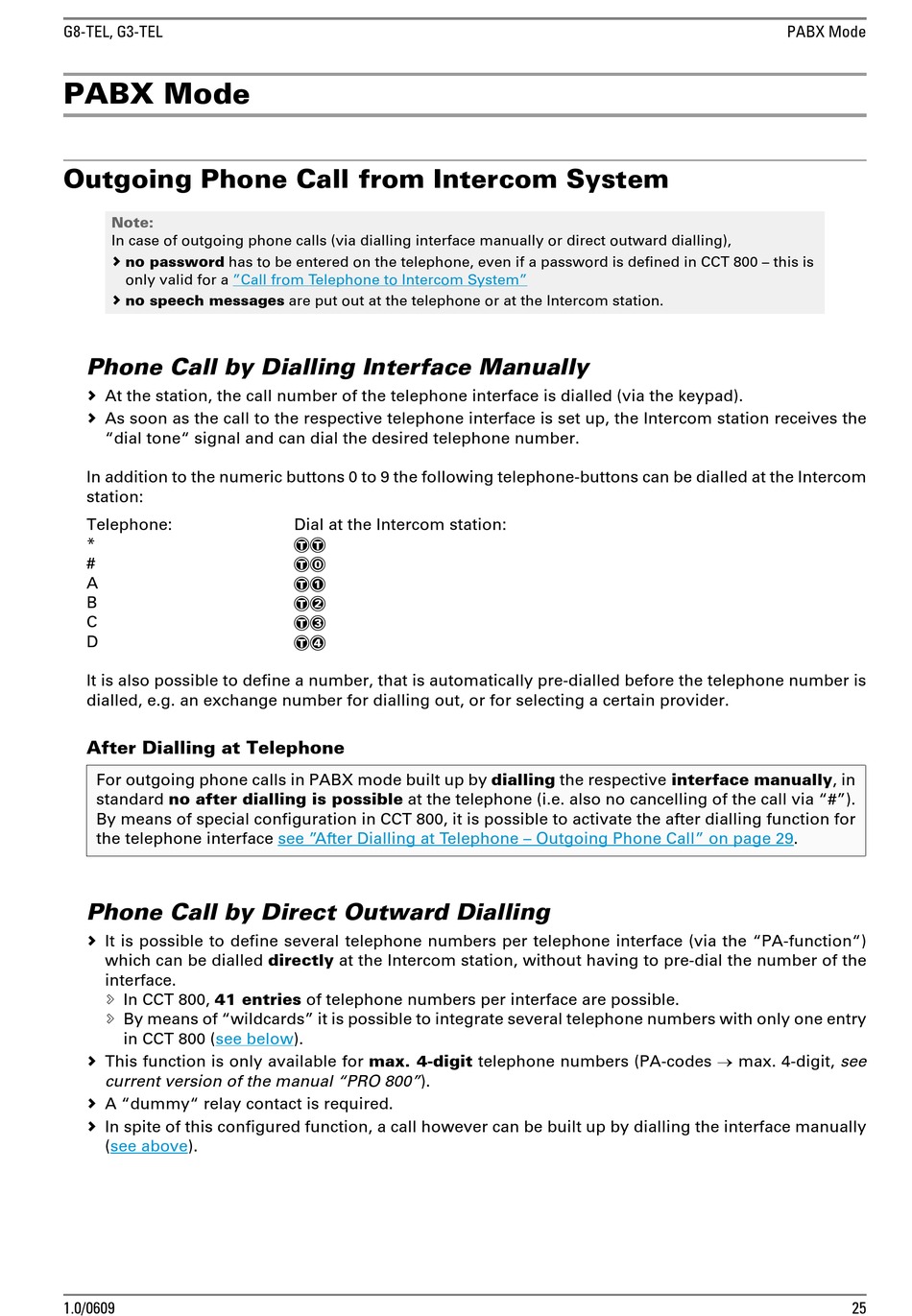

PABX Mode

Outgoing Phone Call from Intercom System

Note:
In case of outgoing phone calls (via dialling interface manually or direct outward dialling),
no password has to be entered on the telephone, even if a password is defined in CCT 800 – this is
only valid for a "Call from Telephone to Intercom System"
no speech messages are put out at the telephone or at the Intercom station.
Phone Call by Dialling Interface Manually
At the station, the call number of the telephone interface is dialled (via the keypad).
As soon as the call to the respective telephone interface is set up, the Intercom station receives the
"dial tone" signal and can dial the desired telephone number.
In addition to the numeric buttons 0 to 9 the following telephone-buttons can be dialled at the Intercom
station:
Telephone:
*
#
A
B
C
D
It is also possible to define a number, that is automatically pre-dialled before the telephone number is
dialled, e.g. an exchange number for dialling out, or for selecting a certain provider.
After Dialling at Telephone
For outgoing phone calls in PABX mode built up by dialling the respective interface manually, in
standard no after dialling is possible at the telephone (i.e. also no cancelling of the call via "#").
By means of special configuration in CCT 800, it is possible to activate the after dialling function for
the telephone interface
Phone Call by Direct Outward Dialling
It is possible to define several telephone numbers per telephone interface (via the "PA-function")
which can be dialled directly at the Intercom station, without having to pre-dial the number of the
interface.
In CCT 800, 41 entries of telephone numbers per interface are possible.
By means of "wildcards" it is possible to integrate several telephone numbers with only one entry
in CCT 800 (see
This function is only available for max. 4-digit telephone numbers (PA-codes → max. 4-digit, see
current version of the manual "PRO 800").
A "dummy" relay contact is required.
In spite of this configured function, a call however can be built up by dialling the interface manually
(see above).
1.0/0609
Dial at the Intercom station:
TT
T0
T1
T2
T3
T4
see "After Dialling at Telephone – Outgoing Phone Call" on page
below).
