TOTAL ACCESS 600R
User Interface Guide (UIG)
64200600L1#T-31A
April 2002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TOTAL ACCESS 600R and is the answer not in the manual?

Questions and answers

Related Manuals for ADTRAN TOTAL ACCESS 600R

Summary of Contents for ADTRAN TOTAL ACCESS 600R

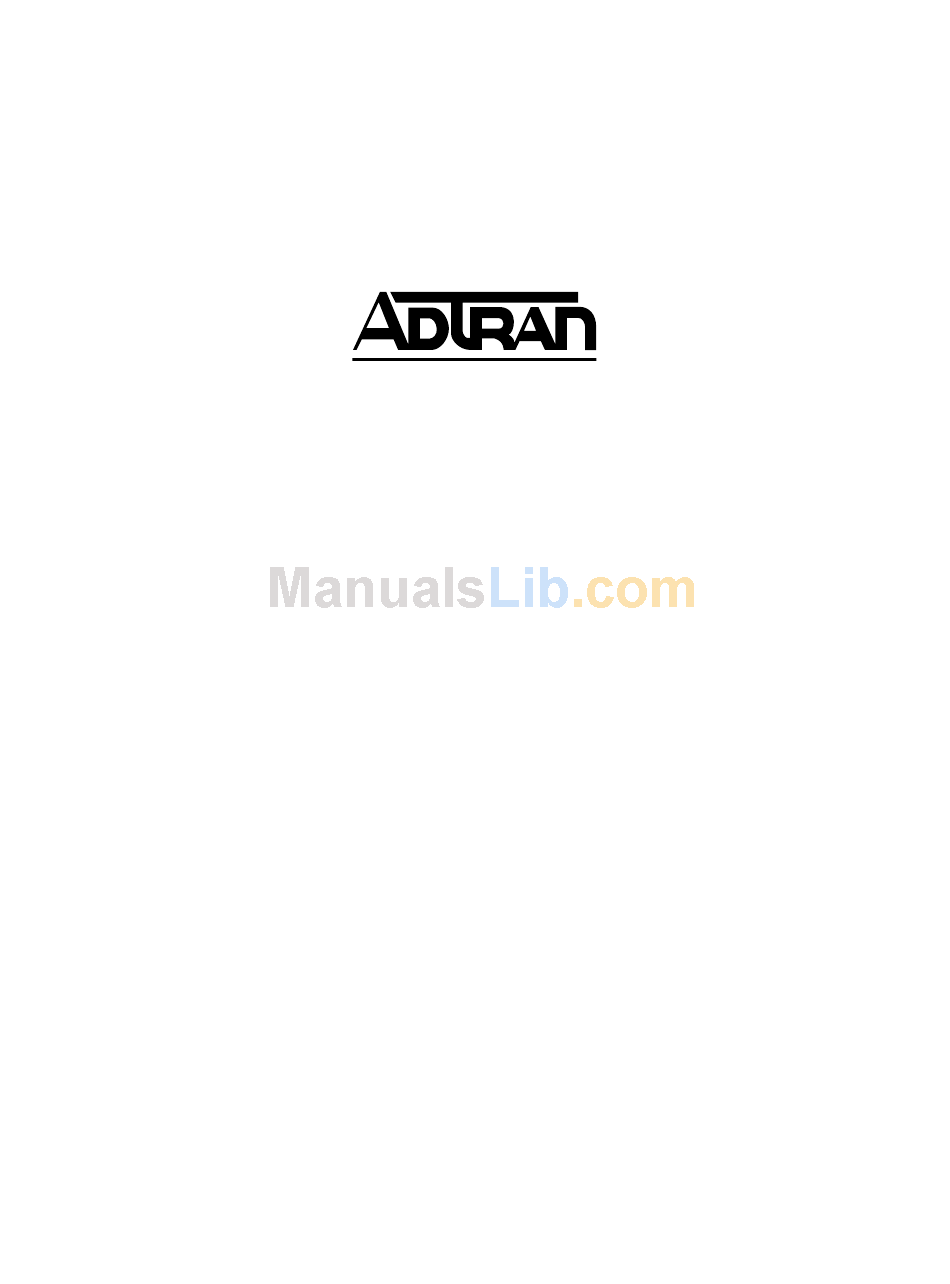

  • Page 1 TOTAL ACCESS 600R User Interface Guide (UIG) 64200600L1#T-31A April 2002...
  • Page 2 To the Holder of the Manual The contents of this manual are current as of the date of publication. ADTRAN reserves the right to change the contents without prior notice. In no event will ADTRAN be liable for any special, incidental, or consequential damages or for commercial losses even if ADTRAN has been advised thereof as a result of issue of this publication.

  • Page 3: Safety Instructions

    4. Use only the power cord, power supply, and/or batteries indicated in the man- ual. Do not dispose of batteries in a fire. They may explode. Check with local codes for special disposal instructions. Save These Important Safety Instructions 64200600L1#T-31A Total Access 600R User Interface Guide (UIG) © 2002, ADTRAN, Inc. Page 3...
  • Page 4 Part 68- compliant. See installation instructions for details. 3. If your telephone equipment (Total Access 600R) causes harm to the telephone network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance.

  • Page 5: Federal Communications Commission (Fcc) Statement

    Change or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 64200600L1#T-31A Total Access 600R User Interface Guide (UIG) © 2002, ADTRAN, Inc. Page 5...

  • Page 6: Canadian Emissions Requirements

    Total Access 600R User Interface Guide (UIG) Industry Canada Compliance Information Notice: The Industry Canada label applied to the product (identified by the Industry Canada logo or the “IC:” in front of the certification/registration number) signifies that the Industry Canada technical specifications were met.

  • Page 7: Affidavit Requirements For Connection To Digital Services

    (CPE) to 1.544 Mbps or subrate digital services. • Until such time as subrate digital terminal equipment is registered for voice applications, the affidavit requirement for subrate services is waived. 64200600L1#T-31A Total Access 600R User Interface Guide (UIG) © 2002, ADTRAN, Inc. Page 7...
  • Page 8 Total Access 600R User Interface Guide (UIG) Affidavit for Connection of Customer Premises Equipment to 1.544 Mbps and/or Subrate Digital Services For the work to be performed in the certified territory of ___________________(telco name) State of ________________ County of ________________...
  • Page 9 Total Access 600R User Interface Guide (UIG) I agree to provide ______________________ (telco’s name) with proper documentation to demonstrate compliance with the information as provided in the preceding paragraph, if so requested. _________________________________Signature _________________________________Title _________________________________ Date Transcribed and sworn to before me...

  • Page 10: Warranty And Customer Service

    Total Access 600R User Interface Guide (UIG) Warranty and Customer Service ADTRAN will repair and return this product within ten years from the date of shipment if it does not meet its published specifications or fails while in service. For detailed warranty, repair, and return information refer to the ADTRAN Equipment Warranty and Repair and Return Policy Procedure.
  • Page 11 Customer Service, Product Support Information, and Training ADTRAN will repair and return this product if within ten years from the date of shipment the product does not meet its published specification or the product fails while in service. A return material authorization (RMA) is required prior to returning equipment to ADTRAN. For service, RMA requests, training, or more information, use the contact information given below.

  • Page 12: Post-Sale Support

    Your reseller should serve as the first point of contact for support. If additional support is needed, the ADTRAN Support web site provides a variety of support services such as a searchable knowledge base, updated firmware releases, latest product documentation, service request ticket generation and trouble- shooting tools.

  • Page 13: Table Of Contents

    Configuring the Total Access 600R ........
  • Page 14 Total Access 600R User Interface Guide (UIG) Initial Setup ..............72 Setting up Bridging Options .

  • Page 15: Figure 1. Top-Level Terminal Menu Window

    Terminal Menu Window The Total Access 600R uses a multi-level menu structure that contains both menu items and data fields. All menu items and data fields display in the terminal menu window (see Figure 1), through which you have complete control of the Total Access 600R.

  • Page 16: Figure 2. Alternate Menu View

    Total Access 600R User Interface Guide (UIG) Window Panes When you first start a terminal menu session, the terminal menu window is divided into left and right panes. The left pane shows the list of available submenus, while the right pane shows the contents of the currently selected submenu.

  • Page 17: Additional Terminal Menu Window Features

    You can use various keystrokes to move through the terminal menu, to manage a terminal menu session, and to con- figure the system. Press <CTRL+Z> to activate a pop-up screen listing the navigation keystrokes. 64200600L1#T-31A Total Access 600R User Interface Guide (UIG) Press this key... Enter...

  • Page 18: Session Management Keystrokes

    Total Access 600R User Interface Guide (UIG) Moving through the Menus To do this... Return to the home screen Jump between two menu items Press <J> while the cursor is located on a menu item, and you jump back to the main screen.

  • Page 19: Configuration Keystrokes

    Press <CTRL+Z> to activate a help screen that displays the available keystrokes you can use to navigate the terminal menu. Press <ESC> to cancel these pop up windows. 64200600L1#T-31A Total Access 600R User Interface Guide (UIG) menu), then only the selected module is updated to fac- 1 screen, all of the in- connection list by pressing <I> while ELNET connection list by pressing <D>...

  • Page 20: Terminal Menu And System Control

    Use the chart below to help select the appropriate terminal menu. To do this... Review and monitor general system information for the Total Access 600R Set up the operational configuration for the Total Access 600R Upgrade firmware, do config transfers, ping, and access terminal mode...

  • Page 21: Figure 3. System Information Menu

    OCATION Provides a user-configurable text string for the location of the Total Access 600R. This field is to help you keep track of the actual physical location of the unit. You can enter up to 31 alphanumeric characters in this field, including spaces and special characters (such as an underscore).

  • Page 22: System Info>Part Number

    >S YSTEM YSTEM PTIME Displays the length of time since the last Total Access 600R system reboot. Each time you reset the system, this value resets to 0 days, 0 hours, 0 min and 0 secs. >D YSTEM Displays the current date and time, including seconds. This field can be edited. Enter the time in 24-hour format (such as 23:00:00 for 11:00 pm).

  • Page 23: Figure 4. System Config Menu

    ELNET Up to four users can be configured for access to the 600R. Each user can be assigned a security level and time out. The name is a text string of the user name for this session. You can enter up to 15 characters in this field. The factory...

  • Page 24: System Config>Telnet Ip Access List

    This is a list of allowed telnet managers. Enter a network address and subnet mask from which telnet access to the Total Access 600R is allowed. When a remote unit requests telnet access to the Total Access 600R, if the access list is empty or the remote’s IP address matches a list entry, remote access is granted.

  • Page 25: System Config>Snmp Menu

    ONFIG This list is used to set up to 60 SNMP communities names that the 600R will allow. This is a text string for the community name. You can enter up to 31 characters in this field. The factory default is no entry in the name parameter.

  • Page 26: System Config>Maint Port Menu

    Total Access 600R User Interface Guide (UIG) >SNMP M YSTEM ONFIG This is the far-end IP address used for FDL management. The FDL is a separate IP network from the customer data that is configured under the >SNMP M YSTEM ONFIG This is the subnet mask defining the IP network used for FDL management.

  • Page 27: System Config>Network Time

    NTP/SNTP server. The ETWORK with the time server. The server type defines the port on which the Total Access 600R will listen to receive timing information from the time server. The choices are NT T an NT server running SNTP software on its TIME port. When set to an SNTP server.

  • Page 28: Figure 5. System Utility Menu

    ETWORK Since some areas of the world use Daylight Savings Time, the Total Access 600R is designed to adjust the time on the first Sunday in April and the last Sunday in October accordingly if this option is turned on. The choices are The factory default is >N...

  • Page 29: System Utility>Upgrade Firmware

    Sends a file containing the Total Access 600R configuration to a PC connected to the protocol or to a file on a TFTP server using the TFTP protocol. also lets you save the Total Access 600R configuration as a backup file, so you can use the same ONFIG RANSFER configuration with multiple Total Access 600R units.
  • Page 30 Total Access 600R User Interface Guide (UIG) To support these transfers, ADTRAN delivers a TFTP program with the Total Access 600R called TFTP Server. You can configure any PC running Microsoft Windows with this software, and store a configuration file.

  • Page 31: System Utility>Ping

    • Configure the unit. The Total Access 600R has the ability to download a text file which contains the configuration of the entire unit. This configuration may then be altered in a text editor, and then uploaded to that same or any other Total Access 600R.

  • Page 32: Figure 6. Router/Configuration Menu

    Total Access 600R User Interface Guide (UIG) OUTER ENUS Use the menu (Figure 6) to access the OUTER ONFIGURATION >C OUTER ONFIG >C >G OUTER ONFIG LOBAL Use the menu (Figure 7) to set up general router functions. LOBAL Page 32 LOBAL Figure 6.

  • Page 33: Static Routes

    IP, network mask, default gateway, and DNS addresses to any device which transmits a broadcast DHCP request. The addresses as- signed are based on the 600R’s own IP address and will be within the same network. Default is The number of hours that the DHCP server should allow the device before it is required to send a new DHCP request.
  • Page 34 Total Access 600R User Interface Guide (UIG) UDP Relay This menu configures the 600R to act as a UDP relay agent for applications requiring a response from UDP hosts that are not on the same network segment as their clients.
  • Page 35 The 600R will ask for EAP during the first PPP LCP negotiation and allow the PPP peer to negotiate down to CHAP but not PAP. The 600R will only allow EAP to be negotiated. If the PPP peer is not capable of doing EAP, then the connection will not succeed.
  • Page 36 The 600R can filter packets based on certain parameters within the packet. The method used by the 600R allows the highest flexibility for defining filters and assigning them to a PVC or PPP link. The fil- ters are set up in two steps: (1) defining the filter types, and (2) applying them to a list under the PVC or PPP configuration.
  • Page 37 DDRESS ROTO ROTO 64200600L1#T-31A Total Access 600R User Interface Guide (UIG) Identifies the filter entry. Default is no entry in name field. IP address compared to the source address (dotted decimal format) Default is 0.0.0.0. Bits which are used in the source comparison. (dotted deci-...

  • Page 38: Figure 8. Ethernet Menu

    THERNET This is used to setup the IP address for the LAN on the 600R. IP Address The IP address assigned to the 600R's Ethernet port is set here. This address must be unique within the network. Default is 10.0.0.1 Subnet Mask This is the IP network mask that is to be applied to the 600R's Ethernet port.
  • Page 39 Ethernet port the address is looked up in the IP routing table. If the forwarding port is not on the Ethernet port and the route is not the default route, the Total Access 600R will answer the request with its own hardware address.

  • Page 40: Figure 9. Wan Menu

    PPP peer. Authentication is applied between the Total Access 600R and the PPP peer as follows: TX M ETHOD This parameter specifies how the Total Access 600R is to be authenticated by the PPP peer. There are four possible selections. Default is HAP OR Page 40 Figure 9.
  • Page 41 (def) will permit this connection profile to negotiate PPP IPCP with the PPP peer for routing of IP packets. Choices are O The Total Access 600R can perform Network Address Translation. This feature is most widely used when connecting to the Internet. The Ethernet network can consist of private network numbers.
  • Page 42 Total Access 600R User Interface Guide (UIG) UBLIC DDRESS UBLIC DDRESS ROTOCOL ROTOCOL ROTOCOL UBLIC UBLIC UBLIC Page 42 This option is only available when is enabled. The public IP address used for this LATION translation entry can be the NAPT IP address assigned to the link or can be specified.
  • Page 43 RANSLATE NAT V ROTO POOF 64200600L1#T-31A Total Access 600R User Interface Guide (UIG) This option is only available when is enabled. The private IP address can be speci- LATION fied to steer certain protocols and ports to specific servers in the private network. Likewise, internal hosts can be steered to certain servers on the public network.
  • Page 44 DDRESS NTRY OUNT NTRY VERFLOW OUNT OUTE The IP parameters are configured in this menu. For unnumbered interfaces, the Total Access 600R will automatically discover the PPP peer’s networks using PPP IPCP and/or RIP. IP/NET ETMASK TATIC OUTE RIVATE (1-16)
  • Page 45 The Total Access 600R supports the IETF standards for the Point-to-Point Protocol. The PPP state machine running in the 600R can be fine-tuned to support many applications that can be employed. The configurable items under this menu can be changed from their default values for special cases.
  • Page 46 20. Default is 5. Filters The 600R can block packets in and out of a WAN port by use of the filters. They are set up in two steps: 1) define the types of packets that would be of interest in the C menu, and 2) set up the filter type and combination of defines that will cause a packet block.

  • Page 47: Maintenance Protocol

    TATIC Polling Frequency (5-30) This parameter is the interval that the Total Access 600R polls the Frame Relay switch using the main- tenance protocol selected above. The Total Access 600R is required to poll the Frame Relay switch peri- odically to determine whether the link is active. The value is in seconds and ranges from 5 to 30 seconds with a default of 10 seconds.
  • Page 48 Bridge connections are made using bridge group 1. When more than one DLCI mapping is listed, the 600R will try to match the DLCIs learned from the Frame Relay switch with the DLCI values in the map. If there is a match, the protocols specified in the map are used.
  • Page 49 OCAL DDRESS The Total Access 600R can perform Network Address Translation. This feature is most widely used when connecting to the Internet. The Ethernet network can consist of private network numbers. When this profile is connected, all IP addresses on the Ethernet side are translated into the one real IP address.
  • Page 50 Total Access 600R User Interface Guide (UIG) RANSLATION UBLIC DDRESS UBLIC DDRESS ROTOCOL ROTOCOL ROTOCOL UBLIC UBLIC UBLIC Page 50 This option is only available when ABLE abled. Add translation entries to “fine tune” special protocols or specify private addresses.
  • Page 51 RANSLATE NAT V ROTO POOF 64200600L1#T-31A Total Access 600R User Interface Guide (UIG) This option is only available when is enabled. The private IP address can be specified TION to steer certain protocols and ports to specific servers in the private network. Likewise, internal hosts can be steered to certain servers on the public network.
  • Page 52 Total Access 600R User Interface Guide (UIG) ERVER NAPT A DDRESS NTRY OUNT NTRY VERFLOW OUNT ERSION ETHOD PLIT OISON IRECTION X AND Bridge Map This menu is used to permit bridging of packets over this DLCI. Each DLCI or virtual circuit must be assigned a bridge group.
  • Page 53 Bridge Group 1 and Bridge Group 2. Filter The 600R can block packets in and out of a PVC port by use of the filters. They are set up in two steps: 1) define the types of packets that would be of interest in the C menu, and 2) set up the filter type and combination of defines that will cause a packet block.

  • Page 54: Router>Status

    The Total Access 600R can be configured from the WAN without having to preset a DLCI mapping or IP address. This value is the DLCI number used to open an IP session by the Total Access 600R. Any IP packet arriving from the PVC is assumed to be for the Total Access 600R’s IP stack. The destination address in the packet is assigned as the PVC’s local IP address.
  • Page 55 Integer used for identifying DLCIs on an interface. A single DLCI will always be port index 0. Subsequent DLCIs will have incrementing port index values. Displays “up” when the Total Access 600R is communicating with the Frame Relay switch; otherwise displays “down” Total packets transmitted out...
  • Page 56 ACHE This lists the contents of the Total Access 600R’s ARP table. All resolved cache entries time out after 20 minutes. Un- resolved entries time out in 3 minutes. The ARP cache can be cleared by pressing “f” while on the menu or by pressing “d”...
  • Page 57 TATUS RIDGE Seconds until address is removed from table. >S >IP R OUTER TATUS OUTES This lists the contents of the Total Access 600R’s IP router table. >S >IP R OUTER TATUS Network or host destination address >S >IP R...
  • Page 58 Total Access 600R User Interface Guide (UIG) >S >IP R OUTER TATUS Important tags associated with this route entry route is a host route route is a gateway route route learned dynamically from RIP route learned from an ICMP redirect...

  • Page 59: Router>Logs

    The Logs menu (Figure 11 on page 60) contains logs displaying important information about the running condition of the Total Access 600R. The logs can be set to capture diagnostics of error conditions only by way of a log level. The...

  • Page 60: Figure 11. Router/Logs Menu

    Total Access 600R User Interface Guide (UIG) >L >S OUTER YSLOG Set this to the IP address or domain name (if DNS configured) of the syslog host device. All log events are sent to this device. >L >PPP L OUTER Information pertaining to the PPP negotiation and authentication is logged in the PPP log.

  • Page 61: Modules Menus

    LARM for the Net (T1) interface. >M >S ODULES ODULES Identifies the slot number. Slot 0 refers to the Total Access 600R. This is a read-only field. >M >T ODULES ODULES is displayed as indicating the network interface. This is a read-only field.
  • Page 62 Total Access 600R User Interface Guide (UIG) >M ODULES ODULES This sets the frame format for the T1 interface. The setting must match the frame format of the circuit to which the interface is connected. Choices are ESF, SF, SLC96 A...
  • Page 63 >M ODULES ODULES Severely Errored Frames. >M ODULES ODULES Frame Sync Errors. 64200600L1#T-31A Total Access 600R User Interface Guide (UIG) >T >L , and P AYLOAD is similar to line loopback except that the framing is AYLOAD OOPBACK >T >R...

  • Page 64: Modules>Ds0 Maps

    Total Access 600R User Interface Guide (UIG) >M ODULES ODULES Line Code Violations. >M ODULES ODULES Slip Error Events. >M ODULES ODULES Unavailable seconds. >DS0 M ODULES menu allows you to map network T1 time slots to the internal router. You can edit one of two...
  • Page 65 The selection list shows only the remaining ports available to be assigned. It may be necessary to unassign a port in order to reassign it elsewhere. For the . Default is OUTER >DS0 M ODULES Robbed Bit Signaling is 64200600L1#T-31A Total Access 600R User Interface Guide (UIG) >M 2>DS0 >M 2>S >M 2> , the port choices are RCU:TA 600 >M...

  • Page 66: Initial Setup

    Total Access 600R User Interface Guide (UIG) Appendix A. Configuring the Total Access 600R for Routing Initial Setup Before the Total Access 600R can be configured for routing, DS0s must be mapped. (See DS0 Mapping below.) DS0 Mapping Step From the Main menu, select C Verify that the A map that is actively running on the Total Access 600R.

  • Page 67: Setting Up Routing Options

    IP Routing There are three steps required for the Total Access 600R to be used for IP Routing: (1) Global IP Setup, (2) Ethernet IP Setup, and (3) WAN IP Setup. All of these procedures are described in the pages that follow.
  • Page 68 RIP on the Ethernet is disabled by default. If RIP needs to be enabled, press Enter on RIP [+] Press the left arrow key to return to the main Ethernet menu. If the Total Access 600R needs additional secondary IP addresses, press Enter on S to 10 additional LAN segments.
  • Page 69 • Local IP The other config items can be left at the defaults. Use the <Esc> key to return to the top level Total Access 600R menu. Confirm any necessary changes. For NAT configuration, please see IP Routing with NAT.
  • Page 70 Total Access 600R User Interface Guide (UIG) WAN IP Setup - Frame Relay IP Setup Instructions (required if the Total Access 600R is to be used for Frame Relay IP Routing on the WAN interface) Step From the Main Menu, select R WAN.
  • Page 71 UBLIC UBLIC RIVATE DDRESS RIVATE RIVATE RANSLATE 64200600L1#T-31A Total Access 600R User Interface Guide (UIG) WAN IP Setup - IP Routing with NAT Action /WAN/PPP P /IP/NAT or R ONFIG ROFILE /IP M /NAT. The NAT menu can be easily accessed by...

  • Page 72: Setting Up Bridging Options

    If the Total Access 600R will be used for bridging, continue with the steps below. Bridging There are two steps required for the Total Access 600R to be used for Bridging: (1) Global Bridging Setup and (2) WAN Bridging Setup. Both of these procedures are described on the pages that follow.
  • Page 73 Return to the DLCI list. Press Enter on the Set A CTIVE Return to the main menu. Confirm all configuration changes with “y” for yes. 64200600L1#T-31A Total Access 600R User Interface Guide (UIG) to O Action , select C OUTER to F ROTOCOL...
  • Page 74 Total Access 600R User Interface Guide (UIG) Page 74 © 2002, ADTRAN, Inc. 64200600L1#T-31A...
