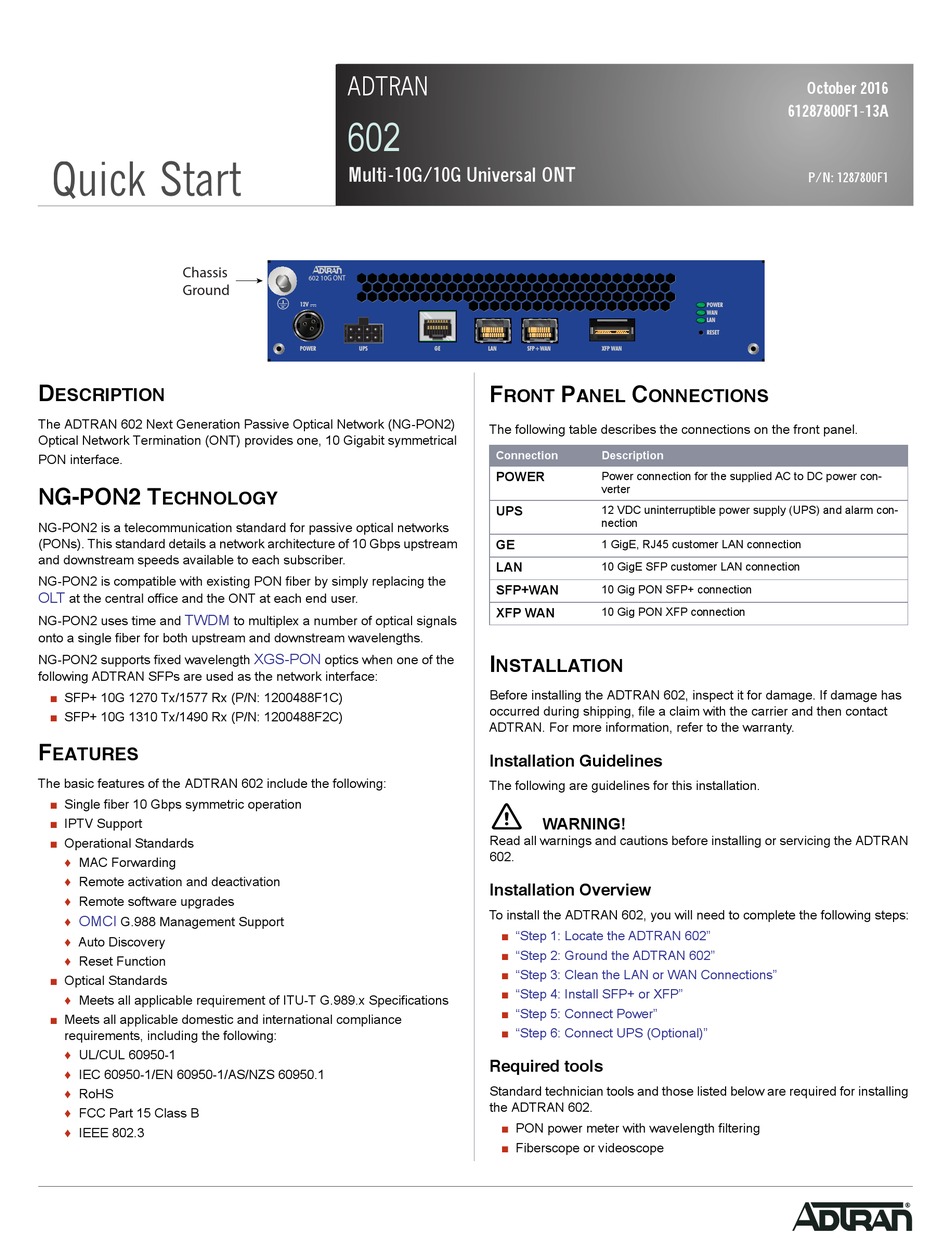

ADTRAN 602 Quick Start

Quick Start
Chassis
Ground
D
ESCRIPTION
The ADTRAN 602 Next Generation Passive Optical Network (NG-PON2)
Optical Network Termination (ONT) provides one, 10 Gigabit symmetrical
PON interface.
NG-PON2 T
ECHNOLOGY
NG-PON2 is a telecommunication standard for passive optical networks
(PONs). This standard details a network architecture of 10 Gbps upstream
and downstream speeds available to each subscriber.
NG-PON2 is compatible with existing PON fiber by simply replacing the
OLT
at the central office and the ONT at each end user.
TWDM
NG-PON2 uses time and
onto a single fiber for both upstream and downstream wavelengths.
NG-PON2 supports fixed wavelength
following ADTRAN SFPs are used as the network interface:
■ SFP+ 10G 1270 Tx/1577 Rx (P/N: 1200488F1C)
■ SFP+ 10G 1310 Tx/1490 Rx (P/N: 1200488F2C)
F
EATURES
The basic features of the ADTRAN 602 include the following:
■
Single fiber 10 Gbps symmetric operation
■ IPTV Support
■ Operational Standards
♦ MAC Forwarding
♦ Remote activation and deactivation
♦
Remote software upgrades
OMCI
♦ G.988 Management Support
♦ Auto Discovery
♦ Reset Function
■ Optical Standards
♦ Meets all applicable requirement of ITU-T G.989.x Specifications
■
Meets all applicable domestic and international compliance
requirements, including the following:
♦ UL/CUL 60950-1
♦
IEC 60950-1/EN 60950-1/AS/NZS 60950.1
♦ RoHS
♦ FCC Part 15 Class B
♦ IEEE 802.3
ADTRAN
602
Multi-10G/10G Universal ONT
602 10G ONT
12V
UPS
POWER
to multiplex a number of optical signals
XGS-PON
optics when one of the

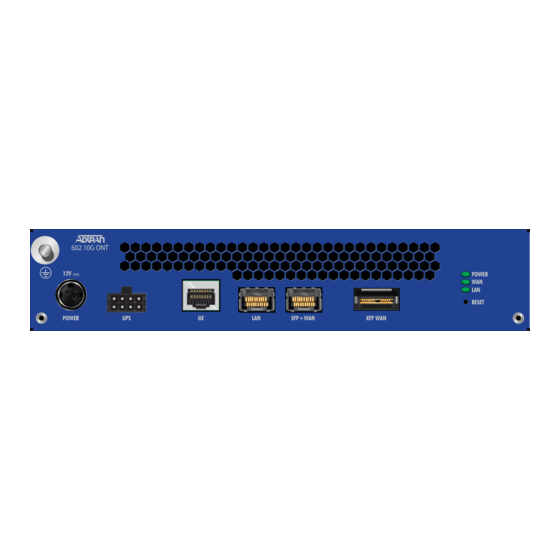

GE LAN SFP+WAN XFP WAN
F P
RONT ANEL
The following table describes the connections on the front panel.
Connection Description
POWER
Power connection for the supplied AC to DC power con-
verter
UPS
12 VDC uninterruptible power supply (UPS) and alarm con-
nection
GE 1 GigE, RJ45 customer LAN connection
LAN 10 GigE SFP customer LAN connection
SFP+WAN
10 Gig PON SFP+ connection
XFP WAN 10 Gig PON XFP connection
I
NSTALLATION
Before installing the ADTRAN 602, inspect it for damage. If damage has
occurred during shipping, file a claim with the carrier and then contact
ADTRAN. For more information, refer to the warranty.
Installation Guidelines
The following are guidelines for this installation.
f
WARNING!
Read all warnings and cautions before installing or servicing the ADTRAN
602.
Installation Overview
To install the ADTRAN 602, you will need to complete the following steps:
■ "Step 1: Locate the ADTRAN 602"
■
"Step 2: Ground the ADTRAN 602"
■ "Step 3: Clean the LAN or WAN Connections"
■ "Step 4: Install SFP+ or XFP"
■ "Step 5: Connect Power"
■ "Step 6: Connect UPS (Optional)"
Required tools
Standard technician tools and those listed below are required for installing
the ADTRAN 602.
■
PON power meter with wavelength filtering
■ Fiberscope or videoscope
October 2016
61287800F1-13A
P/N: 1287800F1
POWER
WAN
LAN
RESET
C
ONNECTIONS
