ADTRAN SHDSL NxNTU Installation And Maintenance Manual

CONTENTS
1. GENERAL ..................................................................... 1
2. CONNECTIONS ........................................................... 4
3. OPTIONING .................................................................. 7
4. SPECIFICATIONS ...................................................... 18
5. WARRANTY AND CUSTOMER SERVICE ............ 19
FIGURES
Figure 1. Express 6530 SHDSL NxNTU ...................... 1
Figure 2. Express 6530 Functional Overview ............... 2
Figure 3. Express 6530 Back Panel ................................ 4
Figure 4. Express 6530 Strap Map ................................. 7
Figure 5. Express 6530 Menu Tree ................................. 8
Figure 6. Cross-Connect Map ......................................... 9
Figure 7. Time Slot Allocation ..................................... 10
Figure 8. Framed Full E1 Service ................................. 11
Figure 9. Unframed Full E1 Service ............................. 11
Figure 10. Full Nx64k 2 Mbps Service .......................... 12
Figure 11. Back-to-Back NTU Operation ...................... 12
Figure 12. Local Dual Sided Loopback ......................... 13
Figure 13. Remote Dual Sided Loopback ...................... 13
Figure 14. Local Customer Transparent Loopback ........ 14
Figure 15. Remote Customer Transparent Loopback .... 14
Figure 16. Local Customer Nontransparent Loopback .. 14
Figure 17. Remote Customer Nontransparent
Loopback ....................................................... 14
Figure 18. Local Network Transparent Loopback ......... 14
Figure 19. Remote Network Transparent Loopback ...... 14
Figure 20. Local Network Nontransparent Loopback .... 14
Figure 21. Remote Network Nontransparent
Loopback ....................................................... 14
Figure 22. CRC-4 Detection/Generation ........................ 16
TABLES
T
able 1. LED Descriptions ............................................ 2
Table 2. Front Panel Pushbuttons .................................. 3
Table 3. SHDSL Pin Connections ................................. 4
Table 4. G.703 Pin Connections .................................... 4
Table 5. V.28 Pin Connections ...................................... 5
Table 6. X.21 Pin Connections ...................................... 5
Table 7. V.35 Pin Connections ...................................... 6
Table 8. V.36 Pin Connections ...................................... 6
Table 9. Loopback Overview ...................................... 15
Table 10. Express 6530 SHDSL NxNTU
Specifications ................................................ 18

1. GENERAL

61225101L1-5B
Express 6530 SHDSL NxNTU
Installation and Maintenance
Trademarks: Any brand names and product names included in this document are
trademarks, registered trademarks, or trade names of their respective holders.
Section 61225101L1-5B
Issue 2, December 2002
Exp res s
653 0

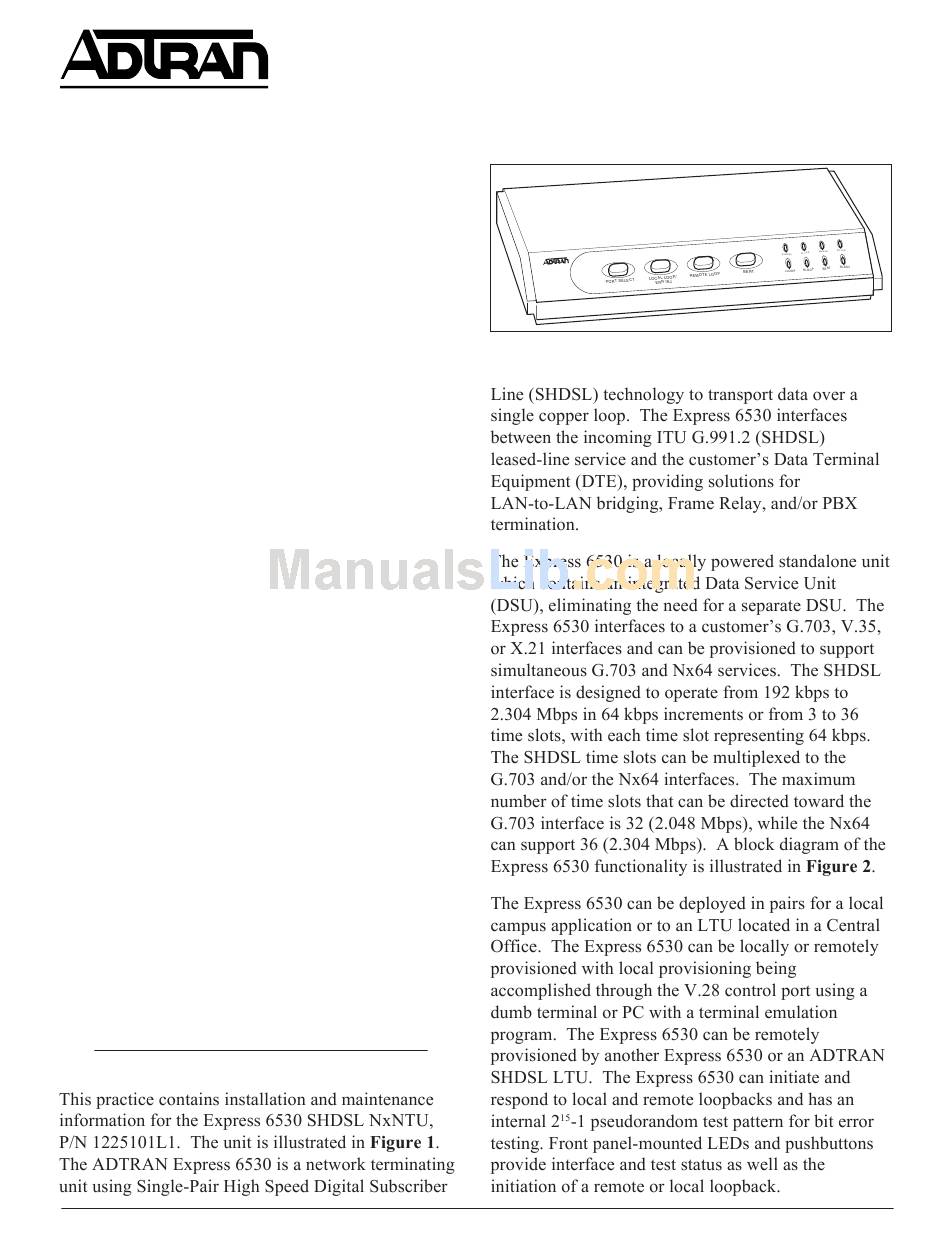

Figure 1. Express 6530 SHDSL NxNTU

1
