Install the Fixture

Instructions for installing 100–277 V standard fixtures are below. See
Emergency Multi-Cell Fixtures on page 15
fixtures.
Two-cell
fixture
B
C
Four-cell
square fixture
B
C
Note:
conduit hardware, and all cable required for installation.
1. Make sure power is off at the main circuit breaker.
2. Attach a C-clamp or other mounting hardware (not provided) to the yoke of the fixture.
3. Attach the fixture to a pipe or other approved mounting device.
4. Insert or attach additional accessories, if desired.
5. Using a Phillips head screw driver, remove the screws securing the cover to the fixture's wiring
compartment. Set the screws aside for later re-installation. The cover is grounded to the
enclosure by a tether.
6. Install conduit hardware at the conduit entry in the side of the wiring compartment.
ArcSystem Pro Multi-Cell
A
A

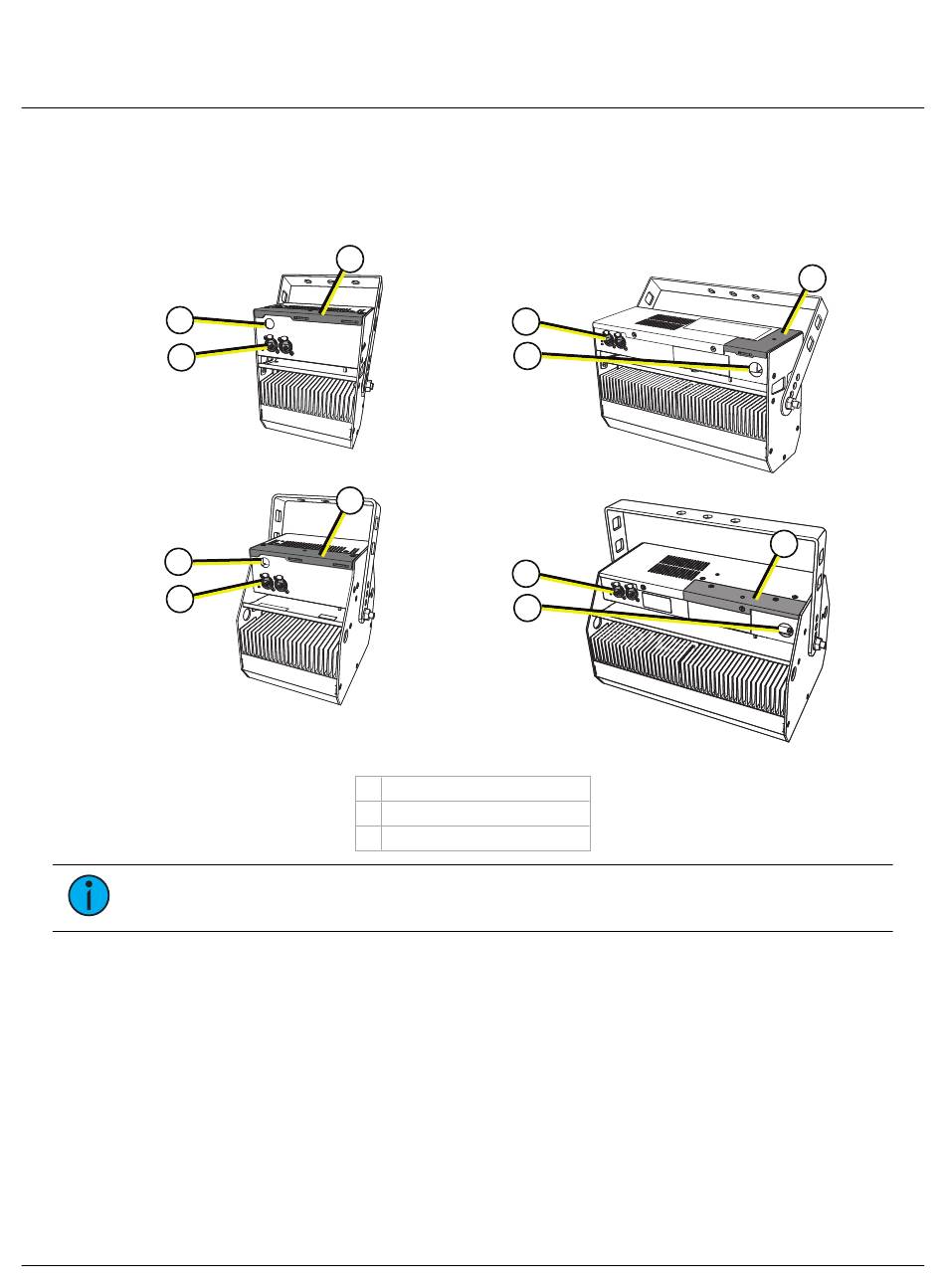

A wiring compartment
B conduit entry for 1/2 in conduit
C DMX in and thru
Mounting hardware and installation location must support the weight of the fixture,
for instructions on installing 100–277 V emergency
Four-cell
linear fixture
C
B
Eight-cell
fixture
C
B
