Terminate Power Wiring
ArcSystem 100–277 V systems are supplied with WAGO
convenient power connections in normal and emergency fixtures. Non-emergency ArcSystem
100–277 V systems are supplied with three two-position WAGO connectors (ETC part number
J4717, WAGO part number 221-412). See
on page 15
Factory Wire Colors
Color
green
black
white

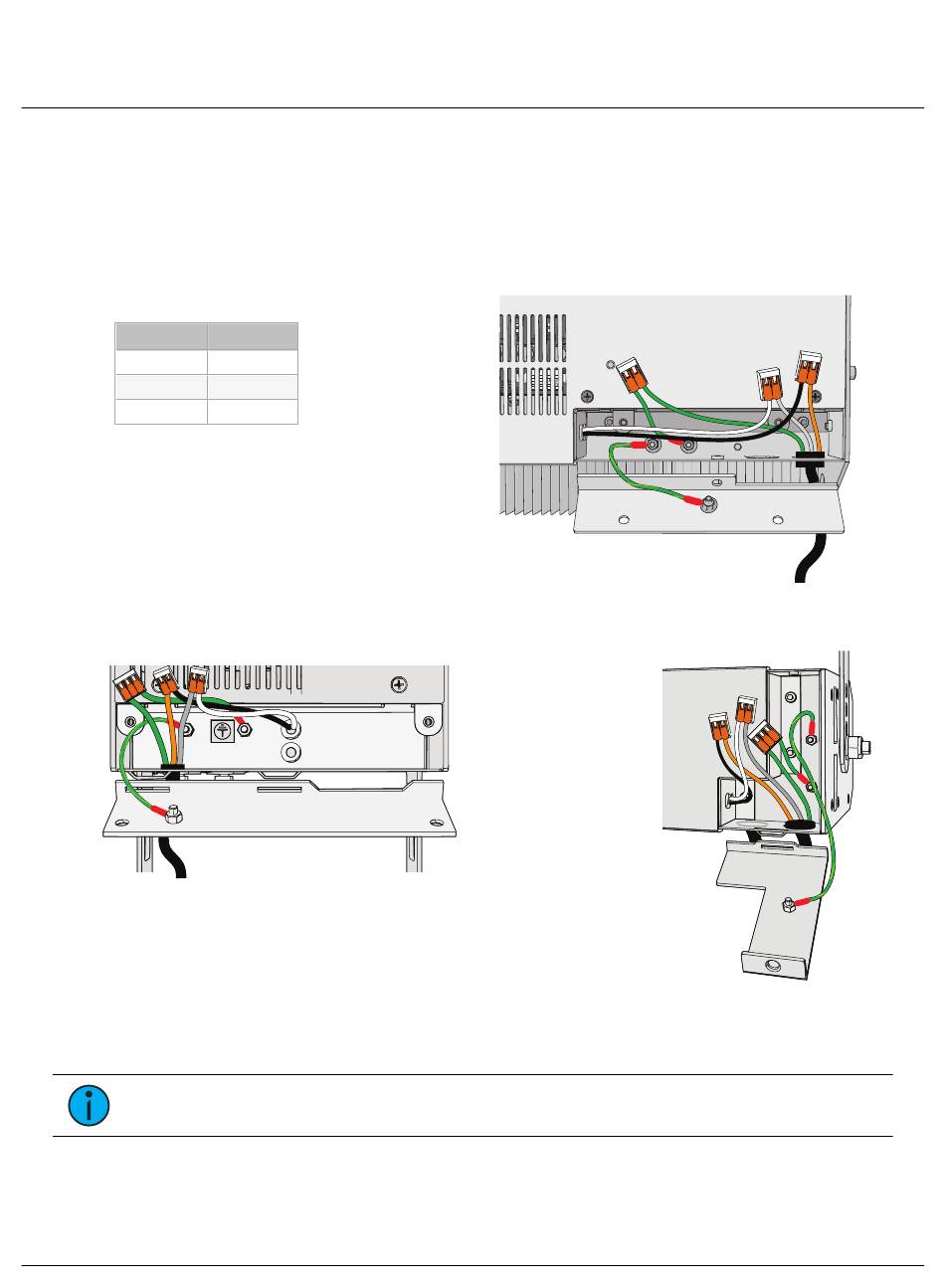

Detail of two-cell fixture or four-cell square
fixture wiring compartment
Note:
ArcSystem Pro Multi-Cell
for more information about wiring for emergency installations.
Type
ground
line/hot
neutral
Building wire colors may be different than shown.
®
connectors in the wiring compartment for
Installing 100–277 V Emergency Multi-Cell Fixtures
Detail of eight-cell fixture
wiring compartment
Detail of
four-cell linear fixture
wiring compartment
