ETC Installation Guide
ArcSystem Pro Multi-Cell
Installing 100–240 V Four-Cell Round Fixtures
Note:

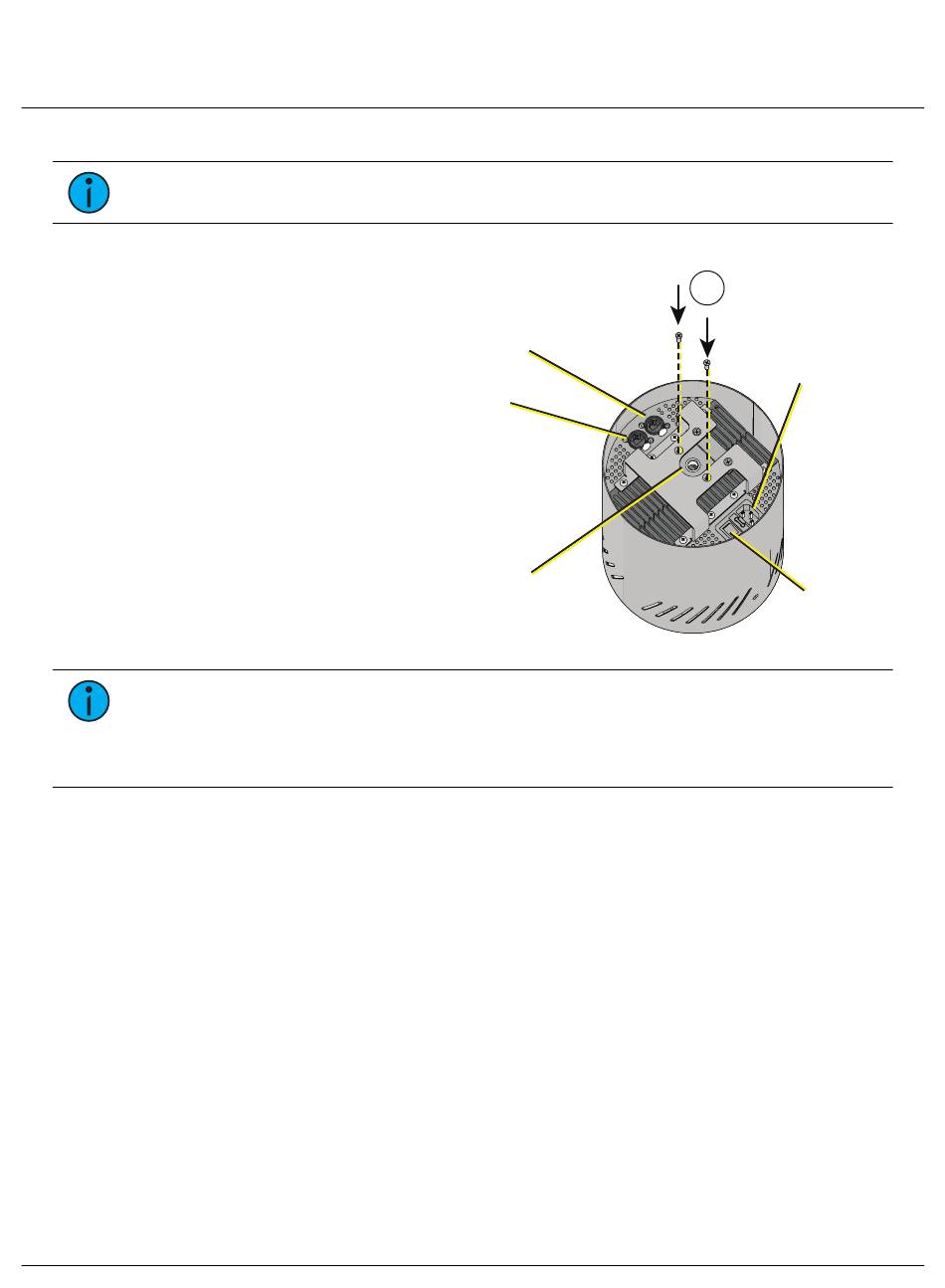

Installing to Threaded Rod
1. Install one of the provided fixture
attachment plates (nuts), M10-
1.5 mm or 1/2-13 in, with the two
provided screws.
2. Attach the fixture to the installed
threaded rod.
3. Plug in the provided power cable.
4. If using hard wired DMX, plug in
the RJ45 connector into the DMX
In port on the top of the fixture.
5. If linking additional fixtures via
DMX, plug a RJ45 cable into the
DMX Thru port on the rear of the
fixture.
6. Toggle the power switch to "ON".
Note:
line with a 120 Ω resistor.
To purchase an RJ45 terminator, please contact your ETC customer service representative
and request part number N4086.
ArcSystem Pro Multi-Cell
Mounting hardware and installation location must support the weight of the fixture.
ArcSystem fixtures are not self terminating. You must terminate the last fixture in
DMX Thru
DMX In
Fixture attachment
plate (nut)
Page 9 of 24
1
Power cable
connection
Power switch
