Alignment Front & Rear
1. The Cutter Head is aligned front and rear by adjusting the set screws on the Up & Down
Mounting Plate.
See Figure 8-1.
Cutter front to rear
alignment bolt (1) on
each side of the bottom
of the motor mounting
plate

Alignment Side to Side

2. Adjusting the cutter head side to side by turning the lower cam nuts located on the up and
down mounting plate. Do not over tighten the cams as this will cause restriction to the
Cross Feed movement.
Planer Alignment
FIGURE 8-1
WMdoc082019
Planer Alignment
Alignment Front & Rear
1a.

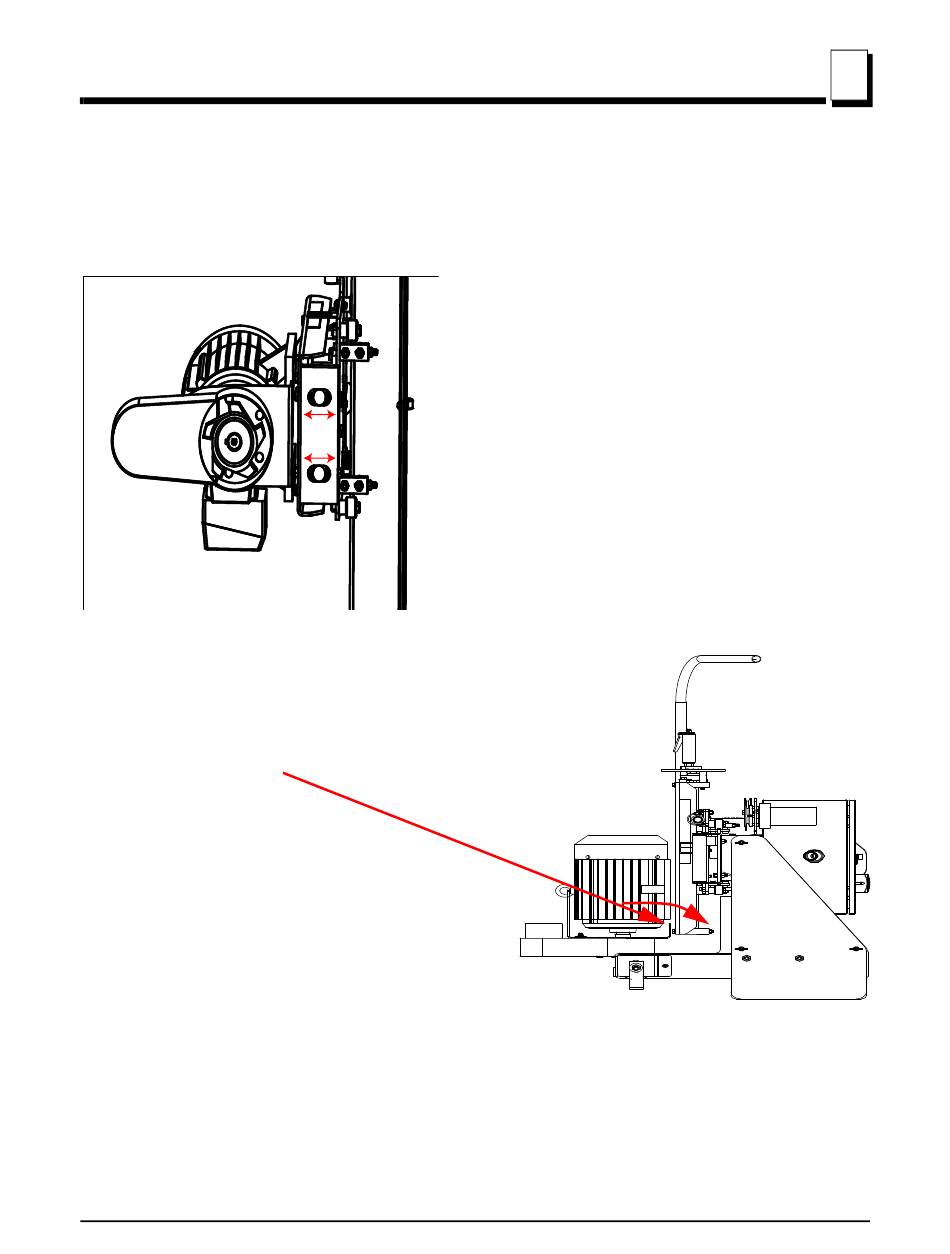

Figure 8-1 Bottom Side View. The
Motor Mounting plate can pivot for-
ward and backwards to align the cut-
ter head.
1b.
Figure 8-2 Side View. The cutter
head needs to be parallel to the material
surface. To align the cutter head loosen
the alignment bolt nut on bottom of the
back-side of the motor mounting plate
and tighten the alignment bolt to bring the
front of the cutter downward. Loosen the
rear bolt to being the front of the cutter
head upward.
Be sure to secure the opposite alignment
bolt after head is aligned.
FIGURE 8-2
