3.2

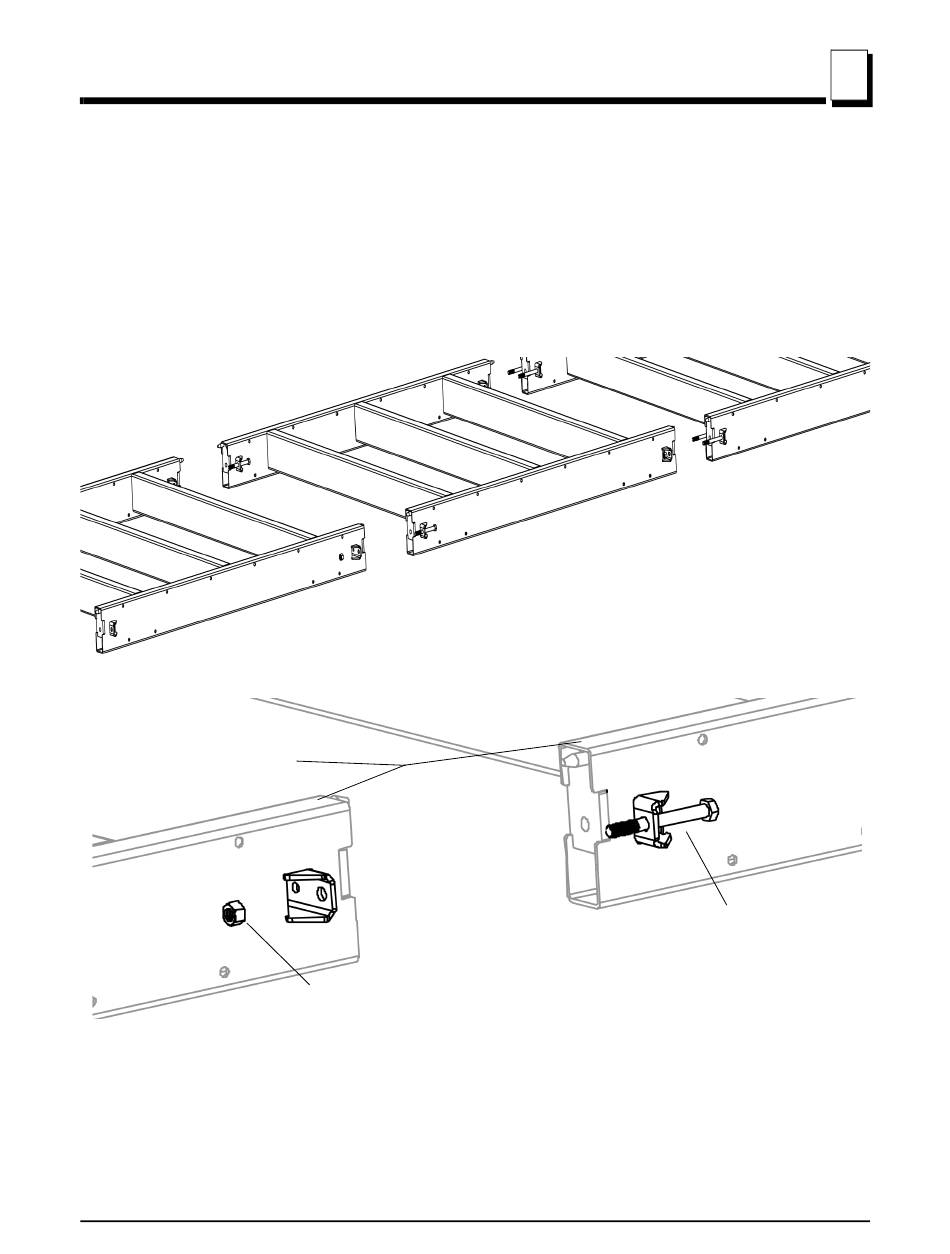

Assemble the Bed Sections

1. Lay the bed sections end-to-end so the side rail bolt holes are at the top off each section.
2. Slide the sections together and secure with four M12-110mm hex head bolts and M12
nylon lock nuts.
Align Top of Bed Sec-
tions before tightening.
NOTE: Make sure the top surfaces of the outer side of the bed sections are
aligned. It may be necessary to pry one bed section up or down until the surfaces are aligned, then tighten the
bolts.
Planer Assembly
NOTE: Disassemble any shipping straps from the bed sections before
beginning.
M12 nylon Lock Nut
(4)
WMdoc082019
Planer Assembly
Assemble the Bed Sections
FIGURE 3-2
M12-110mm Bolt (4)
FIGURE 3-3
3
3-3
