SECTION 5 PLANER OPERATION
5.1
Turning on Planer
1. Step one, make sure the Disconnect Switch, located on the unit's Electrical panel is in the
ON position.
2. Step two, Turn the Key Switch located on the unit's Electrical panel to the ON Position.
3. Step three, Disengage the E-Stop located on the unit's Pendant with a clockwise twist.
When Disengaged the E-Stop will unlock and the knob will pop outwards.
4. The unit is now ready to begin operation.
Disconnect Switch
5.2
Power Feed
1. The Planer's Power Feed is controlled by the Pendant. (Automatic Operation)
2. Use the Joystick (Left - Right) motion to control Power Feed movement. The Power Feed
speed can be controlled by the variable speed control on the pendant.
Planer Operation
Key Switch
WMdoc082019
Planer Operation

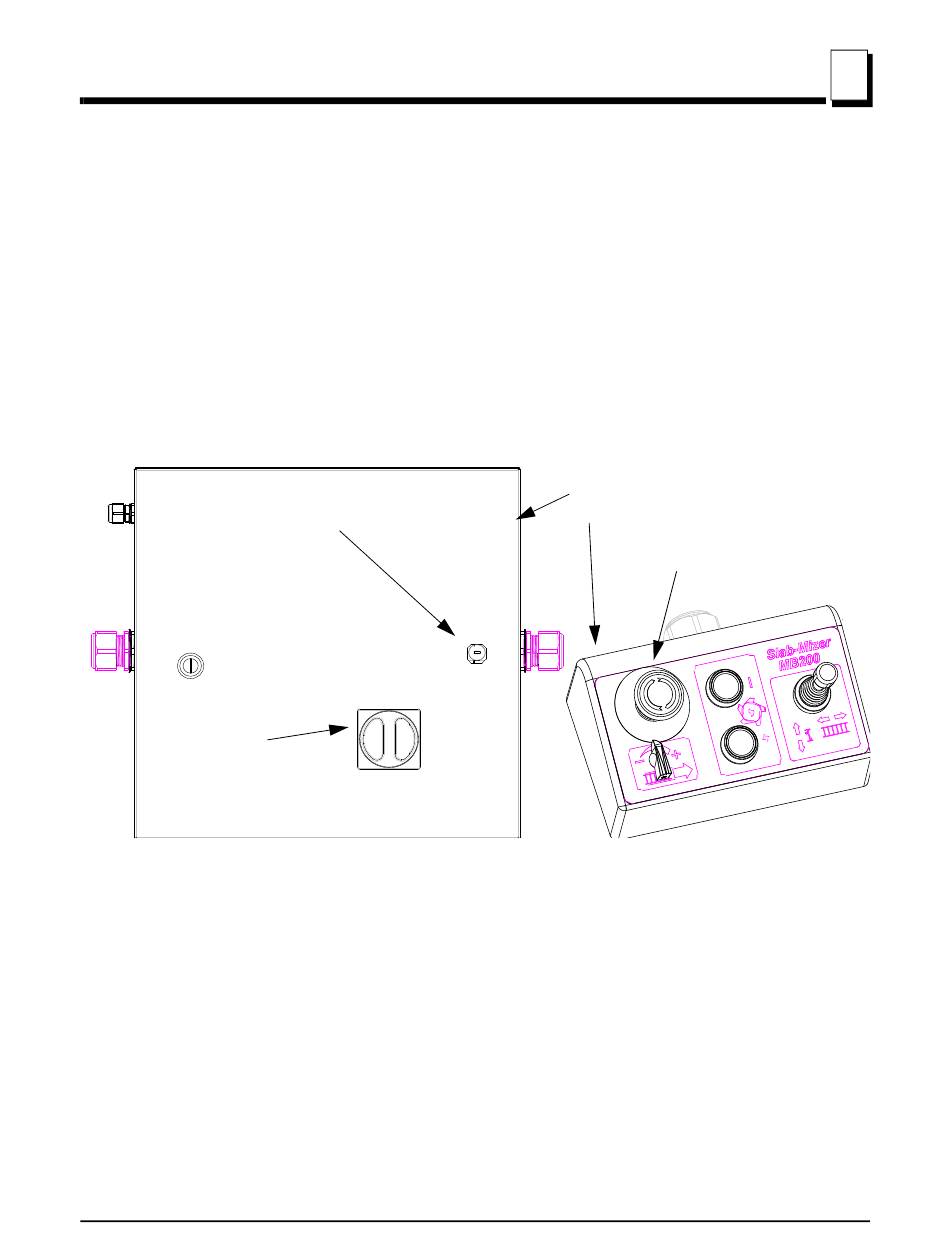

Turning on Planer
Electrical Panel
Pendant
E-Stop
5
5-1
