3 Planer Assembly

Install the Side Rails

See Figure 3-2.
Make sure the top surface of each section are flush, then tighten the fasteners com-
pletely.

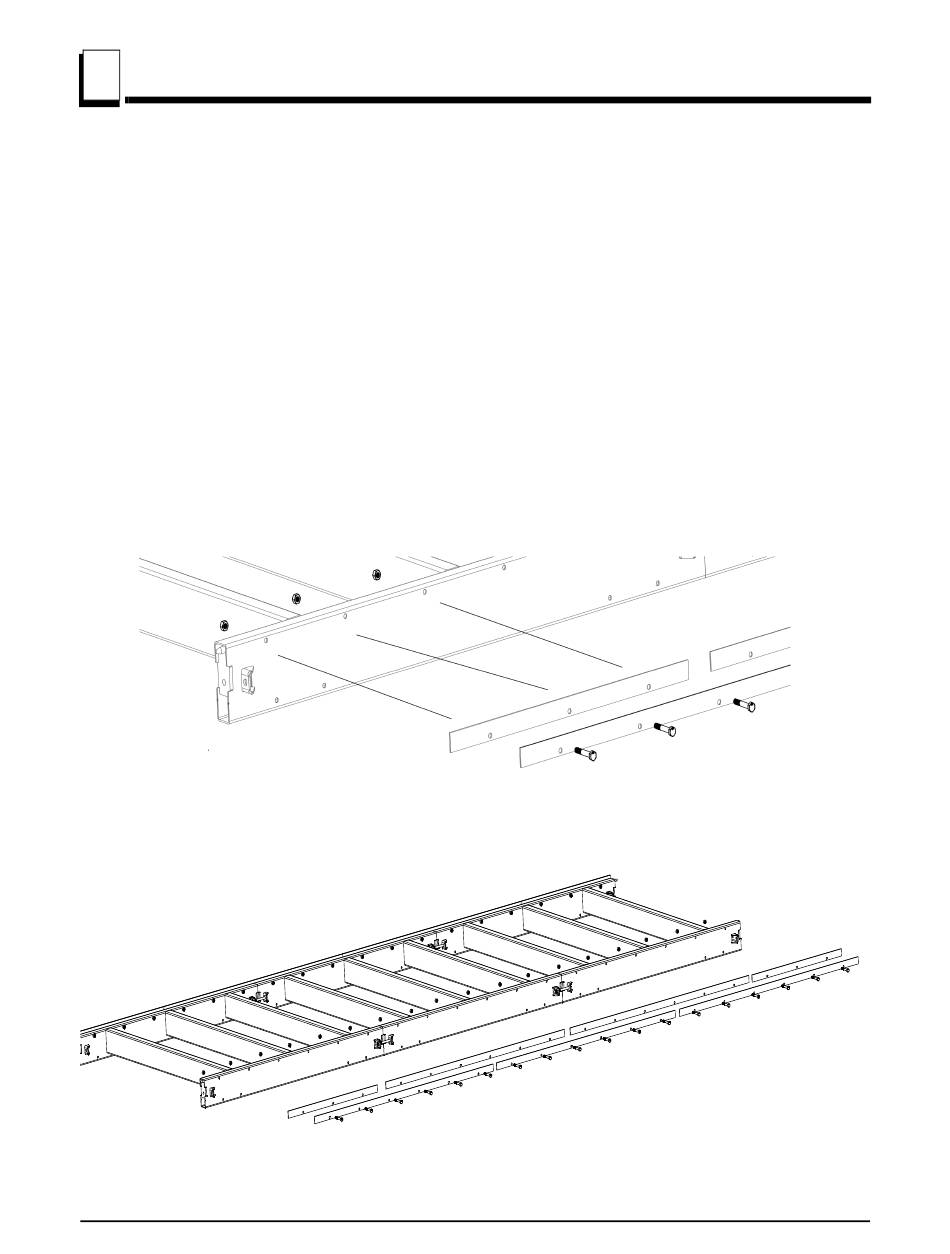

3.3 Install the Side Rails
1. Next install the side rails to the assembled bed sections.
2. Using the M10-70mm Hex Head Bolts and M10 Nylon Lock Washers to fasten the side
rails to the bed section. There are two layers per side.
3. from one end of the bed section install the first layer of side rail strips in this order
4. Repeat this for both sides of the bed sections.
3-4
Short Strip - Long Strip - Long Strip - Short Strip
The second Layer of side rails should be
Long Strip - Long Strip - Long Strip
WMdoc082019
FIGURE 3-4
Planer Assembly
