4 Planer Setup

Electrical Hookup

4.2 Electrical Hookup
1. Prepare a firm, level area where the planer can be operated. There should be enough
room around the planer for operators, sawdust removal, material loading and board
removal.
2. Have a qualified electrician install the power supply before receipt of your planer.
The power supply must meet the enclosed specifications concerning wire size, fused dis-
connect, and voltage. The electrical installation must also meet local codes.
3. Be sure the power supply cables are properly secured. Secure the power supply
cables in the provided power cord boom system.
4. Have a qualified electrician present when the planer is to be installed. All relevant
motor specifications and wiring information is provided. When scheduling an electrician
for the day of installation, please confirm that they have enough of the proper size cable
(wiring). Many electricians may not stock the cable, which could seriously delay installa-
tion and training.
4-3
IMPORTANT! This information is provided so that you may
have your site prepared for installation of your electric
planer. In order to properly install your planer, you need to:
WMdoc082019

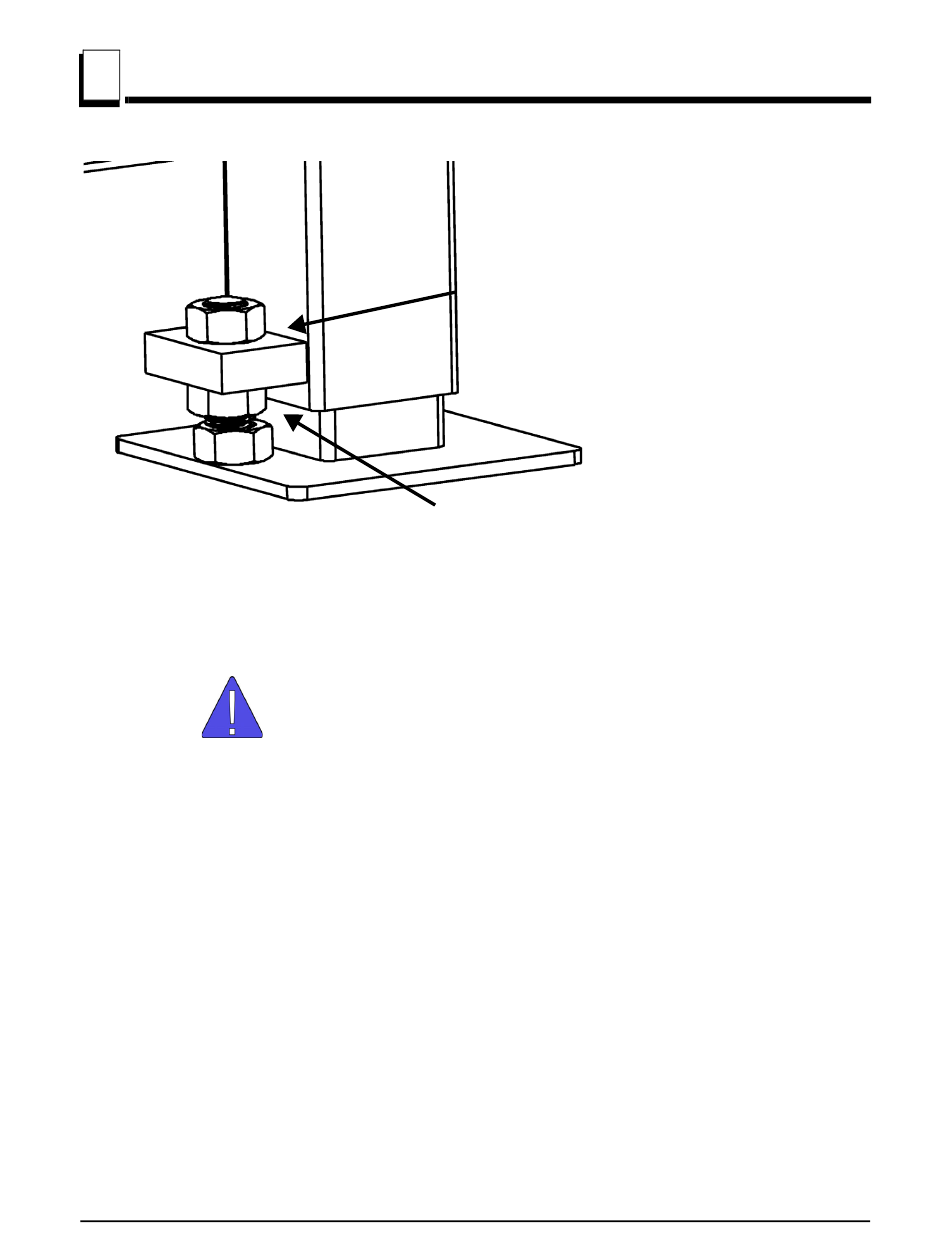

Jam Nut
Adjustment Nut
FIGURE 4-2
Planer Setup
