3.10 Install the Feed Chain
1. Connect the Feed Chain to the Feed Chain Tensioner located at the end of the bed
assembly.

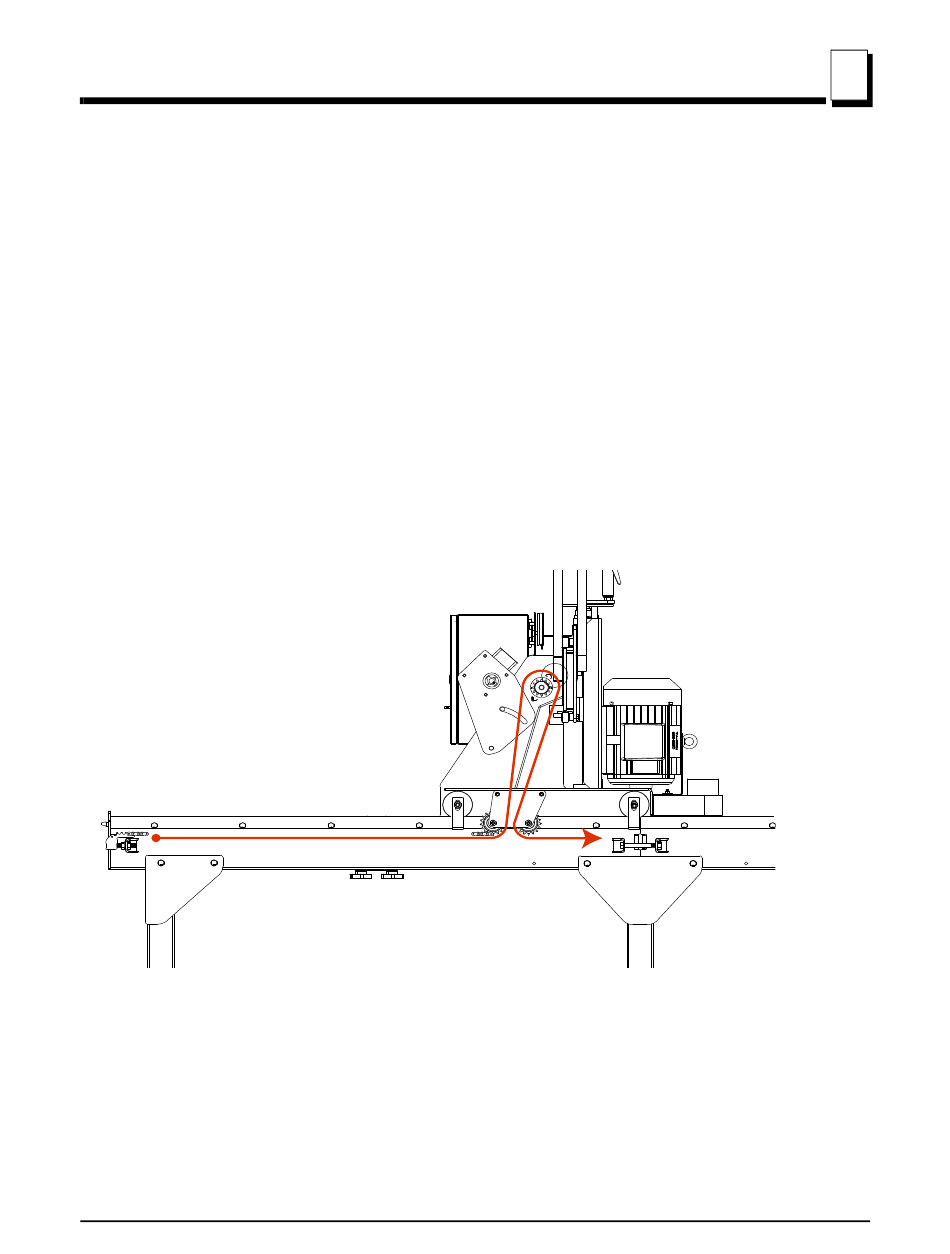

2. Run the Feed Chain under and around the drive sprockets as shown in Figure 3-10.
3. Connect the other end of the feed chain to the Feed Chain Tensioner at the opposite end
of the table assembly.
4. Repeat Steps 1-3 on the opposite side of Table and Gantry.
Planer Assembly
WMdoc082019
Planer Assembly
Install the Feed Chain
FIGURE 3-10
3
3-9
