Install the Leg Assembly

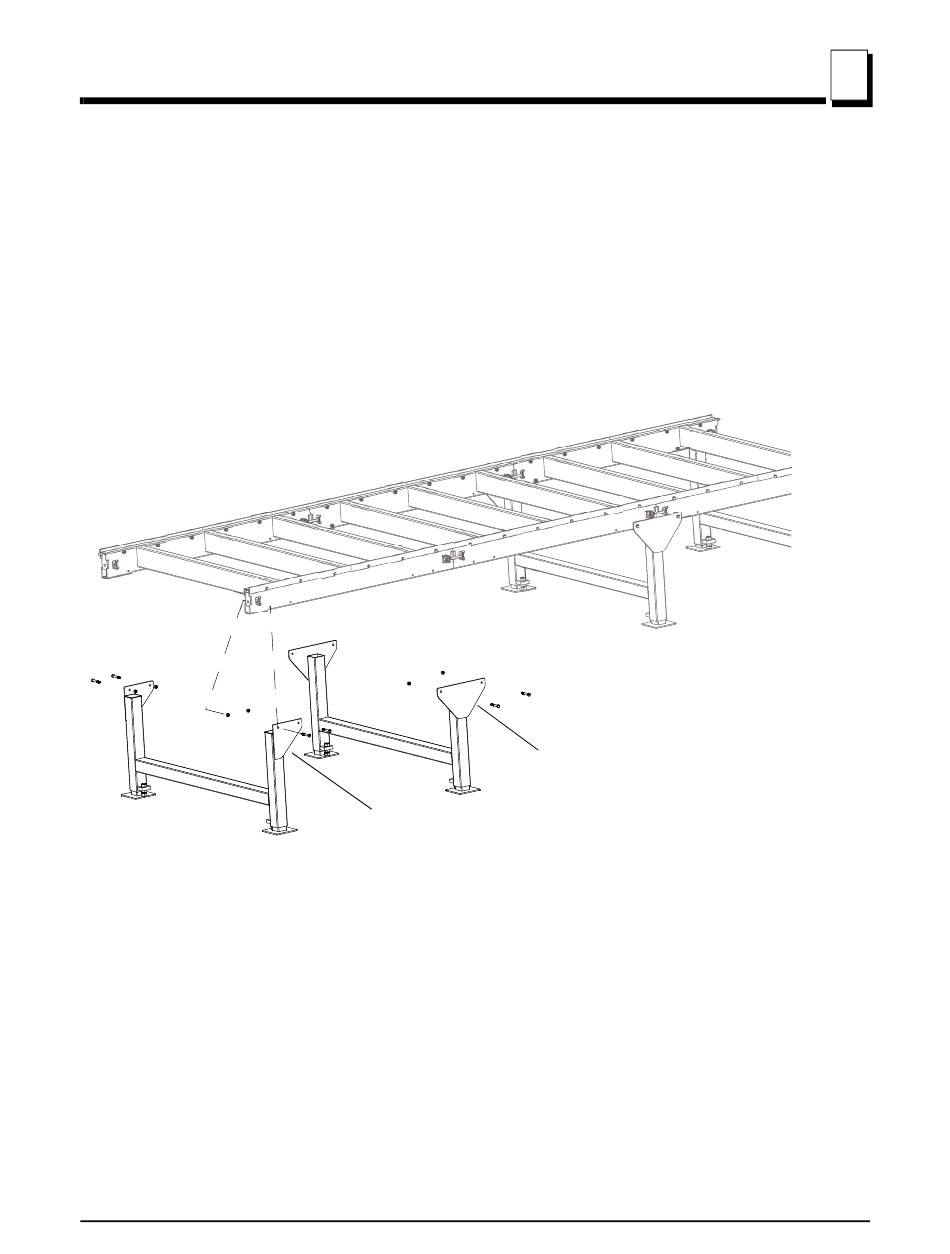

1. Attach the Leg Assemblies to the Bed Sections as shown in Figure 3-6 using the provided
M10-70mm Hex Head Bolts and M10 Nylon Lock Washers.
Planer Assembly
Note: The Leg assemblies have a left and right assembly as well as
the center leg assemblies. (Notice the Brackets). As shown Below.
Left & Right Leg Assembly
WMdoc082019
Planer Assembly
Install the Leg Assembly
Center Leg Assembly
3
FIGURE 3-6
3-5
