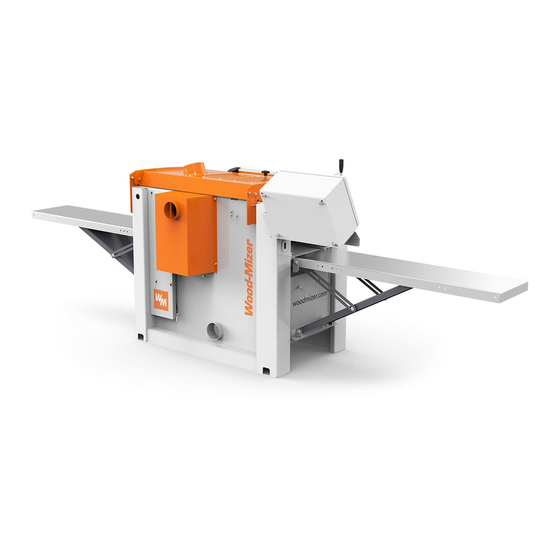

Wood-Mizer® Moulder Planer
MP260EA13U-V
MP260EB13U-V
WARNING! Read and understand this
!
manual before using this machine.
Safety, Setup, Operation,
and Maintenance
Safety is our #1 concern!
rev. B1.00
rev. B1.00
Form #2333-US

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP260EA13U-V and is the answer not in the manual?

Questions and answers

Summary of Contents for Wood-mizer MP260EA13U-V

  • Page 1 Wood-Mizer® Moulder Planer Safety, Setup, Operation, and Maintenance MP260EA13U-V rev. B1.00 MP260EB13U-V rev. B1.00 Safety is our #1 concern! Form #2333-US WARNING! Read and understand this manual before using this machine.
  • Page 2 Active Patents assigned to Wood-Mizer, LLC Wood-Mizer, LLC has received patents that protect our inventions which are a result of a dedication to research, innovation, development, and design. Learn more at: woodmizer.com/patents ©2021 Wood-Mizer LLC Printed in the United States of America, all rights reserved. No part of this manual may be reproduced in any form by any...
  • Page 3: Table Of Contents

    Table of Contents Section-Page SECTION 1 INTRODUCTION About This Manual ..................... 1-2 Getting Service....................1-2 Specifications ...................... 1-2 Options and Accessories ..................1-2 SECTION 2 GENERAL SAFETY Safety Symbols ....................2-1 Safety Instructions....................2-1 Electrical Lockout Procedures ................2-2 SECTION 3 SETUP Site preparation ....................
  • Page 4 Limited Product Warranty Wood-Mizer LLC (“Warrantor”), an Indiana corporation with its principal place of business at 8180 West Tenth Street, Indianapolis, IN 46214-2400 USA, warrants to the purchaser (“Purchaser”) that for the time periods specifically stated herein and subject to the terms, conditions and limitations stated herein, the equipment manufactured by the Warrantor will be free from defects in material and workmanship attributable to Warrantor so long as, during the warranty periods stated herein, the equipment is installed, operated and maintained in accordance with the instructions provided by Warrantor.
  • Page 5: Section 1 Introduction

    Options and Accessories Your Wood-Mizer product may have options that can be added to the machine or accessories available to purchase. Different power configurations are also available. Option: Your specific product can have accessories installed at the factory, or installed in the field. For example, a sawmill might have a debarker or power-feed option.
  • Page 6: Section 2 General Safety

    OSHA, or locally required safety procedures. It is the owner/ WARNING! Avoid contact with any hot parts operator’s responsibility and not Wood-Mizer LLC to ensure (motors). all operators are properly trained and informed of all safety protocols. Owner/Operators are responsible for following all...
  • Page 7: Electrical Lockout Procedures

    General Safety Electrical Lockout Procedures Electrical Lockout Procedures GENERAL The following simple lockout procedure is provided to assist RULES FOR USING LOCKOUT PROCEDURE owner/operators in developing their procedures so they meet the requirements of OSHA regulation 1910.147. When the energy The equipment shall be locked out to protect against accidental or isolating devices are not lockable, tagout may be used, provided inadvertent operation when such operation could cause injury to...
  • Page 8 General Safety Electrical Lockout Procedures CAUTION! Return operating control(s) to neutral or "off" position after verifying the isolation of the equip- ment. The machine or equipment is now locked out. RESTORING EQUIPMENT TO SERVICE When the servicing or maintenance is completed and the machine or equipment is ready to return to normal operating condition, the following steps shall be taken.
  • Page 9: Section 3 Setup

    Setup Site preparation SECTION 3 SETUP Site preparation DANGER! Have a certified electrician install the power to your machine. WARNING! Be sure the power supply cables are not a trip hazard. CAUTION! Improper voltage will cause damage to the motors and electronic compo- nents.
  • Page 10: Uncrate And Assemble

    4” thick. For thicker material or extra-wide planks, size your collection sys- tem accordingly. Wood-Mizer sells the MD400 chip extraction unit specially made for this model. When using a collection system, keep in mind: Check your local waste disposal codes before designing your chip collection system.
  • Page 11 Setup Feed tables (optional) 1. Install the mounting bracket onto the MP260 base table with the M8 bolts and washers; adjust the bracket in the slotted holes to mount flush with the vertical surface of the MP260 table. See FIG. 3-2 . Table bracket M8 bolts and M10 washers...
  • Page 12: Checking Rotation Direction

    Setup Electrical 6. Place a long straight edge (board, 4’ level, etc.) on the feed table to show levelness. 7. Use the adjustment bolt and the screws in the slotted holes in brackets as necessary to level the table with the straight edge/base unit’s table.
  • Page 13: Setup Of Upper And Lower Cutter Heads

    Setup Setup of upper and lower cutter heads 3. Check the rotation of the rollers. If the direction is wrong a. Turn off the main power, b. lock out the system, c. and reverse two of the three supply voltage leads. 4.
  • Page 14 Setup Leveling lower cutter straight planer knives UPPER/LOWER CUTTER DESIGN Lower Cutter Upper cutter The cutter heads are shipped with straight planer knives installed in two of the knife slots. The head can be fitted Diameter: 2 13/16" (72mm) Diameter: 2 13/16" (72mm) with 2 additional straight planer knives or moulding knives in the two empty slots Width: 11 13/16"...
  • Page 15 Setup Leveling lower cutter straight planer knives 1. Place the straight edge across the corner of the cast iron table bed. (The base of a combination square is shown as the straight edge.) See FIG. 3-8 .. Straight 2. Rotate the head so that the edge of the planer knife is directly under the straight edge.
  • Page 16 Setup Initial setup of upper cutter NOTE: Tighten all the gib screws simultaneously, at the same rate, moving back and forth between screws. Continue repeating the procedure between screws until they are very tight. 11. Tighten the height adjusting screws until they touch bottom of the indentations of the knives. (This will be a small adjustment.) CAUTION! If the height adjusting screws are screwed too tight, the knife will crack.
  • Page 17 Setup Leveling the upper cutter straight planer knives Leveling the upper cutter straight planer knives The upper cutter knives are adjusted in a similar way to the lower cutter knives. However, there is an alumi- num knife-setting block that is supplied with the machine for the purpose of setting the upper cutter knives.
  • Page 18 Setup Adjusting upper cutter depth NOTICE The 1mm plate with the flat holes should not be used alone. When used, it should be place on the bottom or sandwiched between plates. The adjusting plates are held in place by countersunk screws. NOTE: The spacer plates can be fitted in two ways.
  • Page 19: Side Cutter Setup

    Setup Side cutter setup The lower and the upper cutter have four knife slots each. The machine comes with two mounted planing knives in each horizontal cutter. In the two empty slots you can mount moulding knives of different sizes and profiles. WARNING! Ensure the cutter head is balanced.
  • Page 20 Setup Side cutter setup REMOVING RIGHT OR LEFT SIDE CUTTER Movable side cutter WARNING! Wear gloves when working with knives in the machine. Use the 30 mm and 12 mm open-end wrench in com- bination to loosen the nut on the top of the shaft. See Fixed side cutter FIGs 3-17 and 3-18.
  • Page 21 Setup Setting the movable side cutter head Side cutter shims are used to raise the cutter head up and down on the cutter shaft. Using shims allows the precise setting of the cutter head, and when locked in place, your setting will not change. Also, shims pro- vide you the ability to easily change your settings, as well as the ability to return to specific settings, as long as you record the shims that are used in that particular setup.
  • Page 22: Feed Rollers

    Setup Feed rollers The pressure roller bracket fits into a groove just in front of the side cutter and can be moved in or out as needed to allow for varying width boards. Where this bracket is placed also determines the widest board the machine will accept.
  • Page 23: Leveling The Machine Table

    Setup Adjusting the feeding speed The rubber roller should also be adjusted so that it applies just the right pressure to the work piece. Remember that this feed roller should be set by the thickness the work piece has when leaving the cutters. NOTICE Wood debris can accumulate under the feed roller spring mounted bearings.
  • Page 24: Running The First Test Board

    Setup Running the first test board NOTICE When the bearing housings of the upper cutter have been adjusted, or when the take-off of the planing knives has been altered, the rotating scale has to be calibrated. Possibly, the pointer on the height scale on the front side of the machine also has to be adjusted.
  • Page 25 Setup Side cutter fence setup Side cutter fence setup The right side cutter has two fences: the first and second side cutter fence. They are both attached in similar fash- ion to the cast iron table. First side cutter fence Second side cutter fence FIG.
  • Page 26: Section 4 Operation

    Operation Operation SECTION 4 OPERATION Operation DANGER! Keep hands away from the knives. Do not operate the planer moulder without all covers and guards in place. WARNING! Do not operate the machine standing directly in front of the input or output tables;...
  • Page 27: Planing Tips

    Operation Planing tips CAUTION! After every emergency stop wait at least 10 seconds before restarting the machine. If you do not wait, the fuse on the brake card may blow or, if that fuse fails, you will damage the brake card. Planing tips General recommendations If the knives in the upper cutter protrude too much, the last feed roller will not take hold of the workpiece.
  • Page 28 Spacers can be used to add height to the upper cutter head; however, it is best if there is some overlap of the knives, especially with straight knives. Cutter heads with a 4” height designed for this model can be ordered through Wood-Mizer. Saving a moulding pattern If you have produced a moulding that you know you will produce in the future, it can be wise to take some mea- sures before removing the mounted knives.
  • Page 29: Section 5 Maintenance

    Maintenance Overview SECTION 5 MAINTENANCE DANGER! Remove power before clearing debris or any other maintenance activity. Failure to follow this will result in serious injury or death. Follow the OSHA lockout procedures reprinted in the safety section. (See Electrical lock- out procedures SECTION 2 General Safety.)
  • Page 30: Lubrication Points

    Maintenance Lubrication points 6. Clean and lubricate the pressure rollers so that they can move easily. 7. Check all belt tensions. 8. Ensure that all screws and bolts are tight. 9. Ensure that all cables and connections are in good condition. 10.
  • Page 31 Maintenance Lubrication points 2. Lubricate the trapezoidal threaded bar located at all four corners FIG. 5-2 3. Lubricate the chain and sprockets for height adjusting the table. Check the tension of the chain.. View from bottom, looking up; outfeed side; cover panel removed FIG.
  • Page 32: Cleaning The Metal Feed Rollers

    Maintenance Cleaning the metal feed rollers Remove the cover and lubricated the chain transmission of the feed rollers. FIG. 5-5 Lubricate spacers, pressure rollers, and side rollers. FIG. 5-6 Cleaning the metal feed rollers Pitch may build up on the metal feed rollers from planing high resin woods. 1.
  • Page 33: Replacing Feed Chain Gear Sprocket Set Screw

    Maintenance Table lift assist chain adjustments Table lift assist chain adjustments The height of the cast iron table on your machine is adjusted by operating the removable crank handle located on the infeed end of the machine. The crank handle is connected to a chain, which in turn is con- nected to the four threaded steel rods, which are threaded through the cast iron table.
  • Page 34: Removing And Replacing Feed Chains

    Maintenance Removing and replacing feed chains 1. Use a 4 mm hex key to remove set screws. Sprocket set screws If sheared, remove these set screws and re-install new set screws in the feed roller sprocket. 2. Activate the feed mechanism until the set screw is opening downward.
  • Page 35: 5.10 Replacing Belts

    Maintenance Replacing Belts NOTICE The C-clip is made from spring steel and can easily fly off, getting lost during the removal operation. Perform this operation in a clean, well-lit area. 5.10 Replacing Belts The power to your machines vertical and horizontal cutters is transferred from electric motors via multi-ribbed rub- ber belts.
  • Page 36 Maintenance Replacing movable vertical cutter belt 6. Back out the tension adjusting bolt until the front of the bolt is flush with the front of the belt tension bolt bracket, but do not remove the bolt from the bracket. 7. From the front of the machine, pull the motor mount assembly towards you. NOTE: The motor mount assembly’s movement towards you is limited to approximately ½...
  • Page 37: 5.11 Sharpening Knives

    Maintenance Sharpening Knives 4. Use a 6 mm hex key to loosen mounting screws one turn. Mounting screws Cutter pulley 5. Loosen (do not remove) 4 cap head mounting screws holding the pulley of the stationary vertical cutter. These screws pass through slots in the motor mount and fasten into the cast iron table.
  • Page 38 Maintenance Sharpening Knives On planer knives and moulding knives, it is possible to bring the knives back to a sharp condition by sharpening the face of the knife. Running a diamond stone against the face will bring knives back to a sharp condition. This can be done about 3 times before the knives will need to be sharpened by a sharpening machine.
  • Page 39: Section 6 Troubleshooting

    Troubleshooting SECTION 6 TROUBLESHOOTING DANGER! Disconnect power before clearing debris or any other maintenance activity. Failure to follow this will result in serious injury or death. Follow the OSHA lockout procedures reprinted in the Safety section. Keep hands away from the knives. Do not operate the planer moulder without all covers and guards in place.
  • Page 40: Mechanical Or Electrical Problems

    Troubleshooting Mechanical or electrical problems Problem Possible Cause Solution The width of the machined board differs. 1. The workpiece moves away from the side 1. The right-side fences are set incorrectly. Adjust fences. them according to the instructions. 2. The locking handle of the movable cutter has 2.
  • Page 41 Troubleshooting Mechanical or electrical problems Problem Possible Cause Solution The workpiece is fed poorly or not at all 1. The shear pin in the out-feed roller is broken. 1. Remove the planetary gear and replace the broken through the machine. shear pin.
  • Page 42 Troubleshooting Mechanical or electrical problems Problem Possible Cause Solution Vibration or rumble in the side cutter. 1. The moulding knives are incorrectly mounted. 1. Demount the cutter head, and clean and mount the knives and the chip breakers correctly. Identical 2.
