FORM 2452
SECTION 1 SLAB-MIZER AUTO FEED INSTALLATION
WARNING!
disconnect the battery ground terminal, if applicable.
On electric equipment, lock out power supply before performing any
installation. See Electrical Lockout Procedures (OSHA regulation
1910.147, appendix A reprinted in the Operator's Manual).
Ensure all electrical installation, service, and/or maintenance is per-
formed by a qualified electrician.
Part No. MB200AF

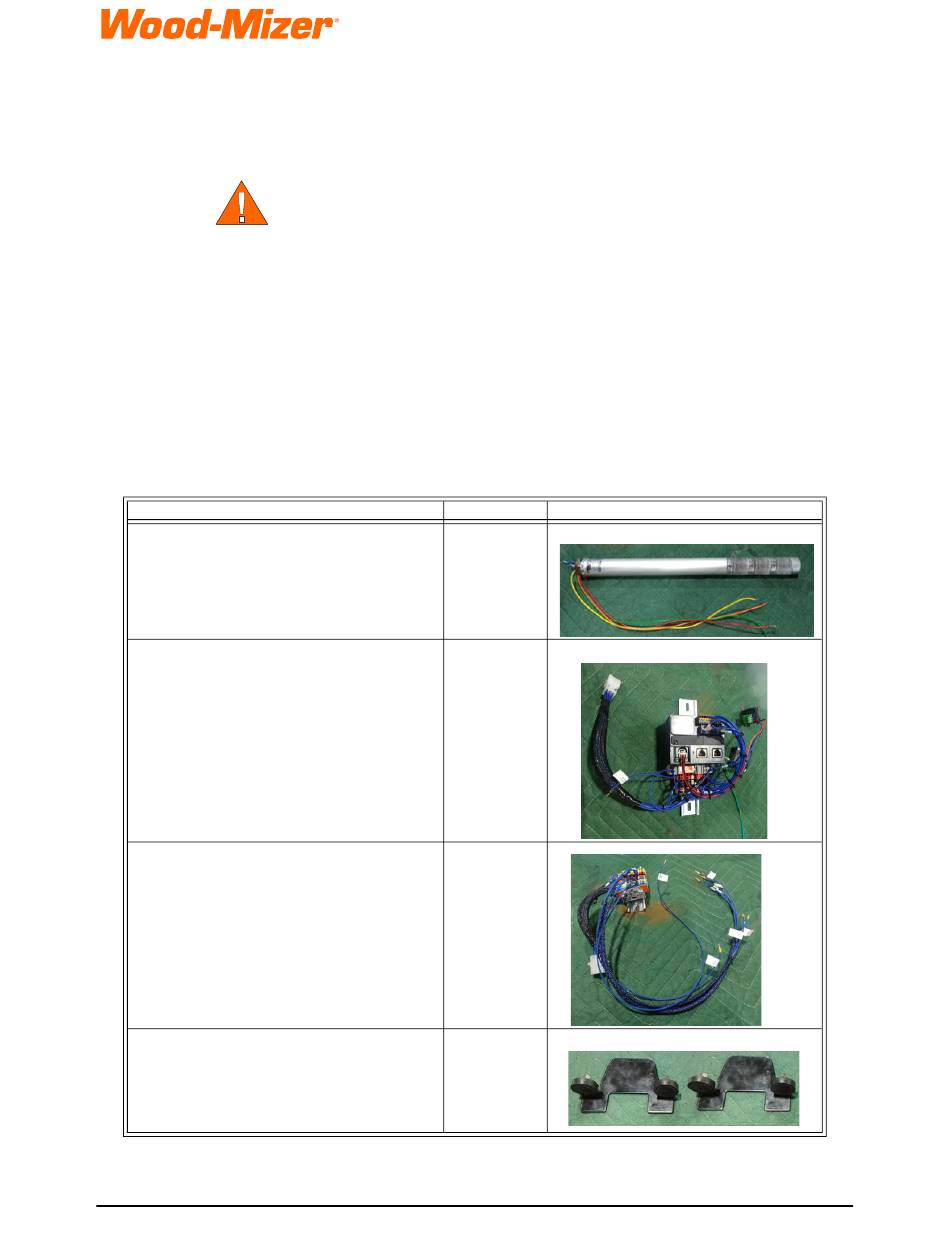

Items included in MB200AF.
Description
Light
PLC Harness
Terminal Block Harness
Feed Limit Bracket
Form 2452
SLAB-MIZER AUTO FEED INSTALLATION
Turn the base unit's power to OFF, remove the key, and
Quantity
1
1
1
2
1 of 18
Publication 2/17/21
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wood-mizer SLAB-MIZER MB200AF
Summary of Contents for Wood-mizer SLAB-MIZER MB200AF
- Page 1 SLAB-MIZER AUTO FEED INSTALLATION FORM 2452 SECTION 1 SLAB-MIZER AUTO FEED INSTALLATION WARNING! Turn the base unit’s power to OFF, remove the key, and disconnect the battery ground terminal, if applicable. On electric equipment, lock out power supply before performing any installation.
- Page 2 SLAB-MIZER AUTO FEED INSTALLATION Description Quantity Front panel swiches Cross feed stop bracket Cross feed rope bracket Proximity switch with cables and nuts Small Cord Grips Publication 2/17/21 2 of 18 Form 2452...
-
Page 3: Tools Needed
SLAB-MIZER AUTO FEED INSTALLATION Description Quantity Decals Slab-Mizer STOP! Automatic Read and understand operator’s manual and all safety instructions before setting up, operating or maintaining this machine. STOP! Failure to do so may result in Always wear eye, ear, injury, death or equipment respiration and foot damage. -
Page 4: Installation
SLAB-MIZER AUTO FEED INSTALLATION Installation NOTICE Securely cover all electrical com- ponents inside the control box before drill- ing holes. Vacuum up any debris. Metal debris may cause equipment dam- age. FIG. 2 1. Apply the MB200AF control decal on the front door as shown in FIG. 4. 3/8”... - Page 5 SLAB-MIZER AUTO FEED INSTALLATION 3. Use the step drill bit to drill the four holes through the control box door as shown in FIG. 4. Fold or cut the tem- plate to match the door edge to the template line. Use tape to secure template to the control box door...
- Page 6 SLAB-MIZER AUTO FEED INSTALLATION 5. Drill two holes in control box right side as shown in FIG. 6. Fold or cut the tem- plate to match the door edge to the template line. Use tape to secure template to the control box door Aligns to the box, not the door! FIG.
- Page 7 SLAB-MIZER AUTO FEED INSTALLATION Terminal Block Harness INSERTING WIRES 1. Press down in the square hole with the small screwdriver and hold. 2. Push the wire into the adjacent round hole. Round hole 3. Release the screwdriver. 4. Gently tug on the wire to ensure it is secure.
- Page 8 SLAB-MIZER AUTO FEED INSTALLATION 9. Put wire from 5 Orange terminal block to main motor VFD R1C. FIG. 9 10. Remove orange wire from small feed motor VFD LI1 and put in 7 Yellow terminal block. 11. Put wire from 7 Yellow terminal block to small feed motor VFD LI1 12.
- Page 9 SLAB-MIZER AUTO FEED INSTALLATION 13. Put wire from 8 Gray terminal block to small feed motor VFD LI2 14. Remove brown wire from cross feed relay A1 and put in 9 Blue terminal block. 15. Put wire from 9 Blue terminal block to cross feed relay A1 FIG.
- Page 10 SLAB-MIZER AUTO FEED INSTALLATION Install PLC and Switches on Door 1. Use the #10-24 screws, washer, and nuts to mount PLC to the inside of the control box door, using the holes previously drilled. 2. Mount the potentiometer on the door. a.
- Page 11 SLAB-MIZER AUTO FEED INSTALLATION 4. Run the wire from the red (24+) terminal blocks to the same side of keyed switch on door that has a dark blue wire. Light blue wire Dark blue wire FIG. 14 a. Lift the white lever. b.
- Page 12 SLAB-MIZER AUTO FEED INSTALLATION 7. Connect the light wires as shown in FIG. 16. NOTE: Numbers begin with 0. TERMINAL BLOCK FIG. 16 8. Put orange wire to OUT#2 position -- NOTE: Numbers begin with 0. 9. Put red wire on OUT#1 position. 10.
- Page 13 SLAB-MIZER AUTO FEED INSTALLATION Install Proximity Switches NOTE: The cables are labeled “Feed” and “Cross Feed.” The Feed cable mounts on the side of the gantry. See FIG. 18. The Cross Feed mounts on the cross feed rope bracket. See FIG. 22. Feed Cable Side 1.
- Page 14 SLAB-MIZER AUTO FEED INSTALLATION 5. Use a straight edge to align the switch within 1/32” to 1/16” parallel to the edge of the frame. See FIG. 19. 1/32 -1/16” NOTE: With power on, the switch will light when the limit stop bracket is close enough for operation.
- Page 15 SLAB-MIZER AUTO FEED INSTALLATION NOTE: The switch cables are longer than needed. Either cut and strip the wires to a reasonable length, or coil the excess wire to fit into the control box. g. Connect the black, brown, and blue wires only to the PLC as shown in FIG. 21. FEED SWITCH CABLE...
- Page 16 SLAB-MIZER AUTO FEED INSTALLATION Cross Feed Cable NOTE: Check your cross feed rope bracket. If it does not have the switch mounting hole shown in FIG. 22 then replace it with the provided bracket. Cross feed rope bracket switch mounting hole FIG.
- Page 17 SLAB-MIZER AUTO FEED INSTALLATION 4. Tighten the switch mounting nuts when properly positioned. 5. Route the switch cable along the cross feed cable arm and cable, securing it with cable ties as needed. 6. Insert the cross feed cable into the remaining cable grip installed with the feed cable. NOTE: The switch cables are longer than needed.
-
Page 18: Operation
SLAB-MIZER AUTO FEED INSTALLATION Operation WARNING! Follow all safety instructions found in the Slab-Mizer oper- ators manual. 1. Lift the cutting head to ensure that it clears any wood that is placed on the planer, and does not contact anything unintentionally. 2.
