Electric Wiring

See Table 3.
disconnect switch within sight of the machine. The disconnect must be equipped with
Class J fuses. Fuse size will be determined by the conductor wire size, but must be at
least as large as the full-load amperage of the machine (See Below). Fuses supplied in
the planer electrical control are sized for short-circuit protection only.

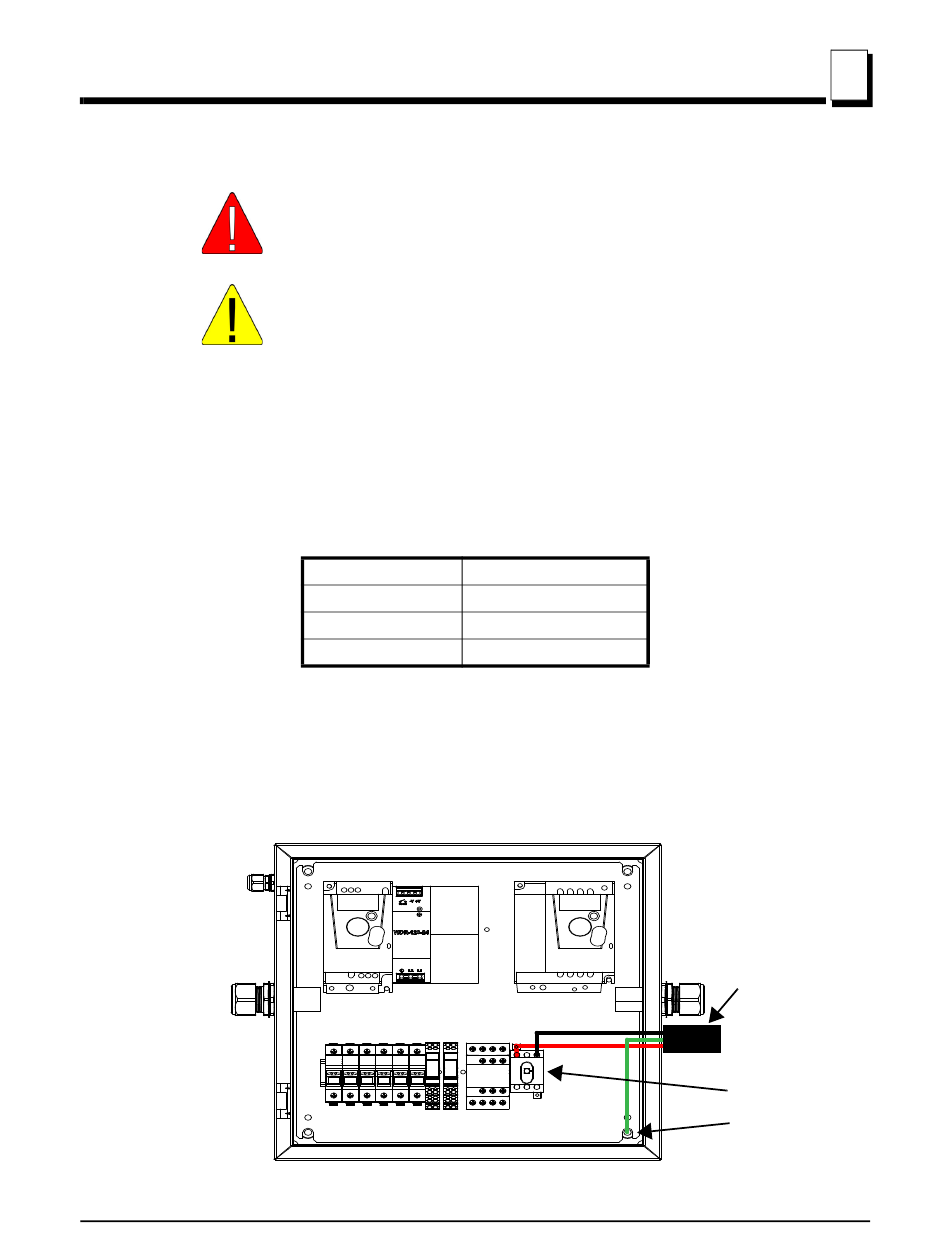

See Figure 4.3Route the incoming power supply to the main electrical control cabinet.
Punch a knockout in the box and route the cable through the box and secure the cable
properly. Connect to cable wires to the power disconnect in the Lower-right corner of the
cabinet. Connect the ground wire to a panel mount stud.
Planer Setup
DANGER! Make sure all electrical installation, service
and/or maintenance work is performed by a qualified elec-
trician and is in accordance with applicable electrical codes.
CAUTION! Make sure that the machine you have pur-
chased can be powered with the provided power source
before making any connections. Do not connect the
machine to the improper power source. Serious injury,
death or damage to the equipment will result.
All electrical installation must meet local electrical codes. Install a fused
Model
MB200EA3U
WMdoc082019
Full Load Amperage
30A
TABLE 3
Planer Setup 4
Electric Wiring
Incoming
Power Supply
Power
Disconnect
Panel Mount
Stud (Ground)
FIGURE 4-3
