Manual Operation

1. The Planer can be operated manually by the user in order to target specific planing
needs. To convert the planer to manual operation follow the steps below.
2. Loosen the drive Belt by loosening the Drive Belt Tensioner Knob and pivoting the Drive
Motor up to loosen the belt, once loose, tighten the tensioner knob to secure the drive
motor. See Figure 7.
3. Remove the Cross Feed Drive Rope from the rope mount and remove rope from around
the drive pulleys in order operate the cross feed manually. See Figure 8
Planer Operation
Cutter Head Control
WMdoc082019
Planer Operation
Manual Operation

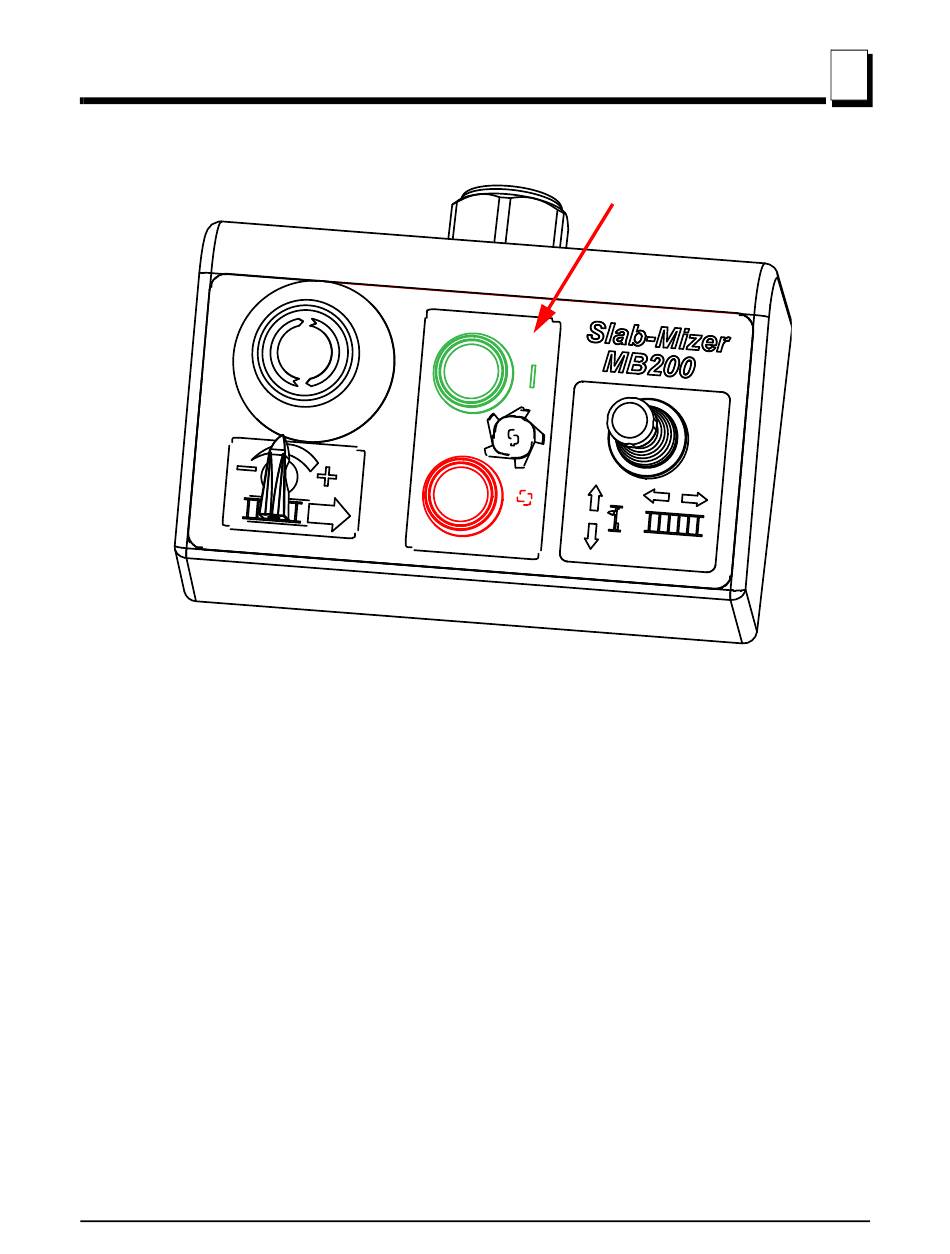

FIGURE 6
