Fuses - Check

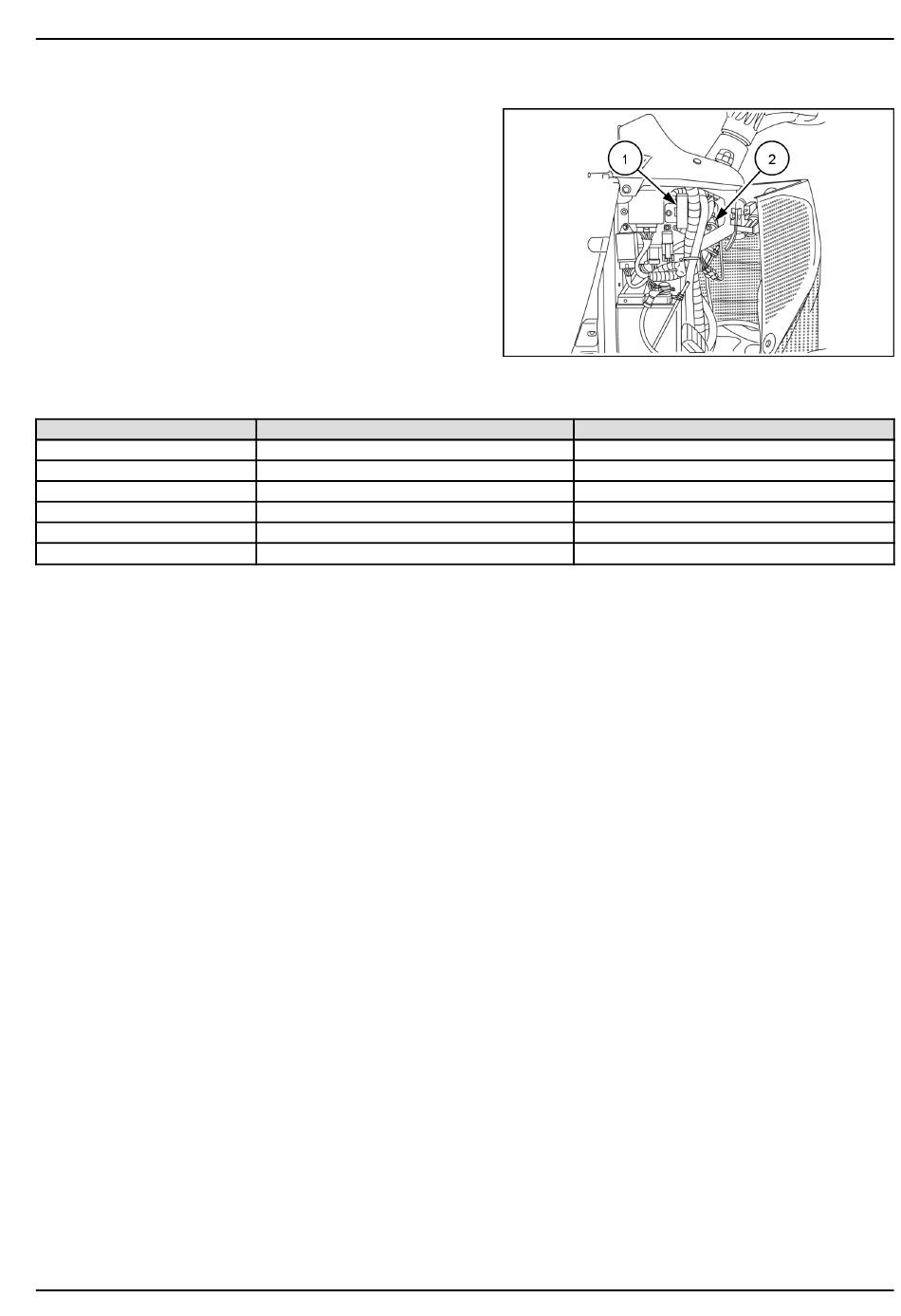

The location of the fuse block (1) is behind the screen
panel on the left-hand side.
The location of the in-line 30 A fuse (2) for the stop sole-
noid circuit is behind the screen panel. Always replace
blown fuses with the size specified for that circuit.
The fuse block contains the following fuses (top to bottom):
Fuse #
F1
F2
F3
F4
F5
F6
7 - MAINTENANCE
Fuse Size
30 A
15 A
10 A
10 A
10 A
10 A
7-43
NHIL17CT02190AA
Circuit Protected
Driver Sol
Head/Harz
Power Soket
Sol/Inst/PTO
Work/Brake
Turn signal
1
