June 2021© New Holland Boomer 20/24/25 ROPS Cab Installation Manual
New Holland Boomer 20/25 ROPS Cab
* Shown with optional equipment *
www.tektite.ca

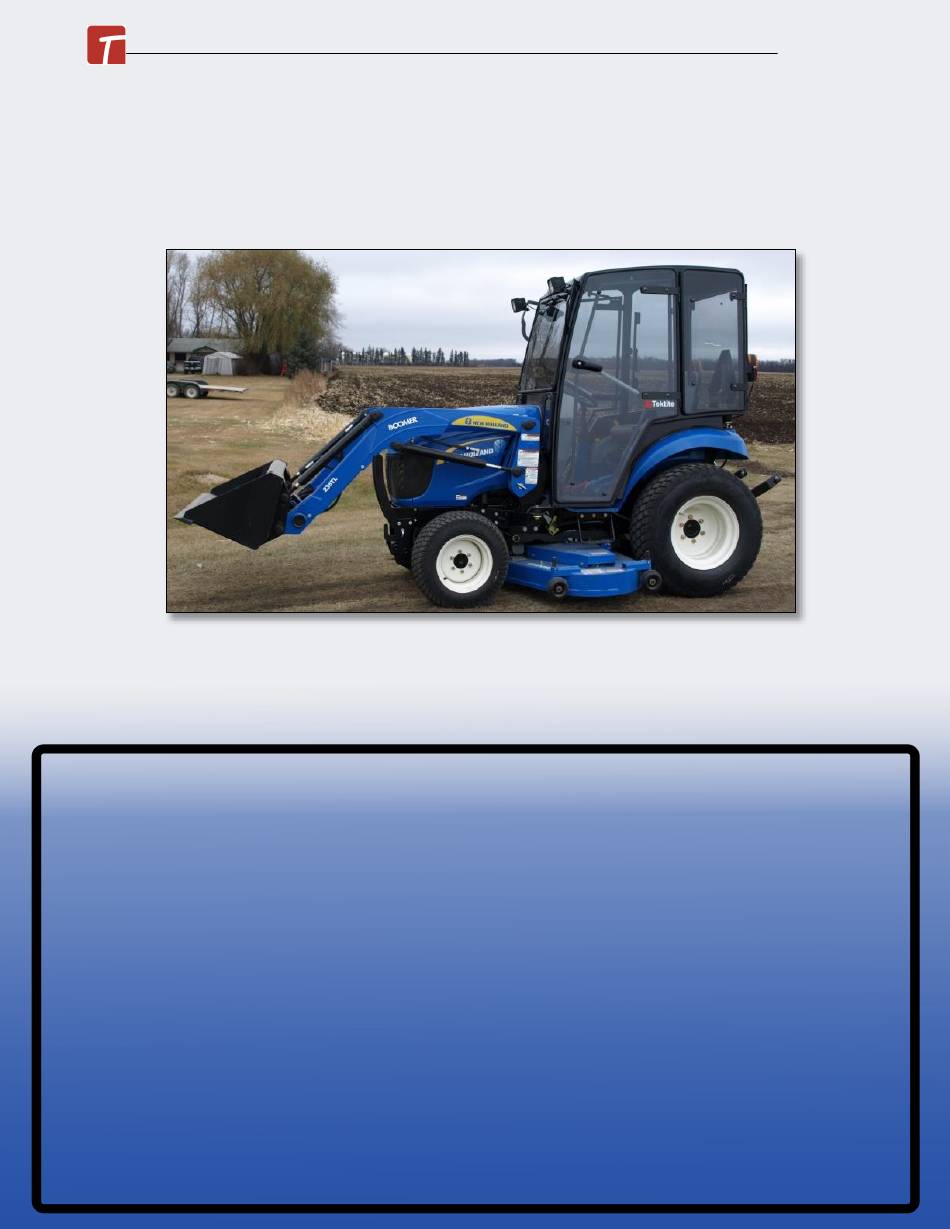

Please note: Boomer 20 is shown in photo with optional accessories.
New Holland Boomer 20/24/25 ROPS Cab
This ROPS cab is designed and built to fit the New Holland Boomer 20, 24, and 25 Series
tractors.
Designed and Built by:
Tektite Manufacturing Inc:
427 Buffalo Street
P.O. Box 639
Winkler, MB
R6W 4A8
Canada
PH: 204-331-3463
Fax: 204-331-4159
sales@tektite.ca
www.tektite.ca
One year standard product warranty provided by Tektite.
Advertisement
Related Manuals for New Holland Boomer 20
Summary of Contents for New Holland Boomer 20
- Page 1 Please note: Boomer 20 is shown in photo with optional accessories. New Holland Boomer 20/24/25 ROPS Cab This ROPS cab is designed and built to fit the New Holland Boomer 20, 24, and 25 Series tractors. Designed and Built by:...
- Page 2 DO NOT PROCEED FURTHER UNTIL YOU HAVE READ THE INFORMATION BELOW 1) Always wear personal protective equipment 2) A minimum of two people is necessary to safely install the cab 3) This ROPS cab is heavy. A lift assist device such as an overhead hoist or high lift forklift is required.
- Page 3 June 2021© New Holland Boomer 20/24/25 ROPS Cab Installation Manual Tektite Manufacturing Incorporated thanks you for purchasing a New Holland Boomer 20 Series ROPS cab! Tektite has worked very hard to design and build this ROPS product and we hope that it provides you with many years of ROPS protection.
- Page 4 June 2021© New Holland Boomer 20/24/25 ROPS Cab Installation Manual Parts List Standard Cab: Description Right Under hood shield (Heater Side) Left Under hood shield Self-tap Screw, #12 x 1-1/4” Bolt, Hex, 5/16" x 2" Nut, Flange, 5/16", YD Differential Pedal Floormat...
- Page 5 June 2021© New Holland Boomer 20/24/25 ROPS Cab Installation Manual...
- Page 6 June 2021© New Holland Boomer 20/24/25 ROPS Cab Installation Manual Standard Cab Installation Instructions: 1. Remove three of the ROPS fastening bolts on each side of the 2-post ROPS. Loosen the last one on each side but do not remove. Tilt the 2-post ROPS backward or forward to expose the wire harnesses for the flasher lights.
- Page 7 June 2021© New Holland Boomer 20/24/25 ROPS Cab Installation Manual 6. Re-install seat tracks. 7. Re-install the seat. 8. Take the left rear bracket and route the flasher harness through the hole in the bottom plate and then the tube and position where left side of 2-post ROPS was located. Use factory hardware and bolt the left rear bracket into place, the tube will be offset to the rear.
- Page 8 June 2021© New Holland Boomer 20/24/25 ROPS Cab Installation Manual 10. Take the left front bracket and position it against left tractor side frame, noting the location of the three bolts that will need to be removed. Remove these bolts and then fasten the bracket into place with the provided M12 x 50 hex bolts.
- Page 9 June 2021© New Holland Boomer 20/24/25 ROPS Cab Installation Manual 12. Return to the cab to install lift brackets next. To remove the gas shock on the left cab door, slide a flat screwdriver underneath the small clip on the end cap that must be pulled OUT in order to pop the shock off the ball stud.
- Page 10 June 2021© New Holland Boomer 20/24/25 ROPS Cab Installation Manual 14. Install the opposite lift bolt and then connect the two bolts together with a lift strap or chain. 15. Connect the lift strap or chain to an over-head hoist or forklift and prepare to lift the cab off of the shipping pallet.
- Page 11 June 2021© New Holland Boomer 20/24/25 ROPS Cab Installation Manual 20. Locate the wire harness located at the bottom of the left A-post. Route under the hood towards the battery. Connect the heavy black wire to the battery ground with the provided 1/4"...
- Page 12 June 2021© New Holland Boomer 20/24/25 ROPS Cab Installation Manual 21. Take the left lower seal panel (no large holes) and four of the self tapping screws included. Position against the lower panel opening below the lower front window. Ensure a tight seal against the tractor and clamp into place.
- Page 13 June 2021© New Holland Boomer 20/24/25 ROPS Cab Installation Manual If tractor is equipped with a heater, proceed with the following steps. 23. Drain the engine coolant. 24. Locate the bypass hose on the right side of the engine and remove. This is where the heater hoses will be tapping into the engine.
- Page 14 June 2021© New Holland Boomer 20/24/25 ROPS Cab Installation Manual 26. Connect one end of the heater hose to one of the open ports and the remaining heater hose to the other open port. 27. Re-fill the engine radiator with coolant.
- Page 15 June 2021© New Holland Boomer 20/24/25 ROPS Cab Installation Manual 31. Un-bolt and remove the factory step. 32. Take the provided 5/16" x 3/4" flange bolts and nuts and bolt the step onto the mounting plate at the bottom of the cab below the door entry.
- Page 16 * Shown with optional equipment * Please note: Boomer 20 is shown with optional accessories. New Holland 20 Series Cab This ROPS cab is designed and built to fit the New Holland 20, 24 and 25 series tractors. Designed and Built by: Tektite Manufacturing Inc: 427 Buffalo Street P.O.
- Page 17 June 2021© New Holland 20 Series ROPS Cab Operation Manual Tektite Manufacturing Incorporated thanks you for purchasing a New Holland 20 Series ROPS cab! Tektite has worked very hard to design and build this ROPS product and we hope that it provides you with many years of ROPS protection.
- Page 18 June 2021© New Holland 20 Series ROPS Cab Operation Manual Tektite Limited Warranty Tektite Manufacturing Inc. (“Tektite”) warrants to the original purchaser (the “Claimant”), that Tektite products will be free from defective materials or workmanship, under normal use and service, for a period of (1) full year from the original invoice date.
-
Page 19: Safety Precautions
June 2021© New Holland 20 Series ROPS Cab Operation Manual Safety Precautions Safety First Read these instructions carefully. It is essential that you read the instructions and safety regulations before you attempt to assemble or use the features that are on this cab/ROPS. -
Page 20: Operating Safety
June 2021© New Holland 20 Series ROPS Cab Operation Manual General Safety 1. Never let an unqualified or untrained driver operate the tractor. 2. Keep a fire extinguisher, with ABC rating securely fastened in the ROPS. Maintain it and be familiar with its use. -
Page 21: Maintenance Safety
June 2021© New Holland 20 Series ROPS Cab Operation Manual Safe Operation on Rough Terrain 1. Drive the tractor slowly on hillsides and curves to eliminate the danger of tipping. Avoid slopes which are too steep for safe operation. Avoid sharp uphill turns. - Page 22 June 2021© New Holland 20 Series ROPS Cab Operation Manual Safety Decals 1. Keep decals clean. Remove dirt with a wet clean cloth when necessary. 2. Replace safety decals if destroyed, missing, painted over or unreadable. If any safety decals are covered or obscured when the ROPS is mounted, it is recommended that you purchase replacement decals from the tractor manufacturer.
- Page 23 June 2021© New Holland 20 Series ROPS Cab Operation Manual Cab Switch Plate 1. Front Wiper Rocker Switch (standard) Low position: Off High position: On Note: indicator light activates when wiper is on. 2. Rear Wiper Rocker Switch (not available on all models)
- Page 24 June 2021© New Holland 20 Series ROPS Cab Operation Manual Low position: Off High position: On Note: indicator light activates when work lights are on. 7. Wiper Washer Momentary Rocker Switch (front and rear may be available) Low position: On...
- Page 25 N03-0005 NH20-ASM-08 Left Door Frame Weldment N03-0007 NH20-050L Door Weatherstripping N03-0015 NH20-063 Door Grab Handle, Boomer 20 Tektite Manufacturing Inc. 24157 Hwy 3, Box 639, Winkler MB, R6W 4A8, Canada Req'd: CNC: Description: Notice of Confidentiality Left Door Assembly Tolerances:...
- Page 26 N03-0006 NH20-ASM-08R Right Door Frame Weldment N03-0007 NH20-050 Door Weatherstripping N03-0015 NH20-063 Door Grab Handle, Boomer 20 Tektite Manufacturing Inc. 24157 Hwy 3, Box 639, Winkler MB, R6W 4A8, Canada Req'd: CNC: Description: Notice of Confidentiality Right Door Assembly Tolerances:...
- Page 27 Index Service Part # File Name Description A00-0013 TEKT-0009 5MM Bushing A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD A00-0044 TEKT-ASM-002 Side Window Hinge Weldment A00-0045 TEKT-0004 Side Window Slider Bracket A00-0057 TEKT-0020MIR Side Window Latch, L60776 A00-0058 CARRIAGE_BOLT-5-16X1 Bolt, Carriage, 5/16"x 1", YD...
- Page 28 Index Service Part # File Name Description A00-0013 TEKT-0009 5MM Bushing A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD A00-0045 TEKT-0004 Side Window Slider Bracket A00-0046 TEKT-ASM-002R Side Window Hinge Right A00-0056 TEKT-0020 Side Window Latch, L60775 A00-0058 CARRIAGE_BOLT-5-16X1 Bolt, Carriage, 5/16"x 1", YD...
- Page 29 Index Service Part # File Name Description A00-0013 TEKT-0009 5MM Bushing A00-0014 THICK-BUSHING 8MM Bushing A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4" x 1 1/4", MB A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD A00-0033 315-080 Rear Wiper Shaft Grommet A00-0043 WWF-MOTOR...
- Page 30 Index Service Part # File Name Description A00-0013 TEKT-0009 5MM Bushing A00-0014 THICK-BUSHING 8MM Bushing A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4" x 1 1/4", MB A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD A00-0033 315-080 Rear Wiper Shaft Grommet A00-0043 WWF-MOTOR...
- Page 31 Index Service Part # File Name Description A00-0024 BUSS-15600-08-11 Power Block/Ground A00-0055 TEKT-0019 Fir Tree Fastener A00-0065 TEKT-ASM-005 On-Off Switch w/Lens A00-0067 TEKT-ASM-007 Mom-Off-Mom Rocker Switch A00-0223 TEKT-ASM-013 Steel Top Switchplate w/Decal A00-0224 TEKT-0104 3" Plug, Steel Top Tektite Manufacturing Inc. 24157 Hwy 3, Box 639, Winkler MB, R6W 4A8, Canada Req'd: CNC:...
- Page 32 Left Mirror Bracket Weldment A00-0371 TEKT-0175 New LED Work Light (Blazer Intl) A00-0389 KUBX2380-NOSTRIL Plastic Light Nostril NH20-ASM-20 Boomer 20/25 Cab Tektite Manufacturing Inc. 24157 Hwy 3, Box 639, Winkler MB, R6W 4A8, Canada Req'd: CNC: Description: Notice of Confidentiality Accessories Assembly...
