SECTION 55 − ELECTRICAL SYSTEM − CHAPTER 6
FUSES AND RELAY BOX (INSIDE CAB)

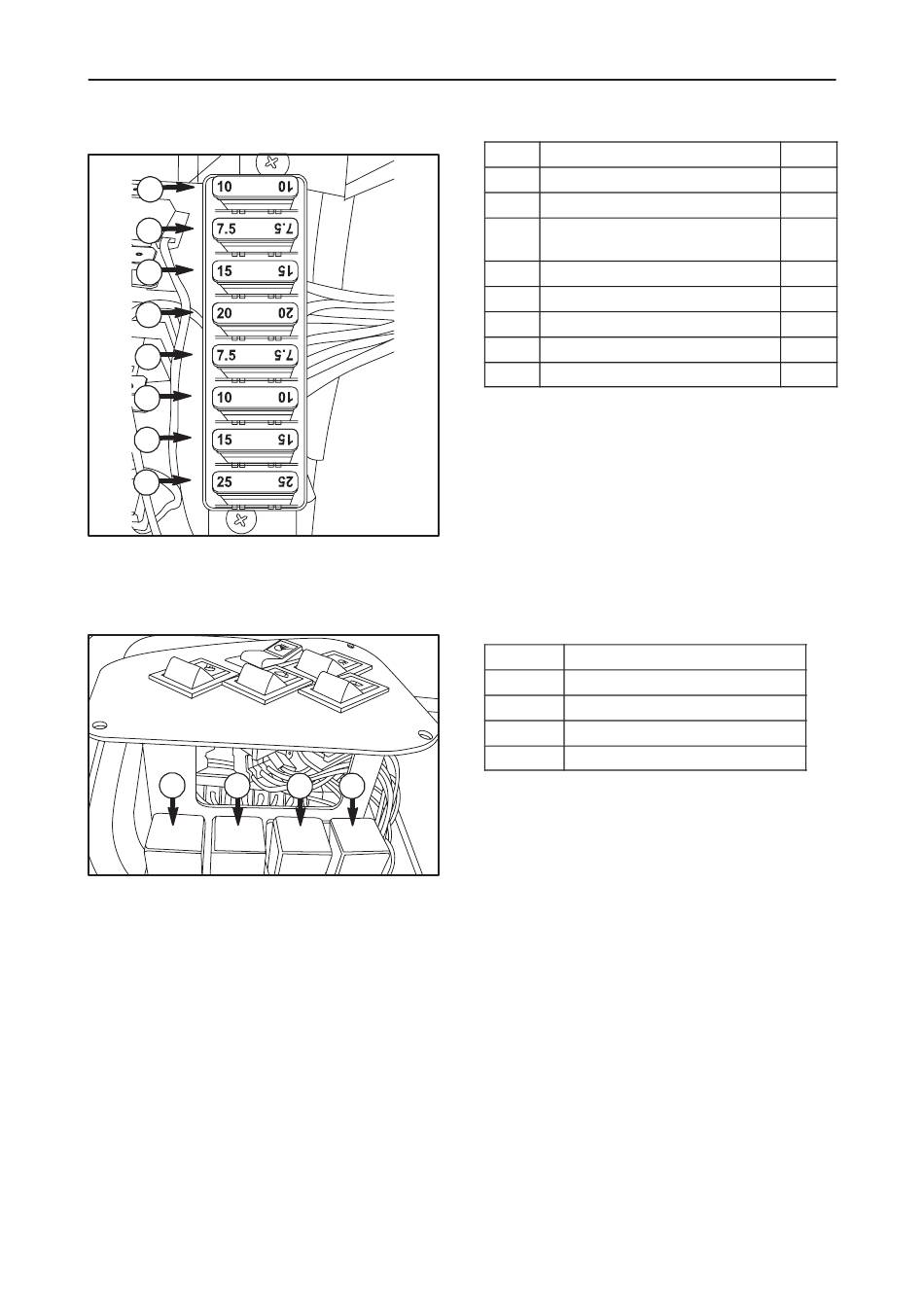

FIG. 2 − 3
1
2
3
4
5
6
7
8
TRE0849A
Relays and related circuits are listed below:
1 2
TRE0847A
2
3 4
3
Fuses and protected circuits are listed below:
PROTECTED CIRCUITS
Fuses
1. Front windscreen wiper
2. Windscreen washer
Beacon lamp, interior lamps,
3.
radio
4. Heater/Air Conditioning
5. Rear wiper
6. Working lamps switches
7. Front worklamps
8. Rear work lamps
Relay CIRCUITS
1. Front worklamps
2. Rear work lamps
3. Supply
4. Supply
3
Amps.
10
7,5
15
20
7,5
10
15
25
603.54.471.00 − 11 − 2004
