3.3
Software
The software executes script-commands, which in turn control the IC's hardware and they pro-
cess their complete protocol by software. The script itself can be generated by the company
Deutschmann Automation or with the software Protocol Developer by yourself. For a detailed
description of the script.commands of the Protocol Developer see the instruction manual Proto-
col Developer and the online documentation concerning script-commands.
3.4
Basic line of proceeding
In theory it is enough to replace the RS232-driver that is included in your application by the
®
UNIGATE
IC.

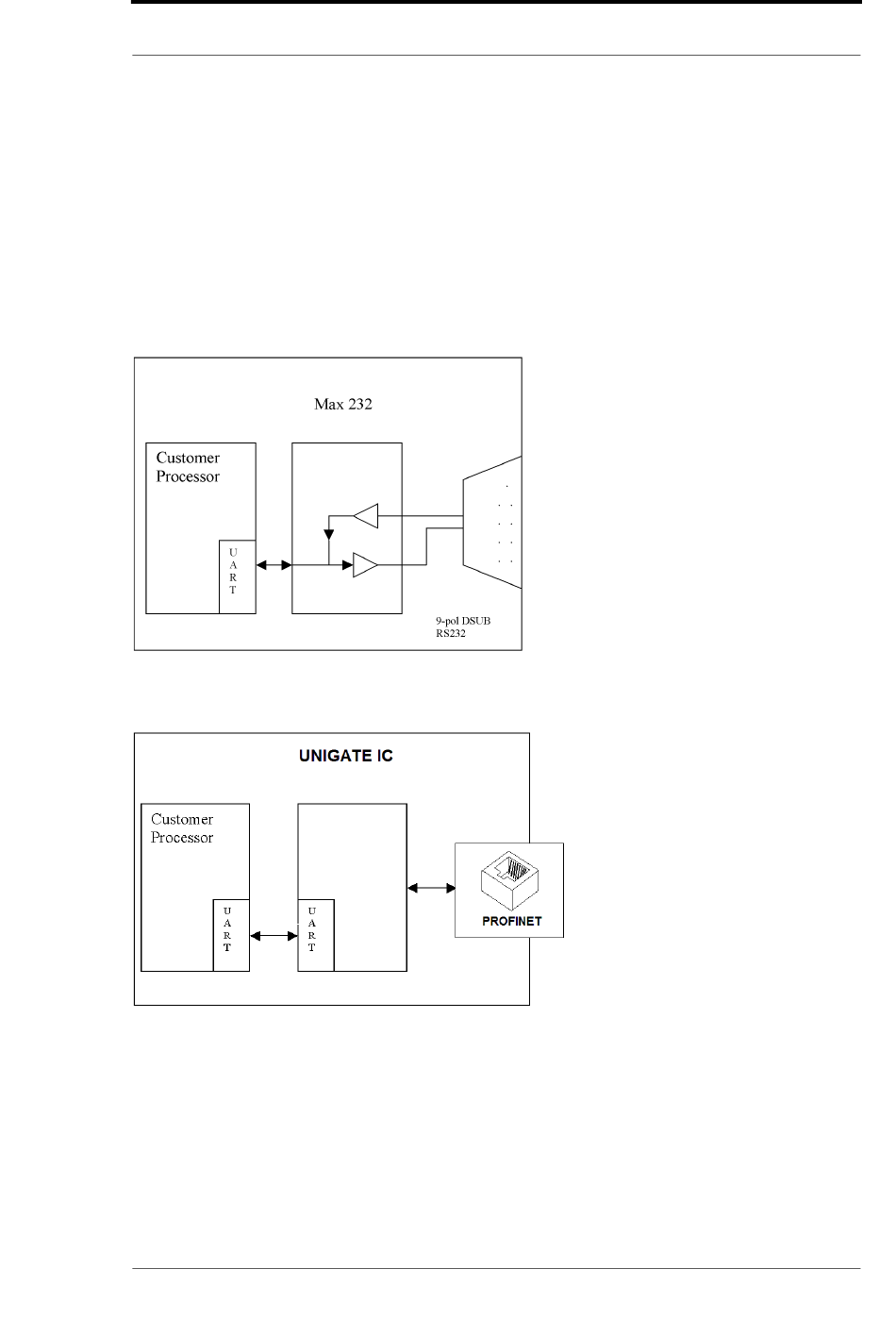

Your device, which on the whole is supposed to be assembled as shown above, will now be mod-
ified in a way that the PROFINET is available at the 9-pol. socket. However, a hardware redesign
is necessary in order to keep the assignment in standard form.
After the RS232-driver has been replaced by the UNIGATE
RJ45-socket.
27.11.20
Instruction manual UNIGATE
®
IC, PROFINET is available at an
®
IC - PROFINET 1Port V. 3.4
Hardware design
15
