Deutschmann Automation GmbH & Co. KG
The UNIGATE® IC
2.7
UNIGATE
IC hardware survey
®
®

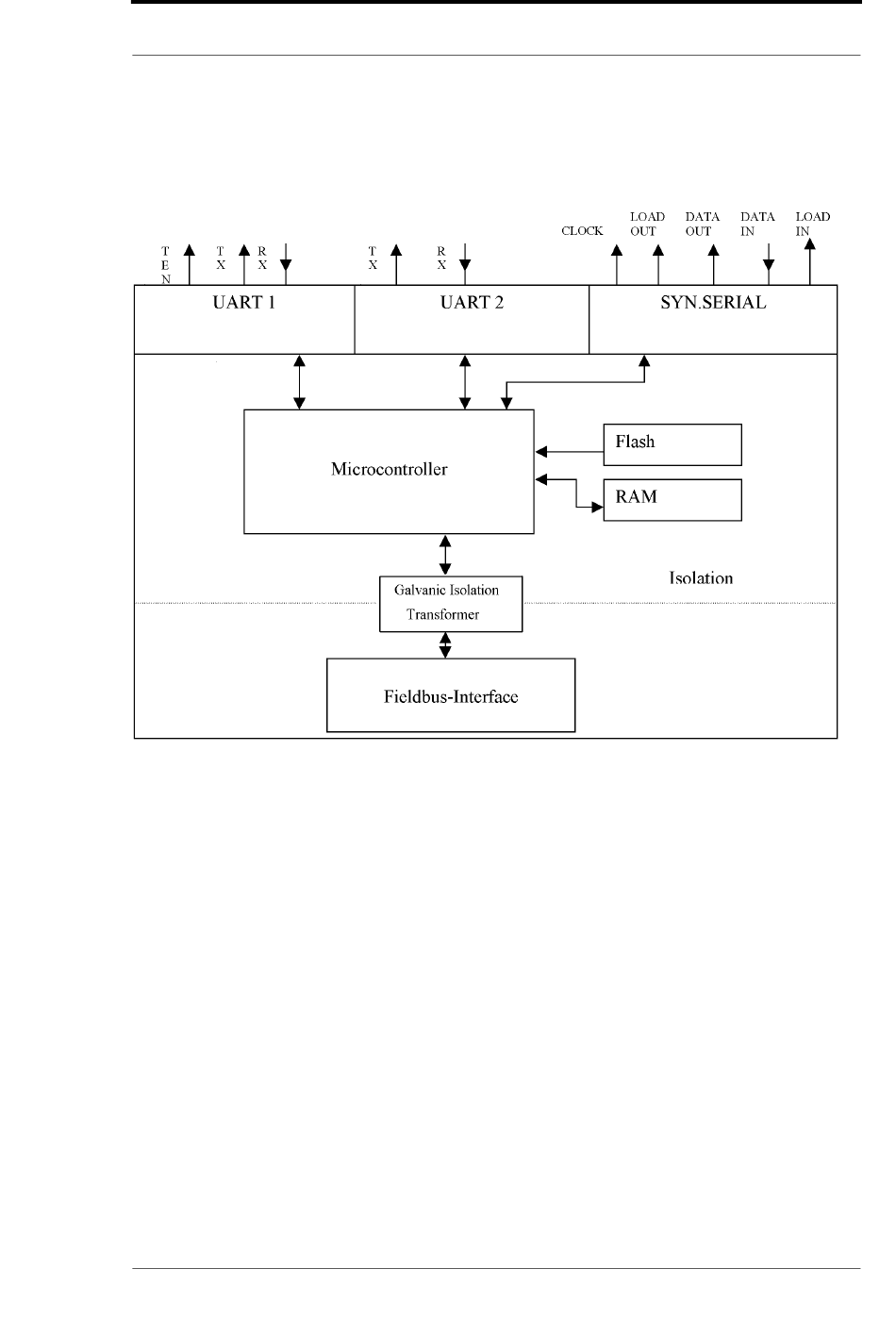

The hardware of the UNIGATE
IC consists of some few standard components. The picture
below shows the functional structure of the IC.
®
27.11.20
Instruction manual UNIGATE
IC - PROFINET 1Port V. 3.4
11
