Hardware design Deutschmann Automation GmbH & Co. KG
3.5

Connection examples

Here you will find some advise that offers help for a re-design. In the following several versions
are listed, that should make it easier for you to decide.

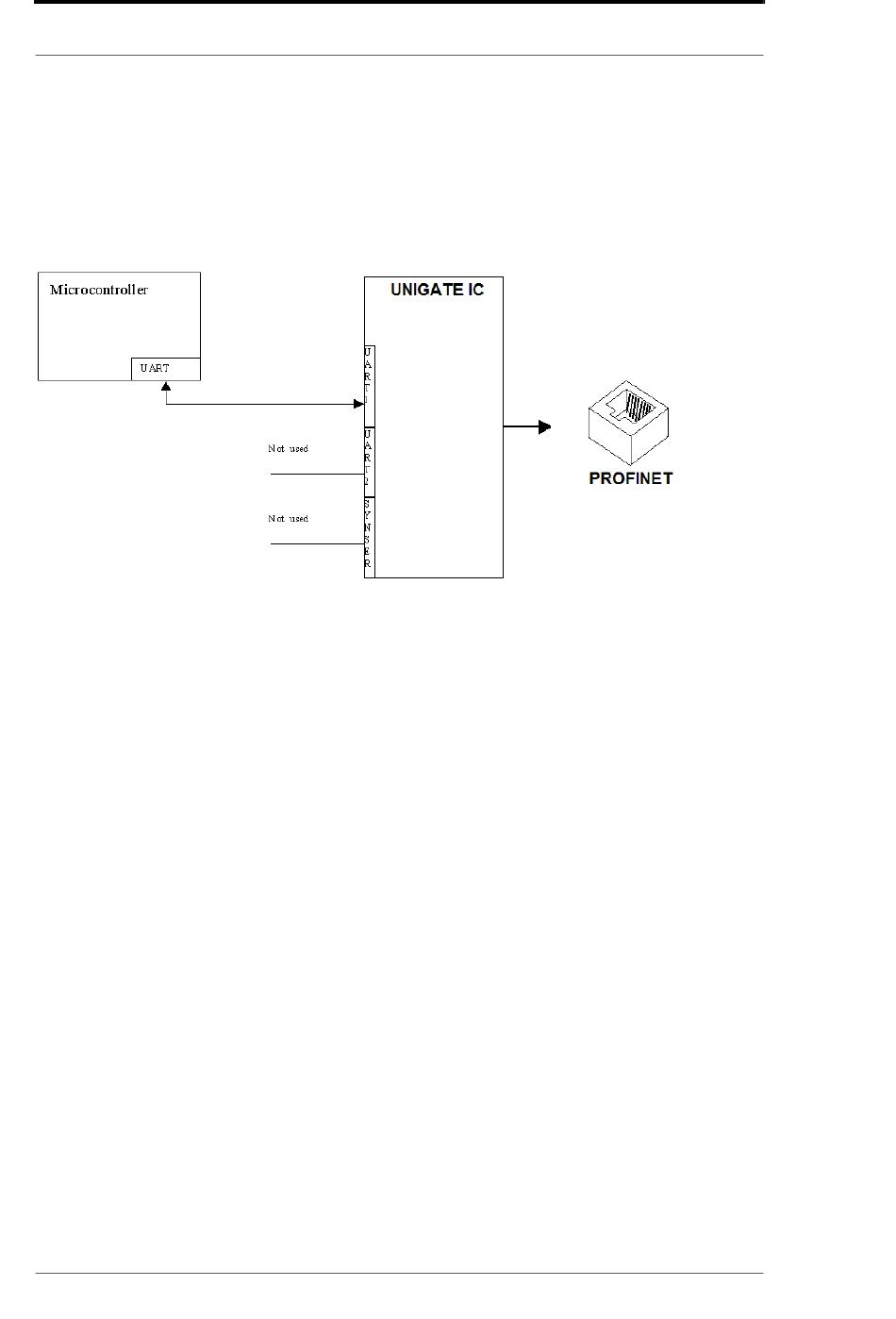

Version 1: Use as a pure link module for the bus
®
The UNIGATE IC independently processes the communication with the customer's device via
the TTL-interface.
®
16 Instruction manual UNIGATE IC - PROFINET 1Port V. 3.4 27.11.20
