Hardware design
3.2.12

TX, RX

Transmission (Tx) and receive lines (Rx) of the serial interface. This interface is programmable in
accordance with the description in chapter 4 on page 20.
3.3

Software

The software executes script-commands, which in turn control the IC's hardware and they pro-
cess their complete protocol by software. The script itself can be generated by the company
Deutschmann Automation or with the software Protocol Developer by yourself. For a detailed
description of the script.commands of the Protocol Developer see the instruction manual Proto-
col Developer and the online documentation concerning script-commands.
3.4

Basic line of proceeding

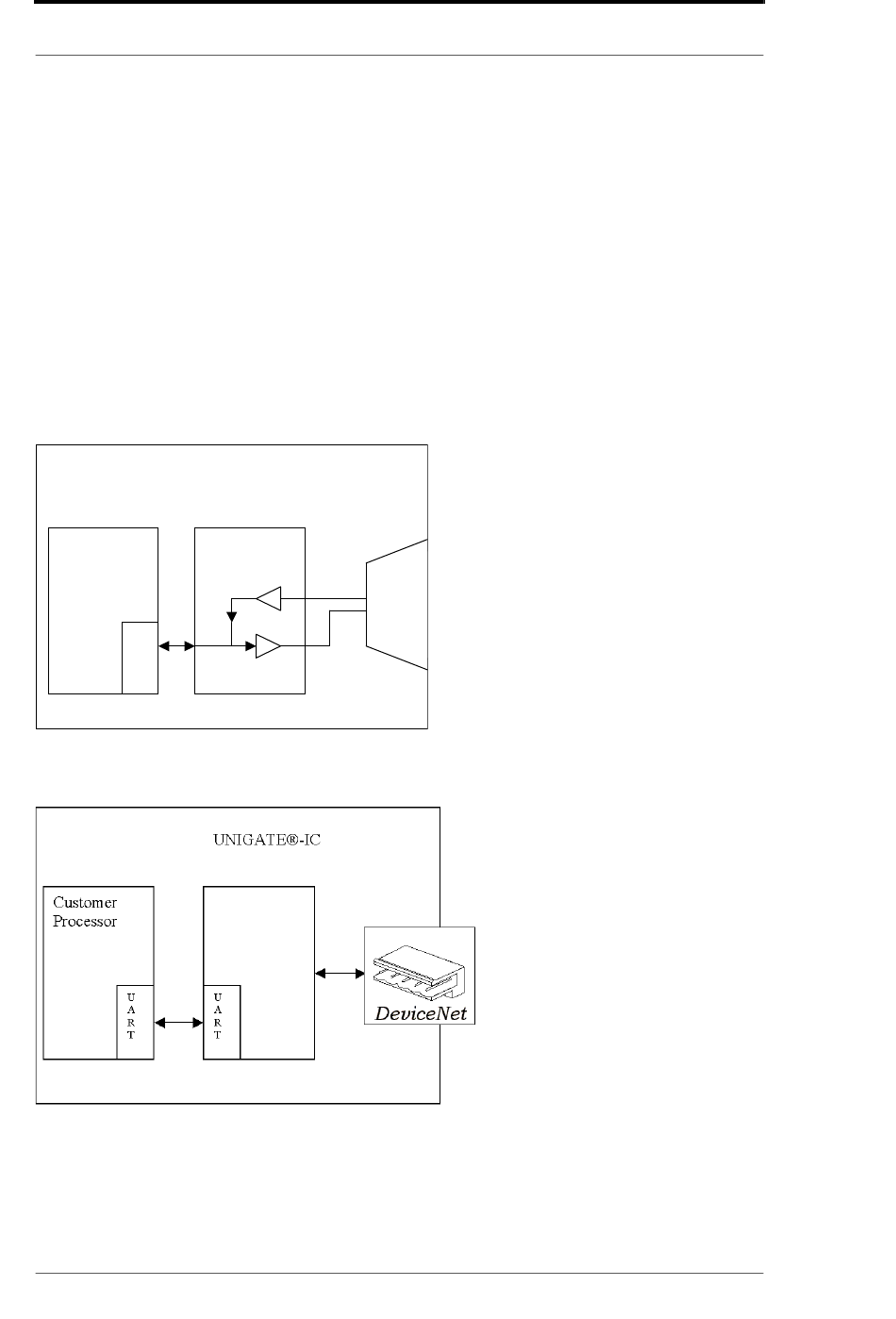

In theory it is enough to replace the RS232-driver that is included in your application by the UNI-
GATE® IC.
Customer
Processor
U
A
R
T
Your device, which on the whole is supposed to be assembled as shown above, will now be mod-
ified in a way that the DeviceNet is available at the 5-pol. socket. However, a hardware redesign
is necessary in order to keep the assignment in standard form.
After the RS232-driver has been replaced by the UNIGATE® IC, the DeviceNet is available at the
5-pol. screw-plug connector.
Deutschmann Automation is also offering an appropriate adapter board. With it existing devices
can be adapted without re-design; see chapter 13 on page 33.
14
Max 232
9-pol DSUB
RS232
