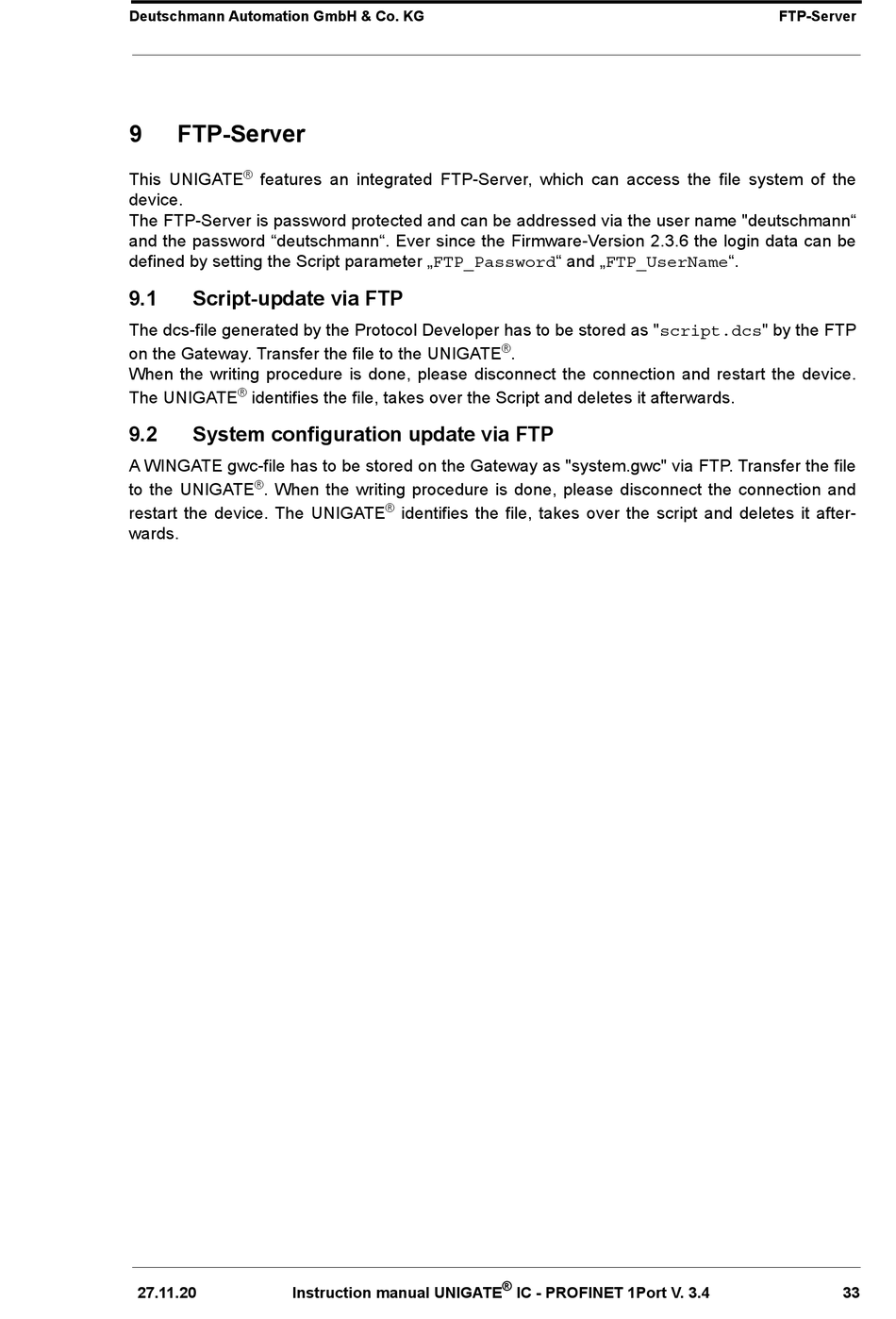

Ftp-Server; Script-Update Via Ftp; System Configuration Update Via Ftp - DEUTSCHMANN AUTOMATION UNIGATE IC-PROFINET Instruction Manual

Deutschmann Automation GmbH & Co. KG
9

FTP-Server

®
This UNIGATE features an integrated FTP-Server, which can access the file system of the
device.
The FTP-Server is password protected and can be addressed via the user name "deutschmann"
and the password "deutschmann". Ever since the Firmware-Version 2.3.6 the login data can be
defined by setting the Script parameter „FTP_Password" and „FTP_UserName".
9.1

Script-update via FTP

The dcs-file generated by the Protocol Developer has to be stored as "script.dcs" by the FTP
on the Gateway. Transfer the file to the UNIGATE
When the writing procedure is done, please disconnect the connection and restart the device.
®
The UNIGATE identifies the file, takes over the Script and deletes it afterwards.
9.2

System configuration update via FTP

A WINGATE gwc-file has to be stored on the Gateway as "system.gwc" via FTP. Transfer the file
®
to the UNIGATE . When the writing procedure is done, please disconnect the connection and
restart the device. The UNIGATE
wards.
27.11.20 Instruction manual UNIGATE
®
.
®
identifies the file, takes over the script and deletes it after-
®
IC - PROFINET 1Port V. 3.4
FTP-Server
33
