Hardware design
Deutschmann Automation GmbH & Co. KG

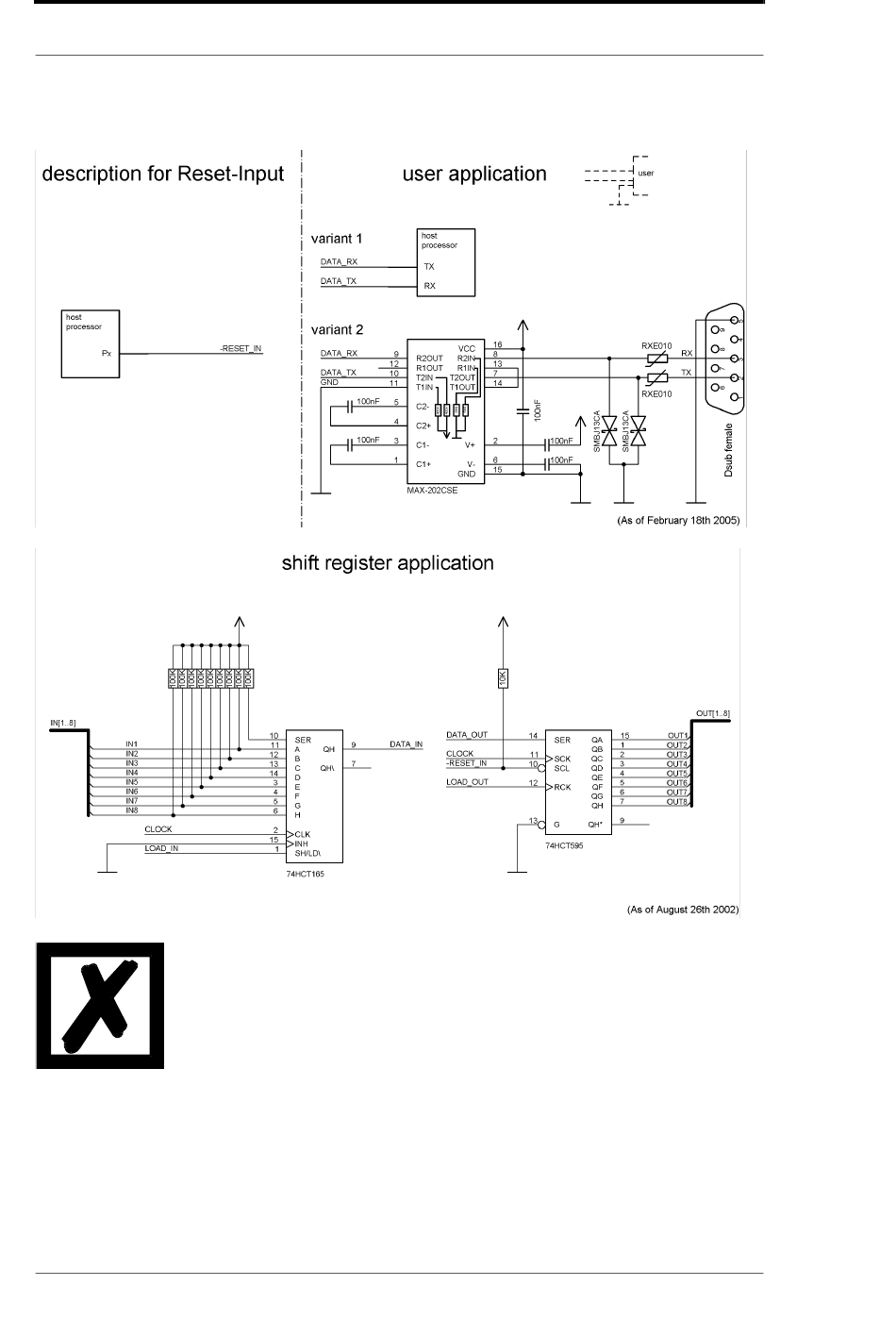

The 74HCT595 used in this example has an undefined on-position, but
therefor can set the outputs to the tri-state condition via the OutEnable-
Pin 13. If it is more important to have a defined on-position in an applica-
tion, and the OutEnable-pin is not necessary, the 74HCT594 can be used
here.
®
20
Instruction manual UNIGATE
IC - PROFINET 1Port V. 3.4
27.11.20
