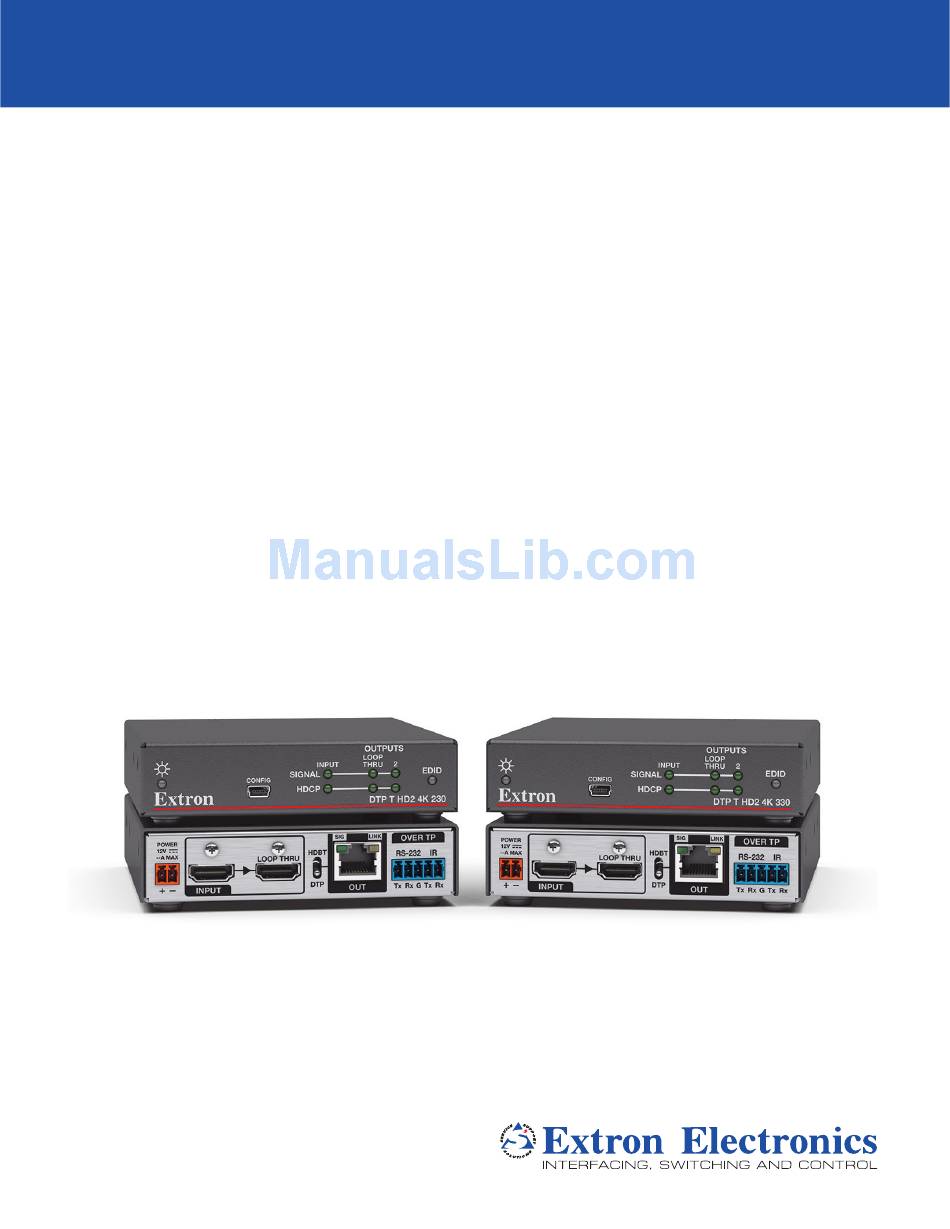

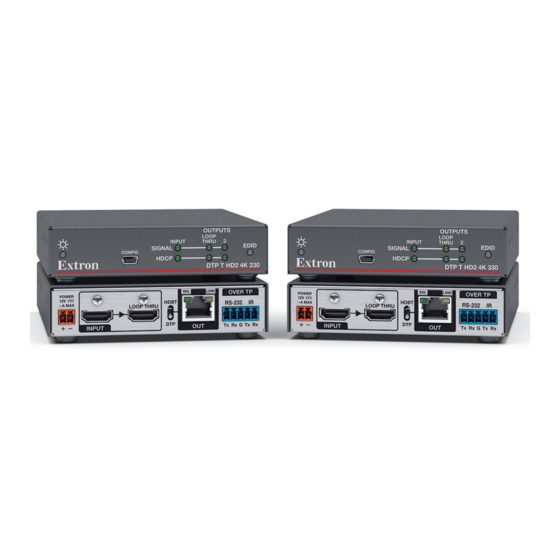

- Page 1 User Guide Video Products DTP T HD2 4K 230/330 DTP HDMI Transmitters 68-2681-01 Rev. A 10 15...
-
Page 2: Safety Instructions
Safety Instructions Safety Instructions • English Инструкция по технике безопасности • Русский WARNING: This symbol, , when used on the product, is intended to ПРЕДУПРЕЖДЕНИЕ: Данный символ, , если указан alert the user of the presence of uninsulated dangerous voltage within the на... - Page 3 “Extron Safety and Regulatory Compliance Guide” on the Extron website. Copyright © 2015 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks ®...
- Page 4 Conventions Used in this Guide Notifications The following notifications are used in this guide: ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information. TIP: A tip provides a suggestion to make working with the application easier. Software Commands Commands are written in the fonts shown here: ^AR Merge Scene,,Op1 scene 1,1 ^B 51 ^W^C...
-
Page 5: Table Of Contents
Contents SIS Commands Introduction ........... 10 ............1 Introduction to SIS ........... 10 About the DTP T HD2 4K 230/330 ..... 1 Host-to-Transmitter Features ............. 1 Communications ......... 10 Application Diagram ........... 2 Transmitter-initiated Messages ...... 10 Copyright Information ........10 Installation and Features ........ -
Page 6: Introduction
— EDID Minder ensures that the source powers up properly and reliably outputs content for display. Supports EDID and HDCP transmission — DDC channels are actively buffered, allowing continuous communication between source and display. Extron DTP T HD2 4K 230/330 • Introduction... -
Page 7: Application Diagram
RS-232 LOOP THRU INPUT CATx Cable HDMI up to 330' Microphones (100 m) Extron HDMI SM 26 Local Monitor Surface Mount Speakers Extron Extron DTP T HD2 4K Application Diagram Figure 1. Extron DTP T HD2 4K 230/330 • Introduction... -
Page 8: Installation And Features
Mount the unit using any optional compatible mounting kit listed on the Extron website (www.extron.com), in accordance with the directions included with the kit. For rack mounting, see UL Rack-Mounting Guidelines on the next page. Extron DTP T HD2 4K 230/330 • Installation and Operation... -
Page 9: Ul Rack-Mounting Guidelines
Input/Output signal LEDs — Light green when HDCP presence is detected on the HDMI input. Input/Output HDCP LEDs — Light green when HDCP presence is detected on the HDMI outputs. Extron DTP T HD2 4K 230/330 • Installation and Operation... -
Page 10: Rear Panel Features
ATTENTION: • Do not connect these outputs to a telecommunications or computer data network. • Ne connectez pas ces appareils à des données informatiques ou à un réseau de télécommunications. Extron DTP T HD2 4K 230/330 • Installation and Operation... - Page 11 2 poles labeled “IR” and shares the ground pole with the RS-232 port (see image below for wiring instructions). IR Device Tx/Rx Pins RS-232 Device NOTE: RS-232 and IR data can be transmitted simultaneously. Extron DTP T HD2 4K 230/330 • Installation and Operation...
-
Page 12: Twisted Pair Recommendations For Dtp Communication
Do not comb the cable for the first 20 meters, where cables are straightened, aligned, and secured in tight bundles. • Loosely place cables and limit the use of tie wraps or hook-and-loop fasteners. • Separate twisted pair cables from AC power cables. Extron DTP T HD2 4K 230/330 • Installation and Operation... -
Page 13: Power Supply Wiring
CAUTION: The wires must be kept separate while the power supply is plugged in. Remove power before wiring. ATTENTION : Les deux cordons d’alimentation doivent être tenus à l’écart l’un de l’autre quand l’alimentation est branchée. Couper l’alimentation avant de faire l’installation électrique. Extron DTP T HD2 4K 230/330 • Installation and Operation... - Page 14 Unless otherwise stated, the AC/DC adapters are not suitable for use in air handling spaces or in wall cavities. • Sauf mention contraire, les adaptateurs AC/DC ne sont pas appropriés pour une utilisation dans les espaces d’aération ou dans les cavités murales. Extron DTP T HD2 4K 230/330 • Installation and Operation...
-
Page 15: Sis Commands
Copyright Information The copyright message is displayed upon connecting to a transmitter USB. ] © Copyright 20yy, Extron Electronics, DTP T HD2 4K 230/330, Vx.xx,60-xxxx-01] 20yy is the year the currently installed firmware was released, Vx.xx is the firmware version number, and 60-xxxx-01 is the catalog part number. -
Page 16: Symbols Used In This Guide
First character must be a letter Last character cannot be a hyphen (-) Default is model name Video mute 0 = video mute disabled 1 = video mute (TMDS) 2 = video and sync mute Extron DTP T HD2 4K 230/330 • SIS Commands... - Page 17 DTP/HDBaseT switch position 0 = DTP mode 1 = HDBaseT mode Verbose mode Clear/none (default for telnet) Verbose mode (default for USB) Tagged responses for queries Verbose mode and tagged responses for queries Extron DTP T HD2 4K 230/330 • SIS Commands...
-
Page 18: Error Messages
The TMDS output format will resume as configured when the source signal changes to a signal other than 4K/UHD @ 60 Hz with YUV 4:2:0. Extron DTP T HD2 4K 230/330 • SIS Commands... -
Page 19: Dtp T Hd2 4K Edid Memory Locations
2-Ch 1080p 50 Hz HDMI 2-Ch 1080p 60 Hz HDMI 2-Ch 4K / UHD 30 Hz HDMI 2-Ch Output 1 Output 2 User Loaded Slot 1 User Loaded Slot 2 *Default Extron DTP T HD2 4K 230/330 • SIS Commands... -
Page 20: Command And Response Table For Sis Commands
2 = HDMI RGB “Full” 3 = HDMI RGB “Limited” 4 = HDMI YUV 444 “Full” 5 = HDMI YUV 444 “Limited” 6 = HDMI YUV 422 “Full” 7 = HDMI YUV 422 “Limited” Extron DTP T HD2 4K 230/330 • SIS Commands... - Page 21 (Continuous trials for HDMI sinks, attempt for 10 seconds on DVI sinks, then fail) Encrypt as required by input (Continuous trials for HDMI sinks and DVI sinks) Always encrypt (Continuous trials for HDMI sinks and DVI sinks) Extron DTP T HD2 4K 230/330 • SIS Commands...
- Page 22 0 = DTP mode, 1 = HDBaseT mode X1# = Verbose mode Clear/none (default for telnet) Verbose mode (default for RS-232 and USB) Tagged responses for queries Verbose mode and tagged responses for queries Extron DTP T HD2 4K 230/330 • SIS Commands...
- Page 23 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
