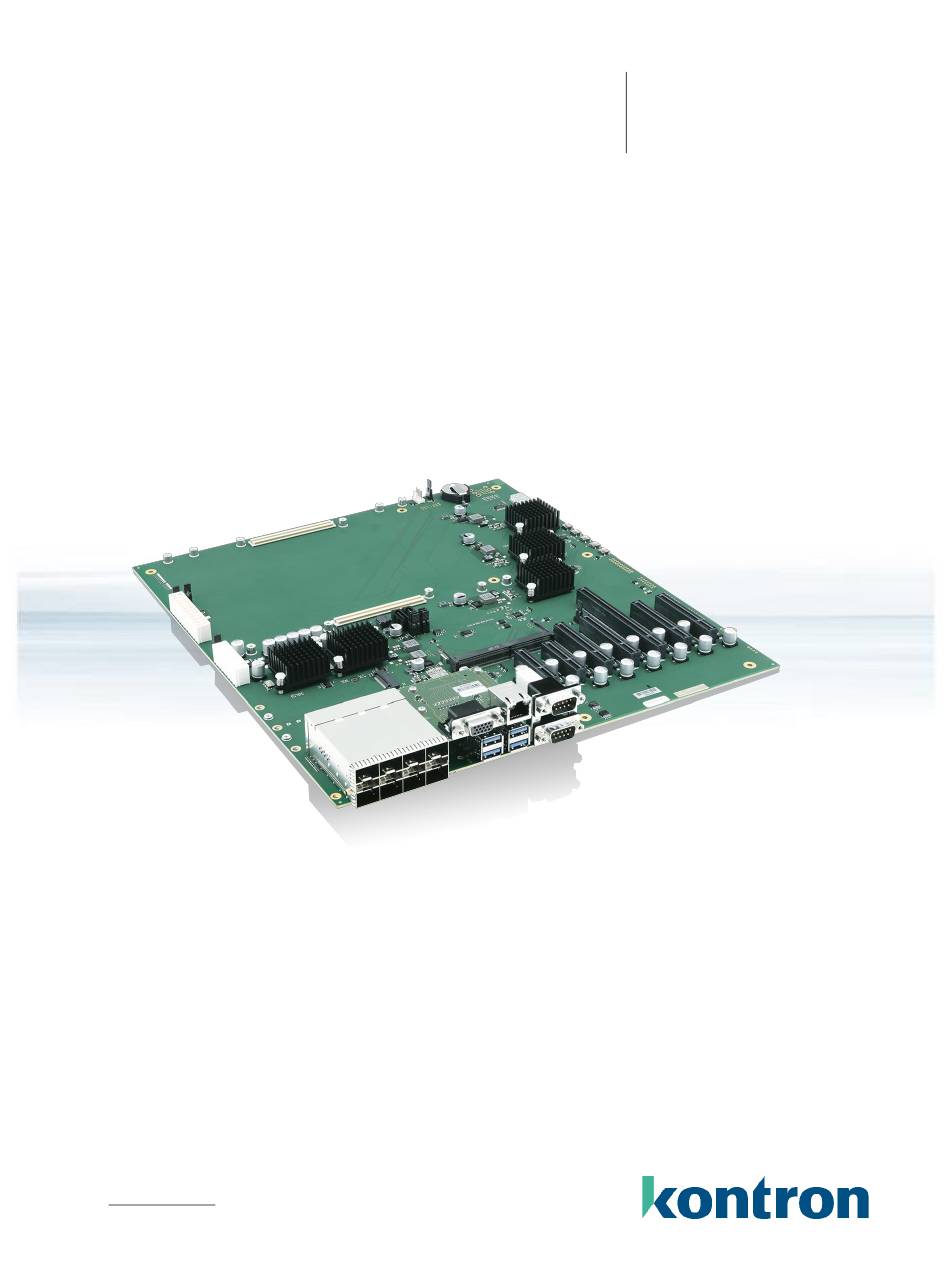

USER GUIDE
COM-HPC Server Evaluation Carrier
Rev. 1.0
Doc. ID: 1070-0148
www.kontron.com
// 1

Advertisement

Table of Contents
loading

Related Manuals for Kontron COM-HPC

Summary of Contents for Kontron COM-HPC

  • Page 1  USER GUIDE COM-HPC Server Evaluation Carrier Rev. 1.0 Doc. ID: 1070-0148 www.kontron.com // 1...
  • Page 2 COM-HPC Server Evaluation Carrier - Rev. 1.0 This page has been intentionally left blank www.kontron.com // 2...
  • Page 3 Kontron with respect to technical processes described in the user guide or any product characteristics set out in the user guide. Kontron assumes no responsibility or liability for the use of the described product(s), conveys no license or title under any patent, copyright or mask work rights to these products and makes no representations or warranties that these products are free from patent, copyright or mask work right infringement unless otherwise specified.
  • Page 4 SEVERE PHYSICAL OR ENVIRONMENTAL DAMAGE (COLLECTIVELY, HIGH RISK APPLICATIONS ). You understand and agree that your use of Kontron devices as a component in High Risk Applications is entirely at your risk. To minimize the risks associated with your products and applications, you should provide adequate design and operating safeguards.
  • Page 5 If you have any difficulties using this user guide, discover an error, or just want to provide some feedback, contact Kontron support. Detail any errors you find. We will correct the errors or problems as soon as possible and post the revised user guide on our website.

  • Page 6: Symbols

    COM-HPC Server Evaluation Carrier - Rev. 1.0 Symbols The following symbols may be used in this user guide DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

  • Page 7: For Your Safety

    Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines.

  • Page 8: Lithium Battery Precautions

     General Instructions on Usage modifications to the product, that are not explicitly approved by Kontron and described in this user guide or received from Kontron Support as a special handling instruction, will void your warranty. This product should only be installed in or connected to systems that fulfill all necessary technical and specific environmental requirements.

  • Page 9: Table Of Contents

    COM-HPC Server Evaluation Carrier - Rev. 1.0 Table of Contents Symbols ......................................6 For Your Safety ..................................... 7 High Voltage Safety Instructions ............................. 7 Special Handling and Unpacking Instruction ........................7 Lithium Battery Precautions ..............................8 General Instructions on Usage ..............................8 Quality and Environmental Management ..........................

  • Page 10: List Of Tables

    I2C1 Header (X53) ................................36 SMBus Header (X49) ............................... 37 SDP Header (X51) ................................37 COM-HPC PICMG EEPROM Header (X52)........................38 Parade I2C Debug Board Header (X55) ........................38 USB_PD_I2C Header (X57) ............................. 38 ATX Main Power Connector (X26) ..........................39 ATX Power Connector (X27) ............................

  • Page 11: List Of Figures

    Figure 1: COM-HPC Server Evaluation Carrier ............................13 Figure 2: Block Diagram COM-HPC Server Evaluation Carrier ......................16 Figure 3: Top View of COM-HPC Server Evaluation Carrier ........................ 17 Figure 4: Front Panel ....................................... 18 Figure 5: Board Dimensions and Jumper Positions ..........................19 Figure 6: IO Backpanel Board Connector ..............................
  • Page 12 Figure 40: M.2 Slot Connector (X30, X34) ..............................41 Figure 41: Power Diagram ..................................... 44 Figure 42: SFP28 LEDs ....................................46 Figure 43: Port 80 BIOS Debug Code 7-Segment Display ........................46 Figure 44: COM-HPC Connector J1 and J2 ..............................47 www.kontron.com // 12...

  • Page 13: 1/ Introduction

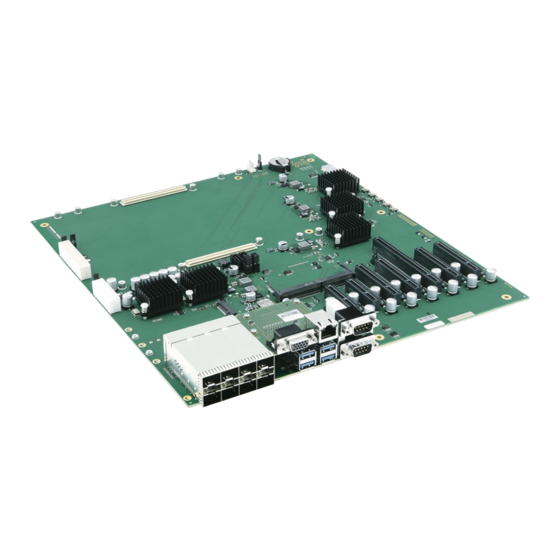

    1/ Introduction Product Description COM-HPC Server Evaluation Carrier is an evaluation, testing and validation carrier board (baseboard) for COM- HPC®/Server modules in E-ATX form factor. Main purpose of this carrier board is to bring out all the signals from the COM-HPC®...

  • Page 14: Product Naming Clarification

    - Rev. 1.0 Product Naming Clarification COM-HPC® defines a Computer-on-Module, or COM, with all the components necessary for a bootable host computer, packaged as a super component. The product name for Kontron COM-HPC® Computer-On-Modules consists of: Industry standard short form: COMh- ...

  • Page 15: 2/ System Specifications

    COM-HPC Server Evaluation Carrier - Rev. 1.0 2/ System specifications Main Features The table below summarizes the features of the evaluation carrier. Table 1: Main Features COM-HPC Server Evaluation Carrier Dimensions 305 mm x 330 mm (E-ATX) Ethernet 1x RJ45 max.

  • Page 16: Block Diagram

    COM-HPC Server Evaluation Carrier - Rev. 1.0 Block Diagram Figure 2: Block Diagram COM-HPC Server Evaluation Carrier www.kontron.com // 16...

  • Page 17: 3/ Mainboard Views

    COM-HPC Server Evaluation Carrier - Rev. 1.0 3/ Mainboard Views Top View Figure 3: Top View of COM-HPC Server Evaluation Carrier www.kontron.com // 17...

  • Page 18: Front Panel

    30. I2C1 Header (X53) 13. 2x PCIe x8 (X7, X8) 31. Status LEDs and Power LEDs 14. 2x PCIe x4 (X12, X13) 32. 2x COM-HPC Connectors (J1, J2) 15. ATX Peripheral Connectors (X43, X44) 33. SDP Header (X51) 16. BMC Connector (X36) 34.

  • Page 19: 4/ Mechanical Specification

    COM-HPC Server Evaluation Carrier - Rev. 1.0 4/ Mechanical Specification Dimensions and Jumper Positions The dimensions of the carrier board are 330 mm x 305 mm. Figure 5: Board Dimensions and Jumper Positions www.kontron.com // 19...

  • Page 20: 5/ Interfaces And Connectors

    COM-HPC Server Evaluation Carrier - Rev. 1.0 5/ Interfaces and Connectors IO Backpanel Board Connector (X4) Figure 6: IO Backpanel Board Connector Table 3: IO Backpanel Board Connector Signal Name Signal Name +5VDC +5VDC +5VDC +5VDC BMC_DACG_DPTXP0 BMC_VGAHS_DPTXP1 BMC_DACB_DPTXN0 BMC_VGAVS_DPTXN1...

  • Page 21: Up To 10 Gb Ethernet Connector (X31)

    COM-HPC Server Evaluation Carrier - Rev. 1.0 Up to 10 GB Ethernet Connector (X31) Table 4: Max 10 GB Ethernet Connector 10 BASE-T Signal Max 10GBASE-T 100BASE-T MDI0+ MDI0- MDI1+ MDI2+ MDI2- MDI1- MDI3+ MDI3- Table 5: Signals Signal Green (right): Link/Activity...

  • Page 22: Com Ports (X35)

    COM-HPC Server Evaluation Carrier - Rev. 1.0 Signal Name X33 (left) Signal Name X32 (right) GND1 GND1 SSRX1- SSRX1- SSRX1+ SSRX1+ GND_DRAIN1 GND_DRAIN1 SSTX1- SSTX1- SSTX1+ SSTX1+ COM Ports (X35) Figure 8: Double COM Ports Bottom Table 7: Double COM Ports...
  • Page 23 COM-HPC Server Evaluation Carrier - Rev. 1.0 Signal Name RS232-1_CTS# www.kontron.com // 23...

  • Page 24: Bmc Connector (X36)

    COM-HPC Server Evaluation Carrier - Rev. 1.0 BMC Connector (X36) Figure 9: BMC Connector (X36) Table 8: BMC Connector (X36) Signal Name Signal Name +12V SB +3.3V SB +3.3V SB +3.3V SB +3.3V SB +3.3V SB BMC_DACG_DPTXP0 BMC_DACB_DPTXN0 BMC_DACR_DPHPD TP10...
  • Page 25 COM-HPC Server Evaluation Carrier - Rev. 1.0 Signal Name Signal Name TP16 TP18 BMC_UART1_RX BMC_UART1_TX TP19 BMC_I2C8_SCL BMC_I2C8_SDA BMC_FWSPIWP# BMC_FWSPICS0# BMC_FWSPIMOSI_IO0 TP20 BMC_FWSPIMISO_IO1 TP21 BMC_FWSPI_IO2 TP22 BMC_FWSPI_IO3 TP23 BMC_FWSPICK TP24 TP25 BMC_PWRGD TP26 TP27 TP28 TP29 TP36 TP37 TP38 TP39...
  • Page 26 COM-HPC Server Evaluation Carrier - Rev. 1.0 Signal Name Signal Name BMC_I2C1_SCL BMC_I2C1_SDA BMC_I2C4_SCL BMC_I2C4_SDA TP51 TP52 BMC_PERST# TP53 TP54 COMH_PEBMC_TN TP56 COMH_PEBMC_TP TP57 +1.8VDC COMH_PEBMC_RN TP58 COMH_PEBMC_RP TP59 TP55 REFCLK0L_3N REFCLK0L_3P BMC_ESPIRST# BMC_ESPID1 BMC_ESPID0 BMC_ESPIALERT# BMC_ESPICS# BMC_ESPID3 BMC_ESPID2 BMC_ESPICLK...
  • Page 27 COM-HPC Server Evaluation Carrier - Rev. 1.0 Signal Name Signal Name BMC_I2C3_SCL BMC_I2C3_SDA BMC_USB2AN BMC_USB2AP BMC_TRD0P BMC_TRD0N BMC_TRD1N BMC_TRD1P BMC_PHYLED1 BMC_TRD2P BMC_PHYLED2 BMC_TRD2N BMC_PHYLED3 BMC_TRD3N BMC_TRD3P BMC_RESET# www.kontron.com // 27...

  • Page 28: Sata 6 Gb (X18, X19)

    COM-HPC Server Evaluation Carrier - Rev. 1.0 SATA 6 GB (X18, X19) Figure 10: SATA 6 GB Table 9: SATA 6 GB Connector Signal Name X18 Signal Name X19 GND_0 GND_0 SATA0_TX+ SATA1_TX+ SATA0_TX- SATA1_TX- GND_1 GND_1 SATA0_RX- SATA1_RX- SATA0_RX+...

  • Page 29: Fan Connector (X14) And Jumper (X38)

    COM-HPC Server Evaluation Carrier - Rev. 1.0 Figure 11: PCIe x4 Slots Figure 12: PCIe x16 and PCIe x8 Slots Fan Connector (X14) and Jumper (X38) Figure 13: Fan Connector with 4 pins (X14) and Fan Jumper (X38) 5.8.1. Fan Connector with 4 Pins (X14)

  • Page 30: Jumper For 5V/12V Fan Selection (X38)

    COM-HPC Server Evaluation Carrier - Rev. 1.0 5.8.2. Jumper for 5V/12V Fan Selection (X38) Table 12: Jumper for 5V/12V Fan Selection Jumper Position Description 12V Fan (default) 5V Fan UART0 BMC Present Header (X15) Figure 14: BMC Present Jumper (X15) with 3 pins...

  • Page 31: Uart5 Header (X16)

    COM-HPC Server Evaluation Carrier - Rev. 1.0 UART5 Header (X16) Applicable when RunBMC module is plugged Figure 16: UART5 Header (X16) Table 15: UART5 Header (X16) Description BMC_UART5_TX BMC_UART5_RX www.kontron.com // 31...

  • Page 32: Fw Spi Flash Socket For Bmc (X17)

    COM-HPC Server Evaluation Carrier - Rev. 1.0 FW SPI Flash Socket for BMC (X17) Figure 17: SPI Flash Socket for BMC Table 16: SPI Flash Socket for BMC Signal Name Signal Name MISO HOLD# MOSI BIOS Flash Socket (X28) Figure 18: BIOS Flash Socket (X28)

  • Page 33: 2X4 Sfp28 Cage (X29)

    ETH3 ETH7 Figure 21: 2x4 SFP28 Cage (X29) - Block Diagram (Detail) GPIO - General Purpose Input and Output (X6) The COM-HPC Client Evaluation Carrier offers 14 pins. Figure 22: GPIO Header (X6) Table 19: GPIO Header (X6) www.kontron.com // 33...

  • Page 34: Miscellaneous Header (X40)

    COM-HPC Server Evaluation Carrier - Rev. 1.0 Signal Name Signal Name +3.3VDC COMH_GPIO06 COMH_GPIO00 COMH_GPIO07 COMH_GPIO01 COMH_GPIO08 COMH_GPIO02 COMH_GPIO09 COMH_GPIO03 COMH_GPIO10 COMH_GPIO04 COMH_GPIO11 COMH_GPIO05 Miscellaneous Header (X40) Figure 23: Miscellaneous Header (X40) Table 20: Miscellaneous Header (X40) Signal Name Signal Name...

  • Page 35: Gp_Spi Header (X46)

    COM-HPC Server Evaluation Carrier - Rev. 1.0 GP_SPI Header (X46) Figure 24: GP_SPI Header (X46) Table 21: GP_SPI Header (X46) Signal Name Signal Name +3.3VSB COMH_SPI_CS2# COMH_SPI_MOSI COMH_SPI_CS3# COMH_SPI_MISO COMH_GP_SPI_CLK COMH_SPI_CS0# COMH_GP_SPI_ALERT# COMH_SPI_CS1# SUS_S3# / PS_ON Jumper (X39) Figure 25: SUS_S3# / PS_ON Jumper (X39)

  • Page 36: Enable Vcc_Hpc Jumper (X48)

    COM-HPC Server Evaluation Carrier - Rev. 1.0 Enable VCC_HPC Jumper (X48) Figure 27: Enable VCC_HPC Jumper (X48) Table 24: Enable VCC_HPC Jumper (X48) Jumper Position Description Enable VCC_HPC I2C0 Header (X50) The I2C Interface supports clock from 127Hz to 400kHz (limited by on board devices and capacitive loading) and can be configured in Setup.

  • Page 37: Smbus Header (X49)

    COM-HPC Server Evaluation Carrier - Rev. 1.0 Description SMBus Header (X49) Figure 30: SMBus Header (X49) Table 27: SMBus Header (X49) Description COMH_SMB_DAT COMH_SMB_CLK COMH_SMB_ALERT# SDP Header (X51) Figure 31: SDP Header (X51) Table 28: SDP Header (X51) Signal Name...

  • Page 38: Com-Hpc Picmg Eeprom Header (X52)

    COM-HPC Server Evaluation Carrier - Rev. 1.0 COM-HPC PICMG EEPROM Header (X52) Figure 32: COM-HPC PICMG EEPROM Header (X52) Table 29: SDP Header (X52) Signal Name Signal Name Parade I2C Debug Board Header (X55) Figure 33: Parade I2C Debug Board Header (X55)

  • Page 39: Atx Main Power Connector (X26)

    COM-HPC Server Evaluation Carrier - Rev. 1.0 ATX Main Power Connector (X26) Figure 35: ATX Main Power Connector (X26) Table 32: ATX Main Power Connector with 24 pins (X26) Signal Name Cable Colour Signal Name Cable Colour +3.3VDC Orange +3.3VDC Orange +3.3VDC...

  • Page 40: Rtc Battery Socket (X45)

    COM-HPC Server Evaluation Carrier - Rev. 1.0 RTC Battery Socket (X45) Figure 37: RTC Battery Socket Table 34: RTC Socket Signal Name COMH_VCC_RTC (+) GND (-) Button Switches (S1 S5) Figure 38: Button Switches Table 35: Control Buttons Button Switch...

  • Page 41: Key-M Socket (X30, X34)

    COM-HPC Server Evaluation Carrier - Rev. 1.0 Rapid shutdown requires disconnecting V_WIDE_S0_MOD and V_5V0_S5_MOD rails externally. M.2 Key-M Socket (X30, X34) X30 = M.2 Key M 2280 slot X34 = M.2 Key M 2242/2280 slot Figure 39: M.2 Slot Connector (X30, X34) Table 36: Pin Assignment M.2 Connector...
  • Page 42 COM-HPC Server Evaluation Carrier - Rev. 1.0 Signal Name Signal Name PEWAKE/NC REFCLKN/NC MFG1/TWI_DAT REFCLKP/N MFG2/TWI_CLK Key M Area SUSCLK V3.3-7 PEDET/CFG1 V3.3-8 V3.3-9 CFG2 www.kontron.com // 42...

  • Page 43: 6/ Electrical Specification

    COM-HPC Server Evaluation Carrier - Rev. 1.0 6/ Electrical Specification Supply Voltage 1x ATX main power 24-pin  1x ATX power 8-pin  2x ATX peripheral power  Power Supply Rise time  There must be a smooth and continuous ramp of each DC input voltage from 10% to 90% of its final set- ...
  • Page 44 COM-HPC Server Evaluation Carrier - Rev. 1.0 Figure 40: Power Diagram www.kontron.com // 44...

  • Page 45: 7/ Features

    COM-HPC Server Evaluation Carrier - Rev. 1.0 7/ Features Rapid Shutdown Button (SW5) The rapid shutdown button (SW5) has currently no function. LEDs and Indicators Indicators and LEDs indicate only presence of voltage on certain signal, but not necessarily a correct shape and level of the voltage.

  • Page 46: Sfp28 Leds

    7.2.3. Port 80 BIOS Debug Code Display COM-HPC Modules may support the export of Port 80 BIOS debug codes over a specific I2C link, the USB_PD_I2C_DAT and CLK bus, to a pair of Carrier based 7-segment displays. Figure 42: Port 80 BIOS Debug Code 7-Segment Display MSB: Most Significant Bit ...

  • Page 47: 8/ Com-Hpc Connector Pin-Out List

    - Rev. 1.0 8/ COM-HPC Connector Pin-out List Figure 43: COM-HPC Connector J1 and J2 To protect external power lines of peripheral devices, make sure that: the wires have the right diameter to withstand the maximum available current the enclosure of the peripheral device fulfills the fire-protection requirements of IEC/EN60950.
  • Page 48 COM-HPC Server Evaluation Carrier - Rev. 1.0 Row A Row B Row C Row D ETH5_RX+ VCC_5V_SBY ETH1_TX+ USB67_OC# ETH2_RX- ETH6_RX- USB45_OC# ETH2_TX- ETH2_RX+ ETH6_RX+ USB23_OC# ETH2_TX+ USB01_OC# ETH3_RX- ETH7_RX- (SML1_CLK) * ETH3_TX- ETH3_RX+ ETH7_RX+ (SML1_DAT) * ETH3_TX+ (PMCALERT#)* USB3_SSTX-...

  • Page 49: Table 40: Pin-Out List Connector J2

    COM-HPC Server Evaluation Carrier - Rev. 1.0 Row A Row B Row C Row D PCIe09_TX+ PCIe01_RX+ PCIe10_RX- PCIe02_TX- PCIe10_TX- PCIe10_RX+ PCIe02_RX- PCIe02_TX+ PCIe10_TX+ PCIe02_RX+ PCIe11_RX- PCIe03_TX- PCIe11_TX- PCIe11_RX+ PCIe03_RX- PCIe03_TX+ PCIe11_TX+ PCIe03_RX+ PCIe12_RX- PCIe04_TX- PCIe12_TX- PCIe12_RX+ PCIe04_RX- PCIe04_TX+ PCIe12_TX+...
  • Page 50 COM-HPC Server Evaluation Carrier - Rev. 1.0 Row E Row F Row G Row H (RSVD)* ETH5_SDP (FUSA_ALERT#)* (RSVD)* ETH6_SDP (FUSA_SPI_CS#)* (RSVD)* (RSVD)* ETH7_SDP (FUSA_SPI_CLK)* (RSVD)* (RSVD)* ETH4-7_I2C_CLK (FUSA_SPI_MISO)* (RSVD)* ETH4-7_I2C_DAT (FUSA_SPI_MOSI)* (RSVD)* (RSVD)* ETH4-7_INT# (FUSA_SPI_ALERT)* (RSVD)* (RSVD)* ETH4-7_MDIO_CLK (FUSA_VOLTAGE_ERR#)*...
  • Page 51 COM-HPC Server Evaluation Carrier - Rev. 1.0 Row E Row F Row G Row H PCIe16_TX+ PCIe24_RX+ PCIe17_RX- PCIe25_TX- PCIe17_TX- PCIe17_RX+ PCIe25_RX- PCIe25_TX+ PCIe17_TX+ PCIe25_RX+ PCIe18_RX- PCIe26_TX- PCIe18_TX- PCIe18_RX+ PCIe26_RX- PCIe26_TX+ PCIe18_TX+ PCIe26_RX+ PCIe19_RX- PCIe27_TX- PCIe19_TX- PCIe19_RX+ PCIe27_RX- PCIe27_TX+ PCIe19_TX+...
  • Page 52 COM-HPC Server Evaluation Carrier - Rev. 1.0 Row E Row F Row G Row H PCIe54_TX+ PCIe62_RX+ PCIe55_RX- PCIe63_TX- PCIe55_TX- PCIe55_RX+ PCIe63_RX- PCIe63_TX+ PCIe55_TX+ PCIe63_RX+ PCIe_REFCLK2- (PCIe_REFCLKIN0-)* PCIe_REFCLK1- PCIe_REFCLK2+ PCIe_REFCLK3- (PCIe_REFCLKIN0+)* PCIe_REFCLK1+ PCIe_REFCLK3+ PCIe_CLKREQ3# (PCIe_REFCLKIN1-)* PCIe_CLKREQ1# ETH0-3_PRSNT# ETH0-3_I2C_CLK (PCIe_REFCLKIN1+)* PCIe_CLKREQ2#...

  • Page 53: 9/ Technical Support

    RMA number. The buyer accepts responsibility for all freight charges for the return of goods to Kontron's designated facility. Kontron will pay the return freight charges back to the buyer's location in the event that the equipment is repaired or replaced within the stipulated warranty period. Follow these steps before returning any product to Kontron.
  • Page 54 The goods for repair must be packed properly for shipping, considering shock and ESD protection. Goods returned to Kontron Europe GmbH in non-proper packaging will be considered as customer caused faults and cannot be accepted as warranty repairs. Include the RMA-Number with the shipping paperwork and send the product to the delivery address provided in the RMA form or received from Kontron RMA Support.

  • Page 55: 10/ List Of Acronyms

    PC-AT system that is used to initialize system components before handing control over to the operating system Baseboard Management Controller located on Carrier for COM-HPC®, if implemented COM-HPC COM-HPC® - Computer-on-Module for High Performance Computing ElectroMagnetic Compatibility...

  • Page 56: About Kontron

    Rev. 1.0 About Kontron Kontron is a global leader in IoT/Embedded Computing Technology (ECT). Kontron offers individual solutions in the areas of Internet of Things (IoT) and Industry 4.0 through a combined portfolio of hardware, software and services. With its standard and customized products based on highly reliable state-of-the-art technologies, Kontron provides secure and innovative applications for a wide variety of industries.
