Immediate Function Activation through the SMART MATRIX
WINDINGFEEDER Buttons

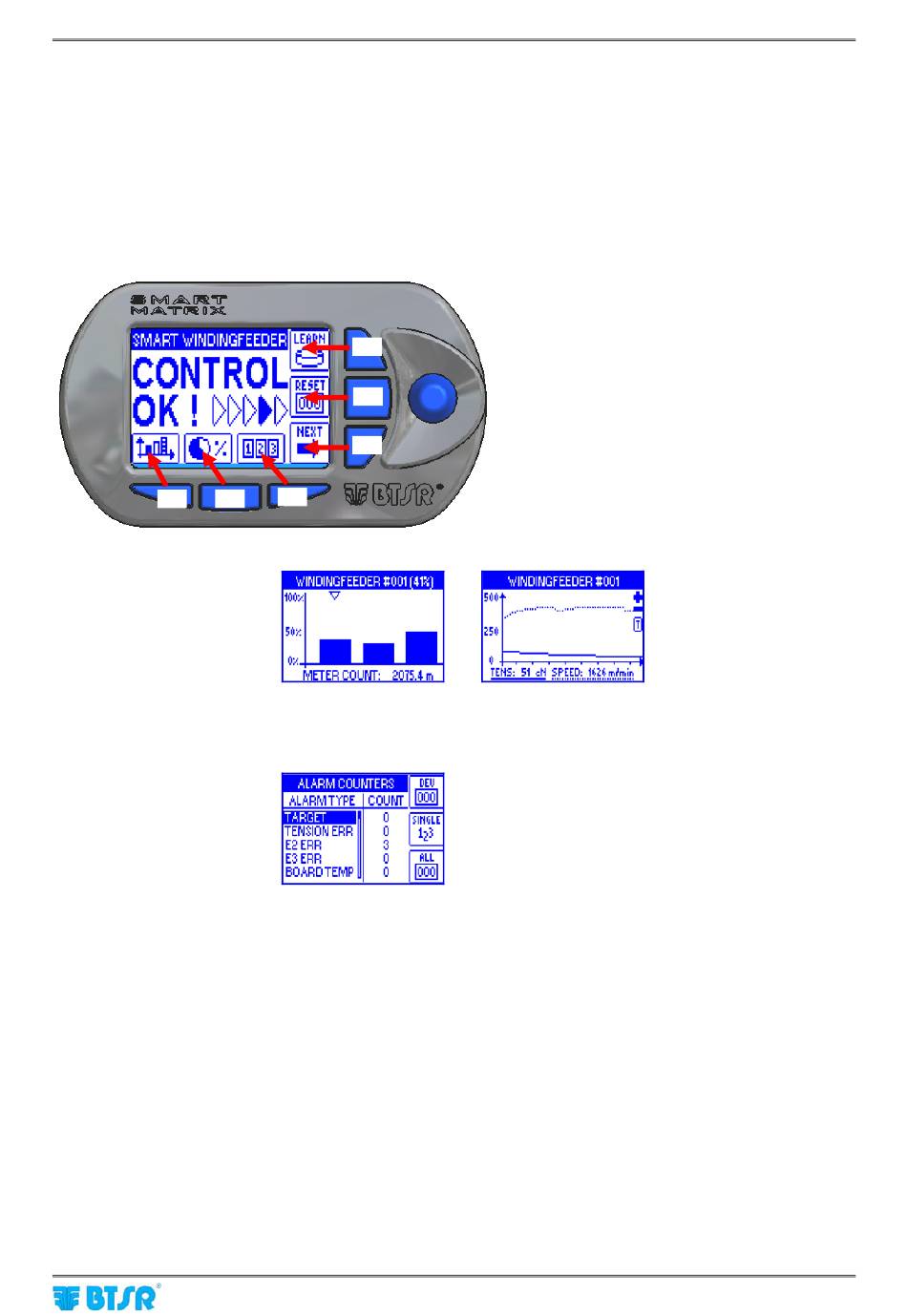

The 6 blue buttons (B1 ~ B6) allow you to directly activate some system functions without passing through
the menu items. Such functions are indicated by the icons associated with the buttons, as shown on the
following figure.
The detailed explanation of the various functions will be provided on next paragraphs.
The following examples are only provided to summarize the Button → Function association.
Within some configuration/parameter setting functions, the B1 ~ B6 buttons may also perform a "shortcut"
function, which will be explained each time.
B1 B2
B1 = Graphics
B2 = Efficiency Data
B3 = Alarm counters:
B4 = LEARN activation
B5 = Alarm Reset
B6 = Next Function
B4
B5
B6
B3
Function currently not implemented
Function currently not implemented
General reset of alarm/error signaling
It allows viewing further information (for instance in case of multiple errors
SMART MATRIX WINDINGFEEDER
SMART MATRIX WINDINGFEEDER Operation
Immediate function activation buttons.
