btsr SMART MATRIX WINDINGFEEDER Operating Manual page 34

Checking the SMART MATRIX WINDINGFEEDER I/O Signals
This function allows you to view the status of the external interface signal supplied to SMART MATRIX
WINDINGFEEDER terminal (PRX, ZPX, STC).
Checking the SMART MATRIX WINDINGFEEDER I/O Signals
SETUP
Enter the SETUP
Select SERVICE.
Select I/O CHECK

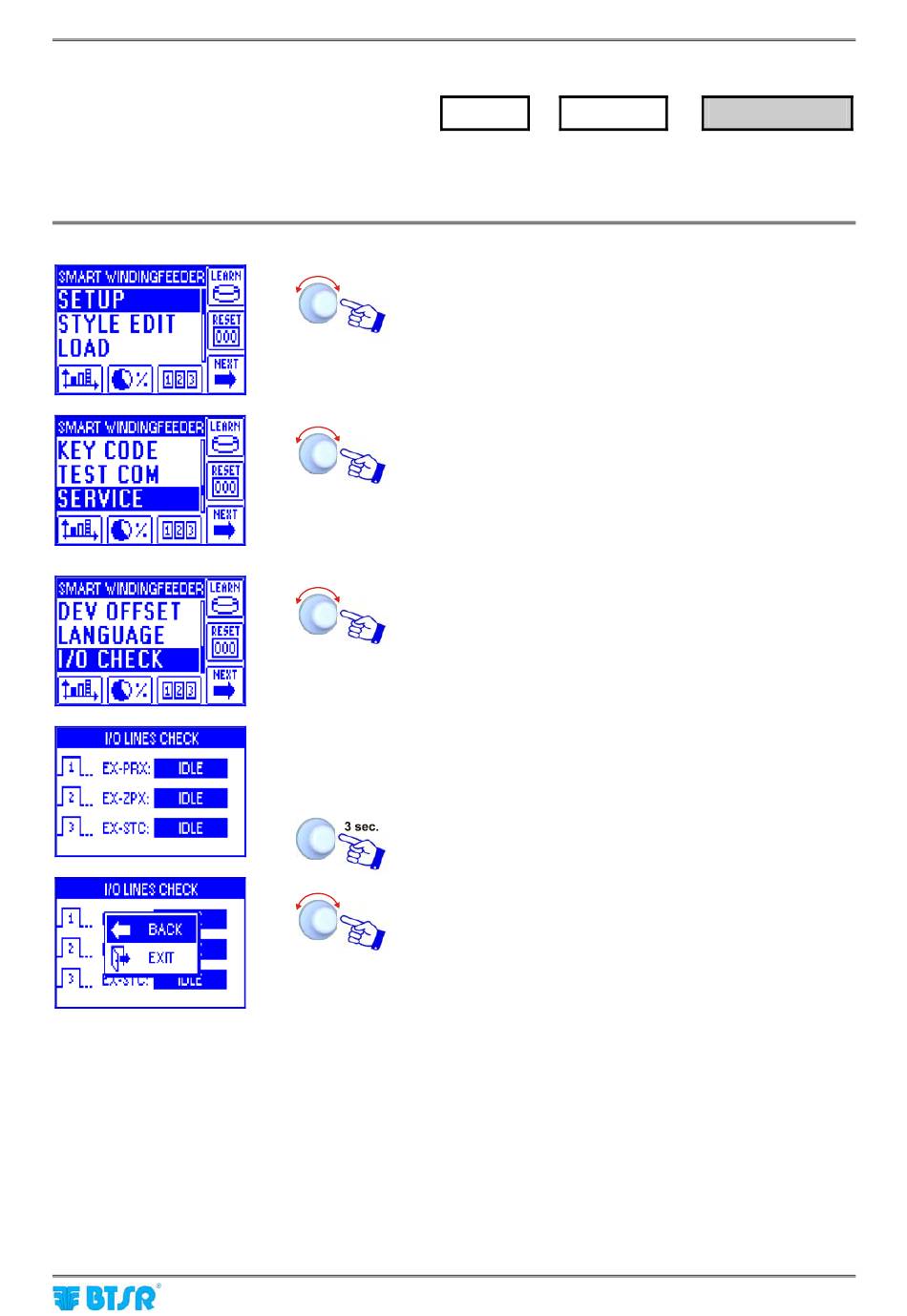

This screen page shows the status of the external interface
signals (IDLE, STOP, etc.)
To leave the function
EXIT to return to
SMART MATRIX WINDINGFEEDER
→ SERVICE →
menu.
SERVICE menu.
I/O CHECK
