SMART MATRIX ↔ WINDINGFEEDER/PC Interface

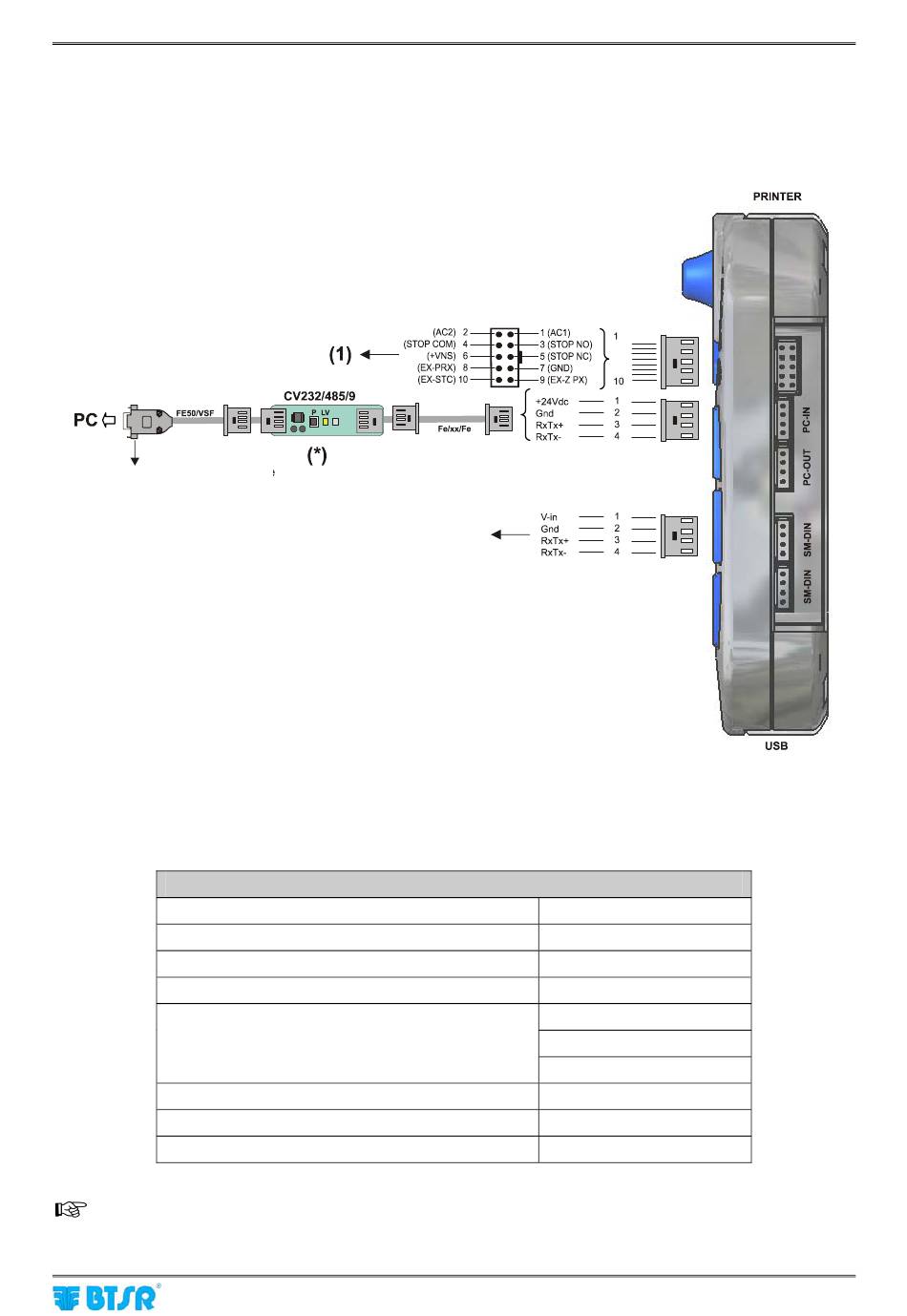

The following figure shows the electrical interface (pin assignment) of SMART MATRIX terminal.
The "Printer" and "USB" connectors are not currently used.
Software upgrading port
(*) Confirm that the LV green Led shows a double flashing (communication speed on
Cv232/485/9 = 115 kbps).
If necessary press the small P button.
Technical characteristics of SMART MATRIX WINDINGFEEDER terminal
Power supply voltage
Current absorption
Protection fuse (SMART MATRIX)
Protection fuse (Sensor power supply)
Inputs
Operating temperature range
Storage temperature
Overall dimensions
For more details about the connection of WINDINGFEEDER devices, please refer to Section 2 of
WINDINGFEEDER Operating Manual.
SMART MATRIX
Power supply from WINDINGFEEDER
SMART MATRIX WINDINGFEEDER
WINDINGFEEDER/PC Interface
24 VDC ± 10%
100 mA Max
1,5 A
1,5 A
0 – 24 VDC
VIL Max 1,2 VDC
VIH Min 5 VDC
+10° / +60° C
-25° / +85° C
140x80x31 mm
- 2 -
