Maintenance
•

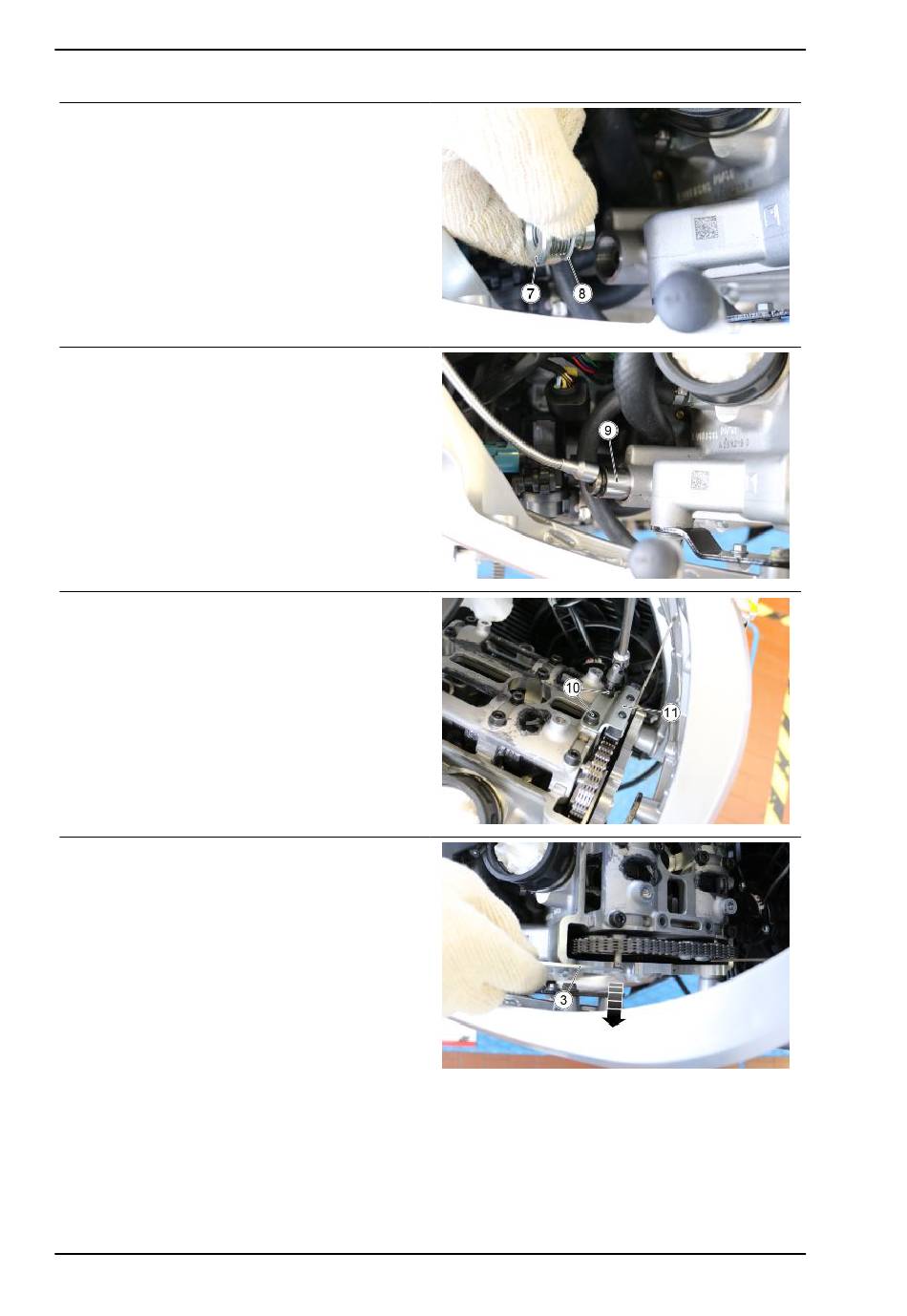

Unscrew and remove the special
screw (7) complete with metal washer
(8).
•
Using a magnet, extract the chain ten-
sioner (9).
•
Undo and remove the two screws (10)
and the plate (11) complete with slider.
•
Remove the third pin (3).
MAIN - 70
RS 660 - Tuono 660
