APRILIA Tuono 660 2021 Service Station Manual page 223

RS 660 - Tuono 660
Pos. Description
1 Crankcase halves mating screws
2 Crankcase halves mating threaded
hex screws
3 Crankcase halves mating screws
4 Crankcase halves mating screws
5 Crankcase halves mating flanged
hex screws
6 Crankcase halves mating flanged
hex screws
7 Crankcase halves mating threaded
hex screws
8 Pistons lubrication jets SHC fixing
screw
9 Bearings stopper countersunk hex
head screws
10 Stud bolts

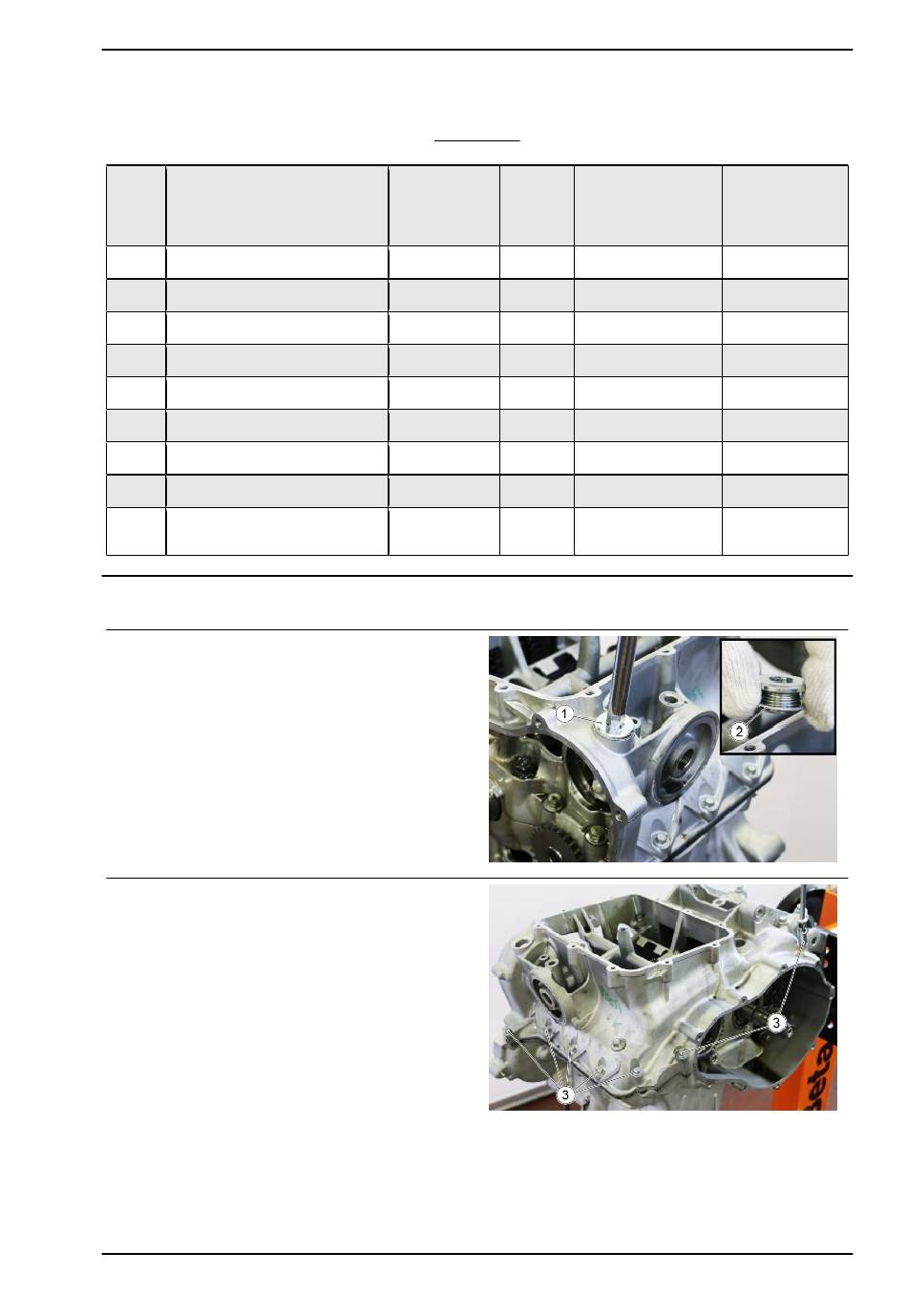

Splitting the crankcase halves
To proceed with the opening of the crankcase, it is
necessary to remove the head complete with tim-
ing system, clutch, rotor, filter and oil pan. At this
point, proceed as described:
•
Remove the cap (1) complete with
washer (2), to allow to unscrew the fas-
tening screw of the crankcase located
inside.
•
Remove the seven external M6 screws
(3).
C
RANKCASE
Type Quantity
M10x65 6 1) 15 Nm (11,06 lbf ft) -
2) 20 Nm+30° (14,75 lbf
ft+30°) - 3) 30° (result-
ing torque approx 65
M8x45 2
M8x50 9
M6x70 1
M6x40 3
M8x60 4
M6x30 4
M5x14 2 5,4-6,6 Nm (3,98-4.87
- 3 9-11 Nm (6.64-8.11 lb
M10 6 18-22 Nm (13.28-16.23
lbf ft) - H 63,5 +/-0,5 mm
Torque
Lubricate with oil
Nm (47,94 lbf ft)
22,5-27,5 Nm Lubricate with oil
(16,60-20,28 lb ft)
22,5-27,5 Nm Lubricate with oil
(16,60-20,28 lb ft)
10,8-13,2 Nm
(7,97-9,74 lb ft)
10,8-13,2 Nm
(7,97-9,74 lb ft)
22,5-27,5 Nm Lubricate with oil
(16,60-20,28 lb ft)
10,8-13,2 Nm
(7,97-9,74 lb ft)
lb ft)
Pre-impregnated
ft)
Pre-impregnated
(2.50 +/- 0.02 in)
Engine
Notes
-
-
-
-
ENG - 223
