3. Product Description

The ClickFit mounting system consists of mounting brackets, mounting rails (double-layer cross-cross arranged) and the
necessary installation materials to mount the solar panels in portrait setup on the roof. The ClickFit mounting system for
corrugated iron can be used for all types of corrugated roofing, including the common fiber cement steel and corrugated
iron.
Mounting system
The vertical mounting rails are secured to the roof structure by means of hanger bolts. The horizontal mounting rails are
mounted cross-cross arranged onto the vertical mounting rails.
Height differences in the roof can easily be taken care of by means of the adjustment of the hanger bolts. At the location of
the hanger bolt EPDM rubber seal is used as a water barrier.
Attachment of the mounting rails
The vertical mounting rails are attached to the hanger bolts using a M8 screw connection. The horizontal mounting rail is
mounted onto the vertical mounting rails using cross connectors and mounting screws.
Attachment of the panels
The solar panels are attached by means of universal module clamping plates, end clamps
and mounting screws. The mounting screws are screwed directly to the mounting rail in which is a special thread is
installed.

4. Parts overview

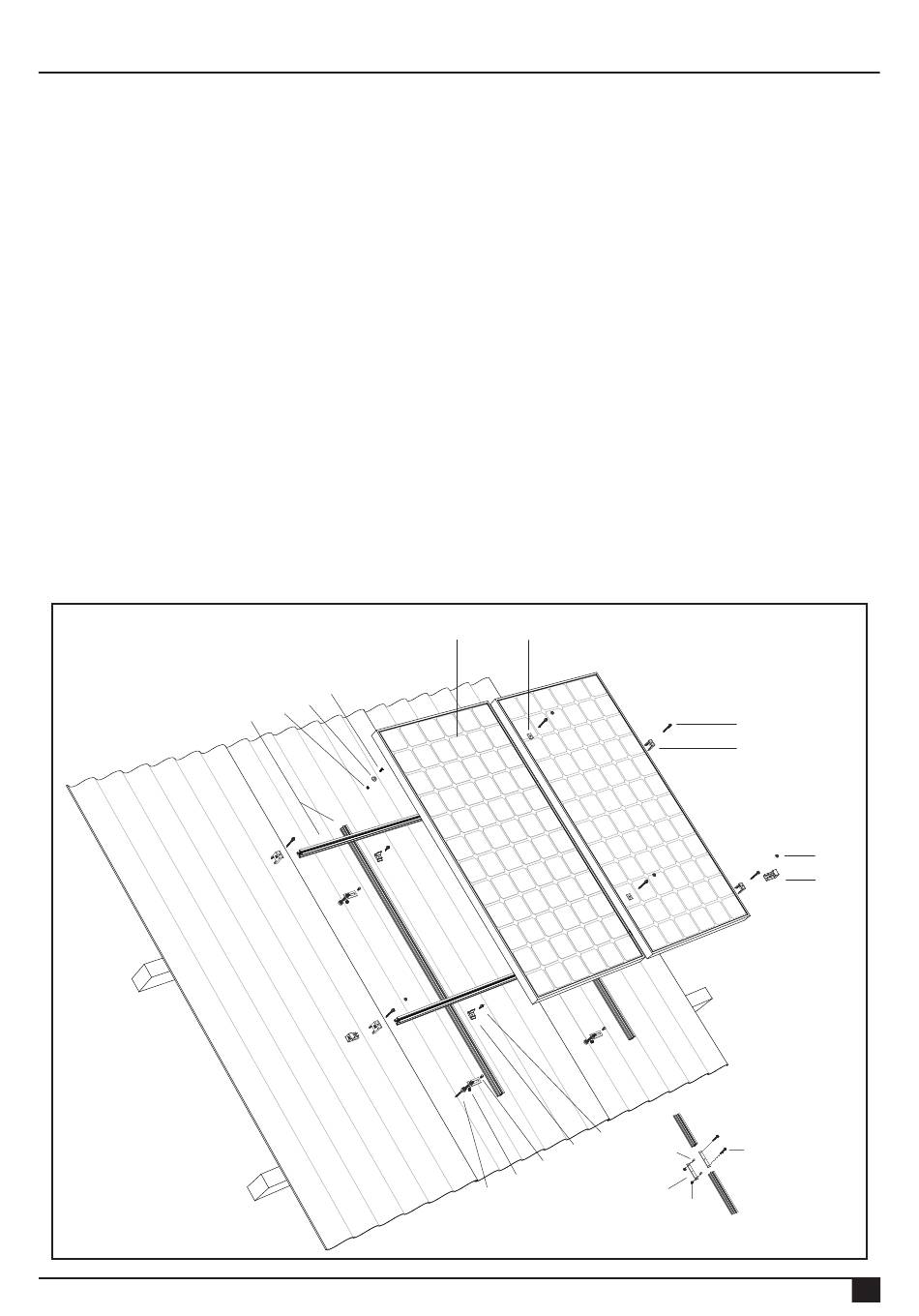

4.1 Exploded-view

Rev. 10.06.15
2
4 3
5
MANUAL MOUNTING SYSTEM FOR CORRUGATED ROOF
1 14
11
10
7
8
9
13
12
16
15
6A
7
6
8
03
