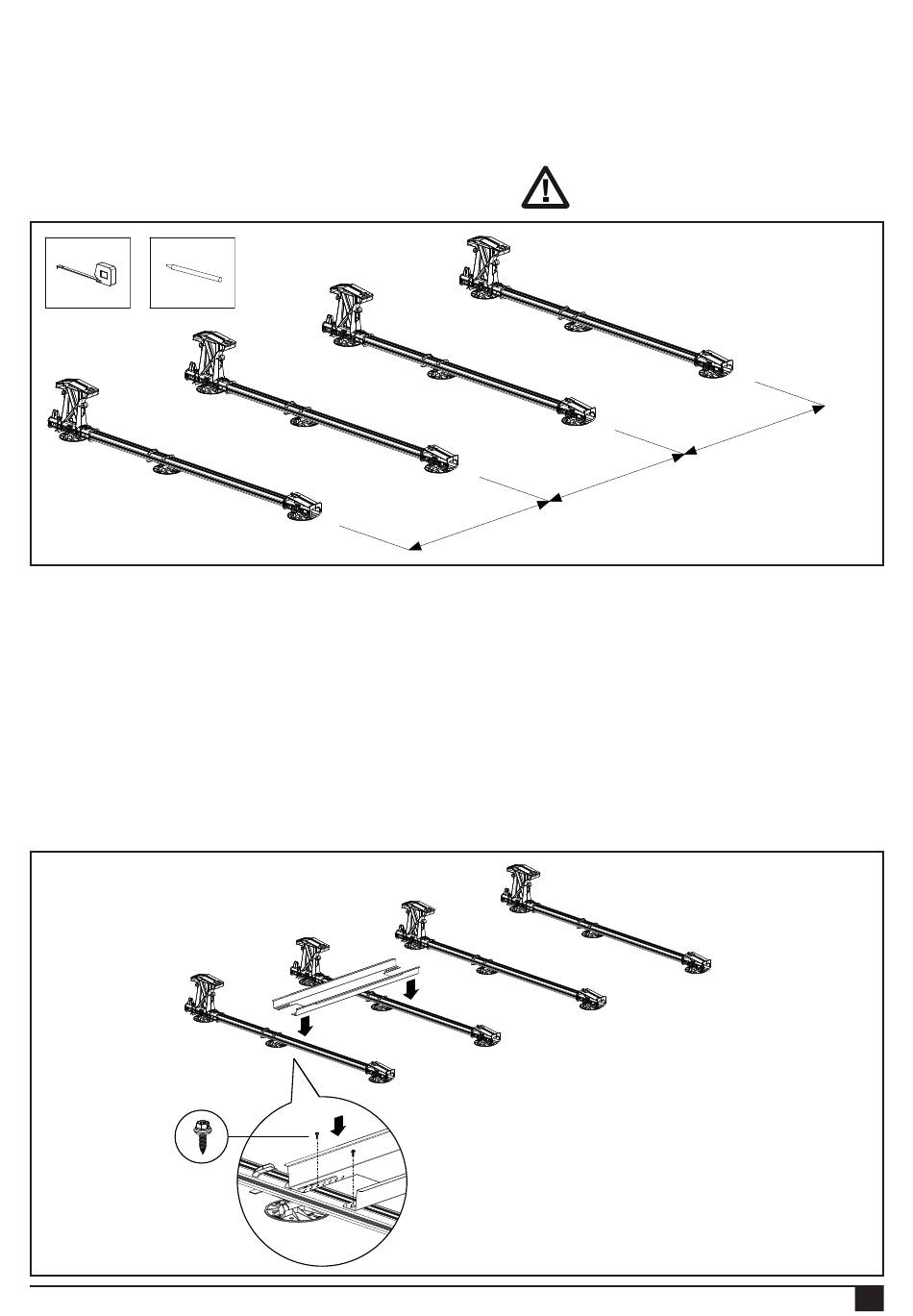

6.7 Positioning FlatFix Fusion segments

You determine the position of the FlatFix Fusion segments based on the position of the solar panels on the roof.

Distribute the FlatFix Fusion segments evenly along the line where the solar panels are to be installed.

Mark with chalk or marker the place on the roof where the FlatFix Fusion segments are to be placed.

Ensure that the FlatFix Fusion segments are aligned with each other.

The ballast positions are determined using the calculator. Place the ballast container at the points indicated by the

calculator. The following instructions focus exclusively on the standard perimeter ballast container installation.

NOTE! For ballast configurations, see annex section 7.4.

Place the first ballast container on the perimeter position on the base profile, against the roof support adapter. The adapter

also serves as a spacer for the ballast container to be placed.

NOTE! Ensure that the ballast container of the first FlatFix Fusion segment protrudes a maximum of 10 mm relative to the

base profile. The ballast container must then be screwed onto the base profiles with the self-tapping sheet metal screw 6.0

x 25 mm SW10 HEX/T30 (article no. 1008085) through one of the pre-punched holes in the ballast container.

Ensure that the FlatFix Fusion segments are aligned with each other.

6x25 mm

Article no.:

1008085

Rev. 08.08.23

MANUAL FOR FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS

size solar panel +8mm
