INSTRUCTIONS FOR JACKING AND POSITIONING VEHICLE

1.

Safety prerequisites

(a)
(b)
2.

Procedure

(a)
(b)
(c)
CD373
Use only duty-rated jacks and jack stands. Floor jacks should be rated for a minimum
of two tons. Jack stands should be rated for at least one ton each.
Tractor should be parked on flat, high quality concrete surface before jacking.
WARNING: DO NOT ATTEMPT TO PERFORM MAINTENANCE ON
JACKED TRACTOR IF PARKED ON SOFT OR WET SURFACE.
PERSONAL INJURY, POSSIBLE DEATH AND/OR DAMAGE TO
TRACTOR CAN RESULT.
WARNING: IMPROPER JACKING CAN RESULT IN PERSONAL
INJURY, POSSIBLE DEATH AND/OR DAMAGE TO THE TRACTOR.
Engage the parking brake and chock the wheels.
Position floor jack under front or rear bumper and raise the tractor.
Position jack stands under the bumper and lower the unit onto the jack stands.

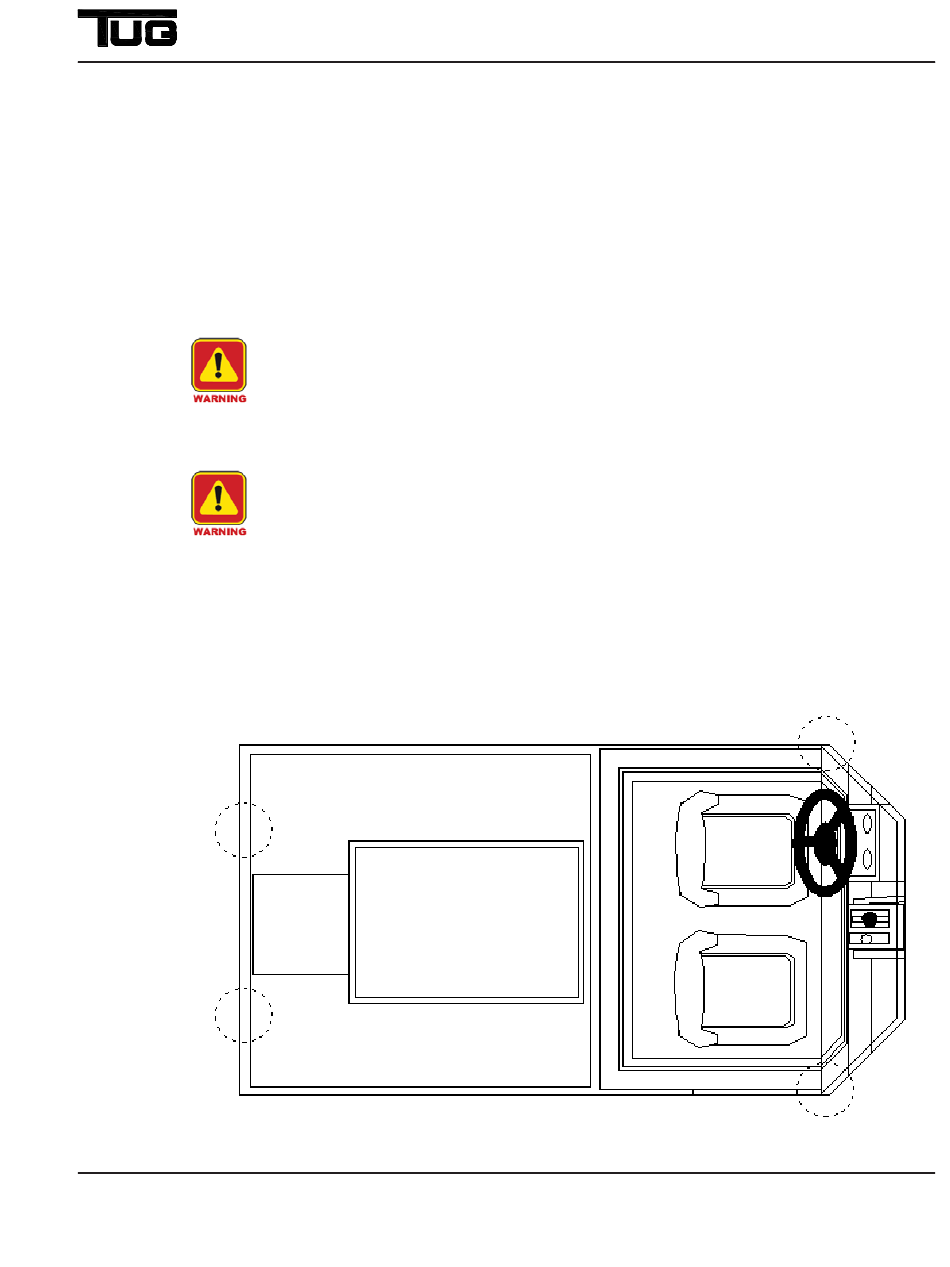

Figure 1-2. Jack Stand Locations
MZ Tow Tractor
Chapter 2
Section 1
2-1-9
Orig
