Configure The Paging Groups (Pgroups) Parameters - CyberData 011146 Operation Manual

2.6.8 Configure the Paging Groups (PGROUPS) Parameters

Note
1. Click on the PGROUPS button to open the PGROUPS page. See
CyberData Corporation
A PGROUP is a way of assigning multicast addresses and port numbers when configuring
multicast paging speakers.
To assign a multicast address, you must first configure the speakers that you want to put into
a paging zone by entering a particular multicast address and port number combination in the
web configuration for these speakers.

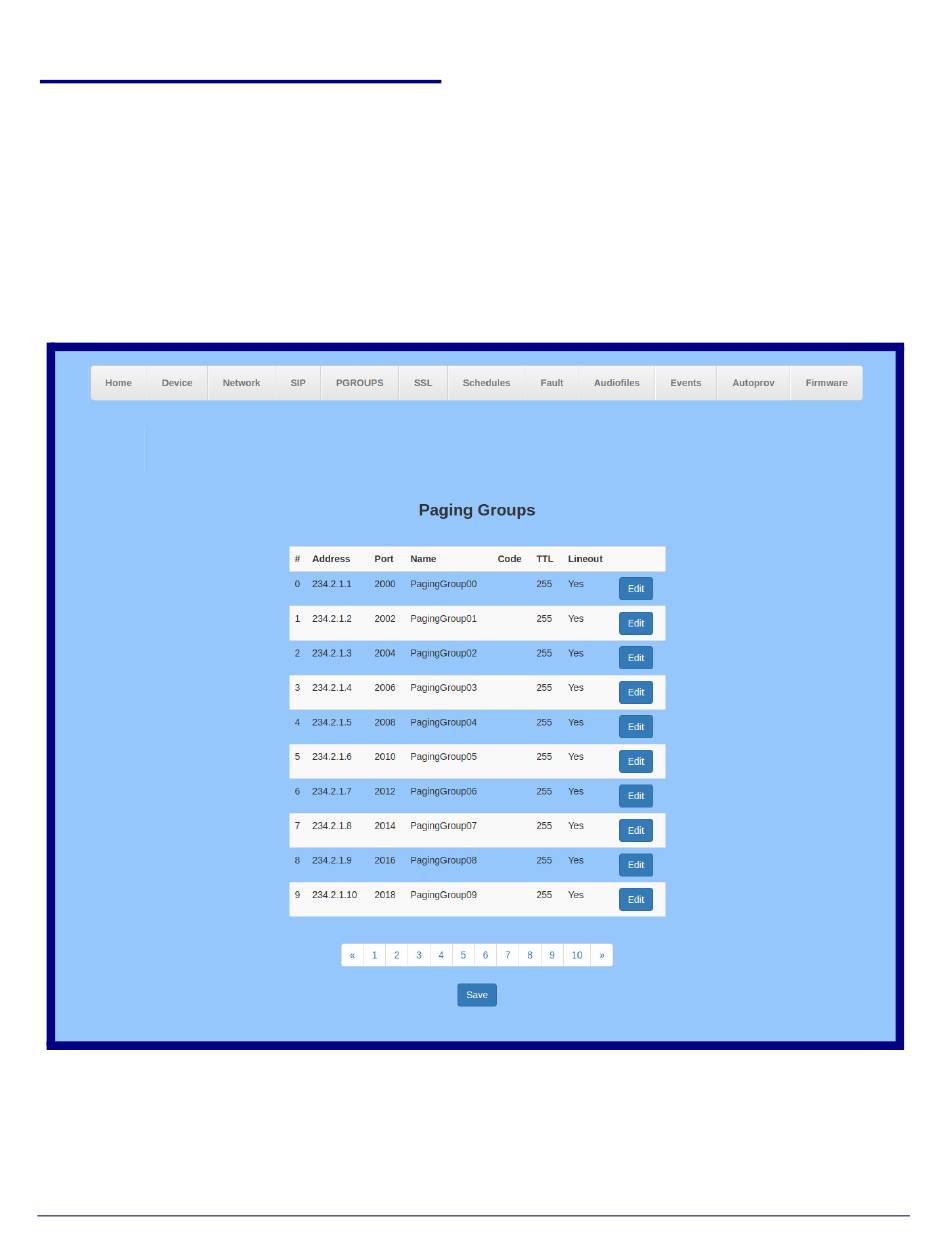

Figure 2-19. PGROUPS Page
CyberData Paging Server
Configure the Paging Groups (PGROUPS) Parameters
931803A
Setting Up the SIP Paging Server
Figure 2-19.
Operations Guide
38
