CyberData 011146 Installation Quick Reference

Mounting
You have the option to use the following mounting template to mark, and then drill two 3/16" (0.1875") holes for the
mounting anchors.
To install and mount the Paging Server:
1. Install the mounting anchors in the holes, and position the Paging Server mounting holes over the anchors.
2. Use the two #6 sheet metal screws to secure the Paging Server onto the mounting surface.
Drill Hole Size for Anchor Installation: 3/16" (0.1875")
Contacting CyberData
Corporate Headquarters
Sales: 831-373-2601 ext. 334
CyberData Corporation
Support: 831-373-2601 ext. 333
3 Justin Court
Support Website:
Monterey, CA 93940, USA
RMA Department: 831-373-2601 ext. 136
RMA Email: RMA@CyberData.net
Phone: 831-373-2601
Fax: 831-373-4193 RMA Status:
http://www.cyberdata.net/ Warranty Information:
© 2020, CyberData Corporation, ALL RIGHTS RESERVED
http://support.cyberdata.net/
http://support.cyberdata.net/
http://support.cyberdata.net/
931801A Quick Reference
Installation Quick Reference

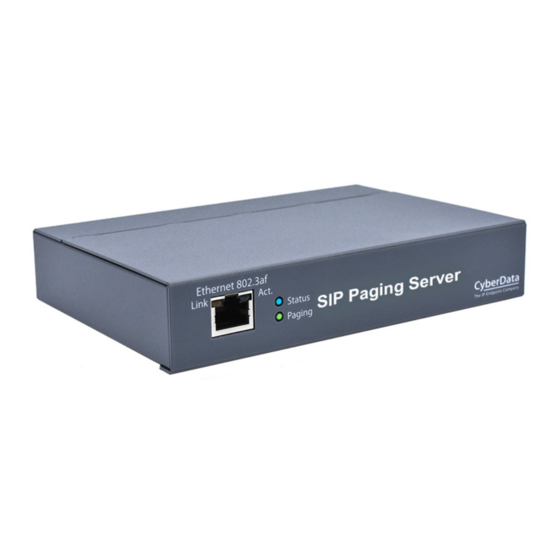

The IP Endpoint Company SIP Paging Server
SIP Compliant
011146
The SIP Paging Server enables access to existing analog paging systems through a VoIP phone system. This interface
supports standard amplifier connections and supports paging to multiple zones from a VoIP phone.
Getting Started
• Be sure that you have received all the parts described in the
• Download the Operation Guide for the SIP Paging Server at the following website:
http://www.cyberdata.net/products/011146/
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Parts List
(1) SIP Paging Server
(1) Mounting Kit
(2) #6 x1.25-inch, PanHead, Phillips Sheet Metal Screw
Quick Reference
Parameter Factory Default Setting
IP Addressing DHCP
a
IP Address 10.10.10.10
Web Access Username admin
Web Access Password admin
a
Subnet Mask 255.0.0.0
a
Default Gateway 10.0.0.1
a. Default if there is not a DHCP server present.
Parts List section.
(1) Mounting Template (see the last page)
(2) Plastic Anchors
931801A © 2020, CyberData Corporation, ALL RIGHTS RESERVED
