2.3.8 Confirm that the SIP Paging Server is Up and Running

The LEDs on the front of the SIP Paging Server verify the unit's operations.
When you plug in the Ethernet cable or power supply:
• The GREEN/BLUE
GREEN Paging LED both blink at a rate of 10
times per second during the initial network
setup.
• The round, GREEN/BLUE
front of the SIP Paging Server comes on
indicating that the power is on. Once the device
has been initialized, this LED blinks at one
second intervals.
• The square, YELLOW
Ethernet port indicates that the network
connection has been established at 100Mbit
speed.
• The GREEN Paging LED comes on after the
device is booted and initialized. This LED blinks
when a page is in progress. You can disable
Beep on Initialization on the Device
Configuration page.

2.3.8.1 Verify Network Activity

The square,
CyberData Corporation

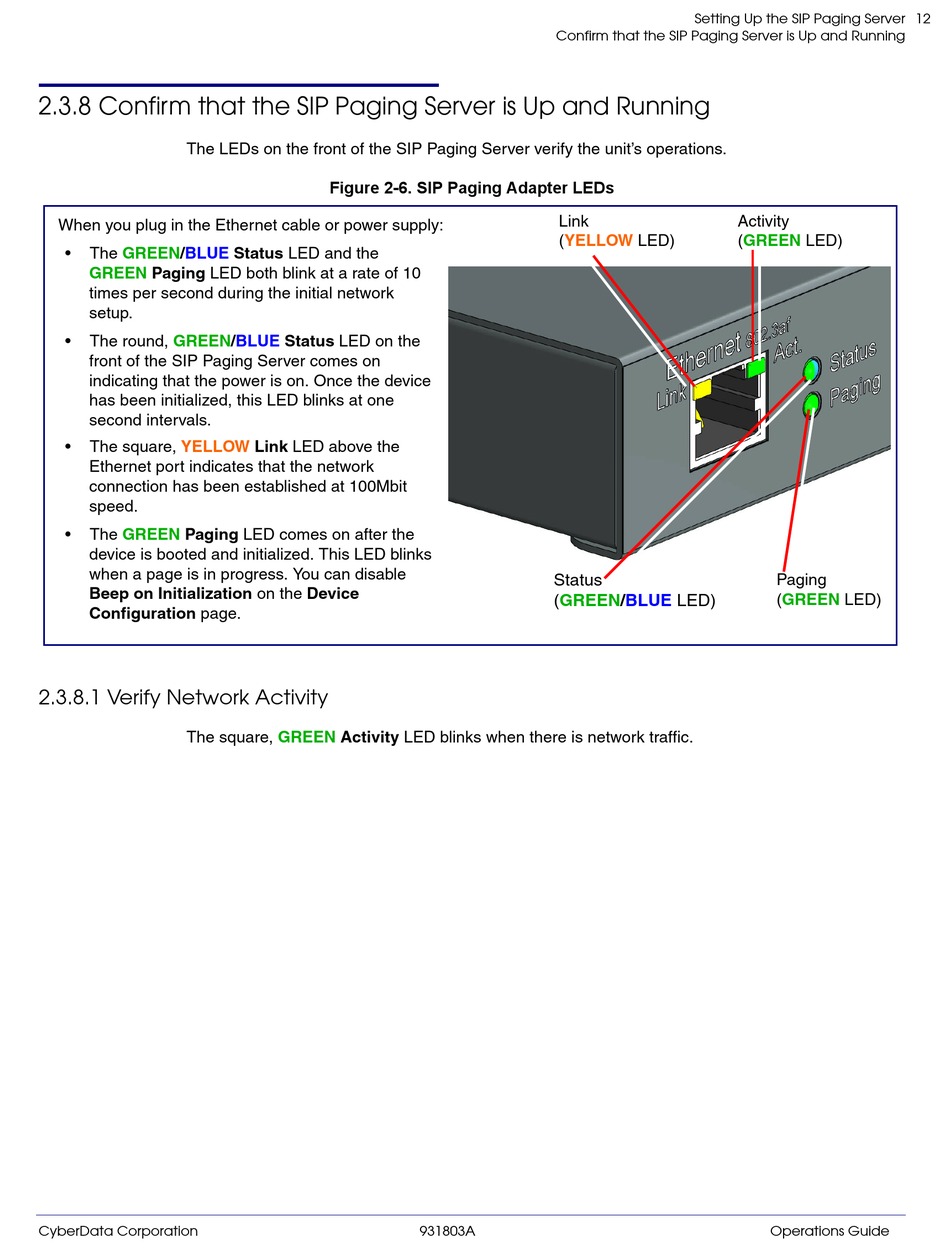

Figure 2-6. SIP Paging Adapter LEDs
Status LED and the
Status LED on the
Link LED above the
GREEN Activity LED blinks when there is network traffic.
Confirm that the SIP Paging Server is Up and Running
Link
(YELLOW
Status
(GREEN/BLUE
931803A
Setting Up the SIP Paging Server
Activity
LED) (GREEN LED)
Paging
(GREEN
LED)
Operations Guide
12
LED)
