CyberData SIP Paging Server Connections

The IP Endpoint Company
Caution
Equipment Hazard: All equipment should be powered down prior
to making wiring connections and changing switch positions.
GENERAL ALERT
Pyle Home PCM30A Amplifier
Notes
1. Power off the amplifier and reduce the volume by turning the Paging Output Level counter-
clockwise before connecting the CyberData device and powering the amp back on.
2. Ensure that the amplifier is powered off prior to connecting the CyberData device and turn
the dial for Paging Level Output fully counter-clockwise.
3. Connect the CyberData device, and then power the amplifier back on.
4. Slowly raise the Paging Level Output (clockwise) to adjust the volume during testing.
2 conductor, shielded speaker wire is recommended.

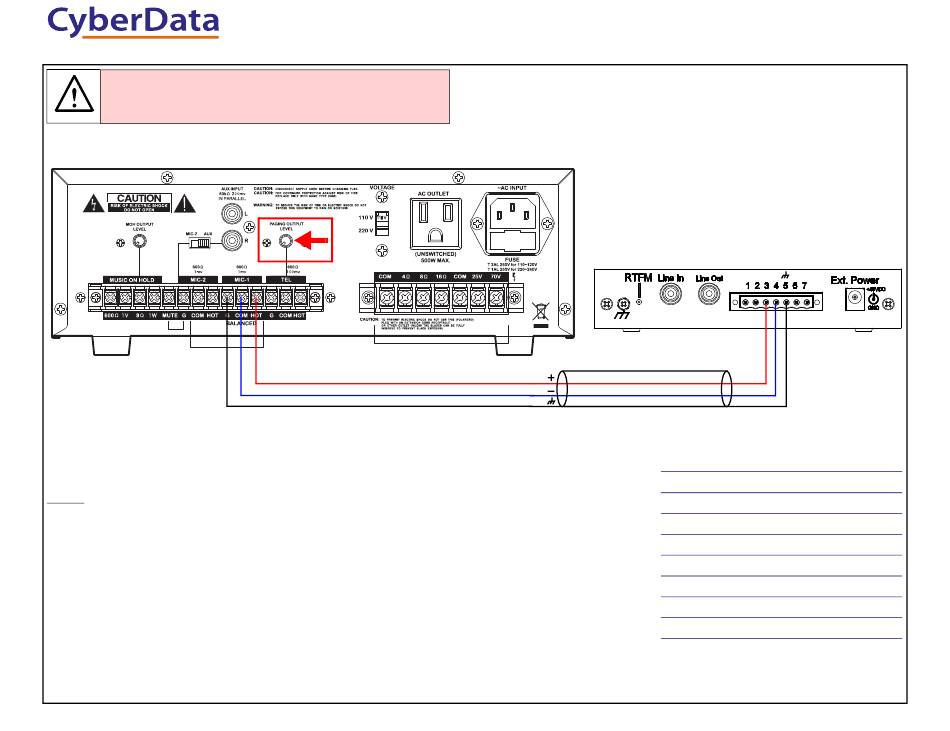

Pyle Home PCM30A Amplifier to SIP Paging Server Connections
SIP Paging Server Connections
Balanced
Hi
Lo
Shield/Drain Wire Keep as short as possible
930996B
+ - +
-
Hi
Lo
Shield/Drain Wire
s
Page Port Connections
Pin Description
1 Fault Sense Input (Common).
2 Fault Sense Input (Sense).
3 Positive 600-Ohm Audio Output
4 Negative 600-Ohm Audio Output
5 Audio Ground Reference.
b
6 Relay Contact - Common
7 Relay Contact - Normally Open
a.The 600-Ohm audio output of the page port is
also suited for interfaces with lower input
impedances.
b.1 Amp at 30 VDC for continuous loads.
a
a
b
